NE200&300 Quick Start Guide
12
3.2 NE300 Product Outline, Mounting Dimension
（
Unit
：
mm
）

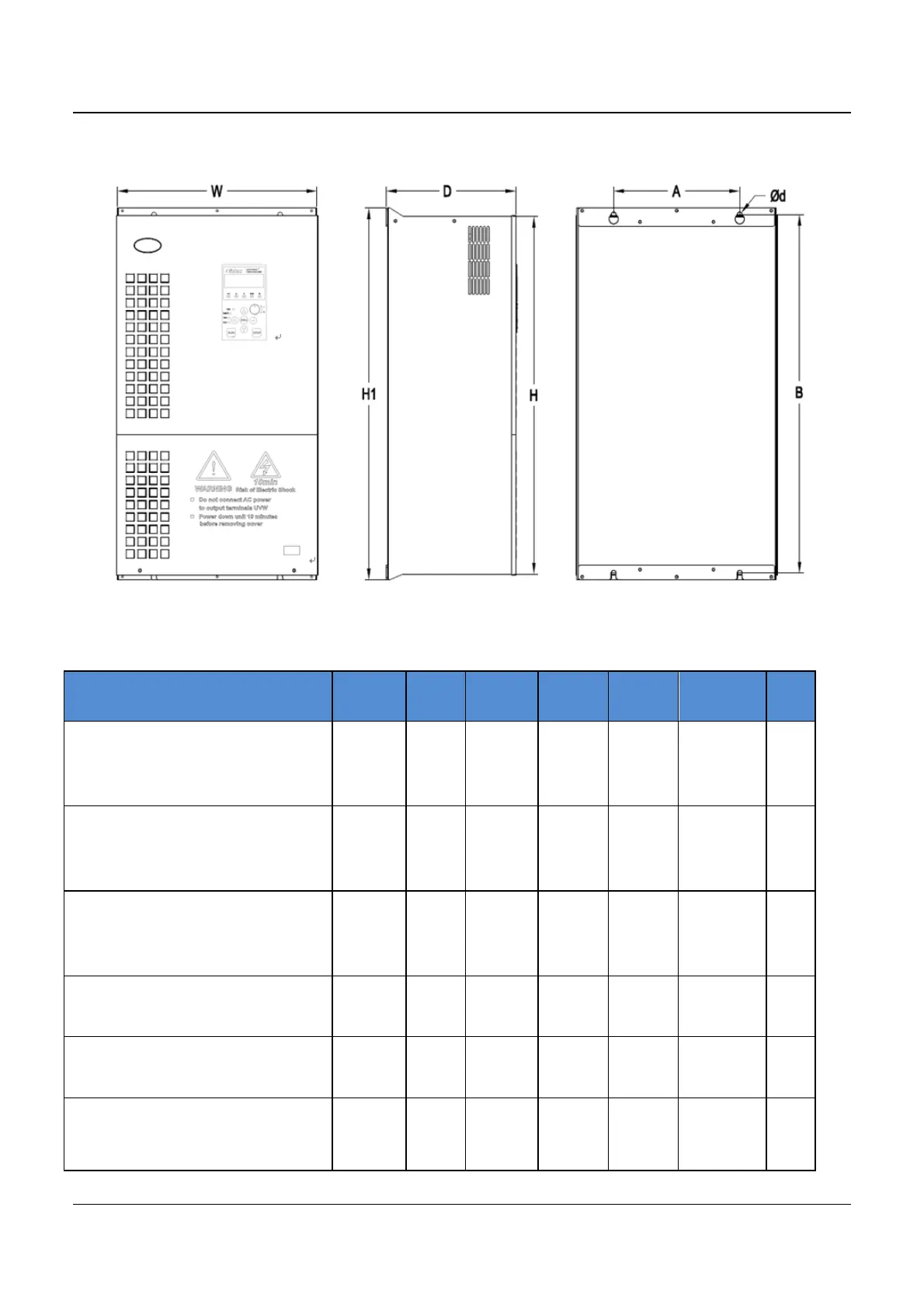

Fig.3-2 Product Outline, Mounting Dimension Schematic diagram
Inverter Model H W D H1 A B d
NE300-4T0015G/0022PB
NE300-4T0022G/0040PB
NE300-4T0040G/0055PB
210 133 180 238 108 225 7
NE300-4T0055G/0075PB
NE300-4T0075G/0110PB
NE300-4T0110G/0150PB
258 155 180 285 120 270 7
NE300-4T0150G/0185PB
NE300-4T0185G/0220PB
NE300-4T0220G/0300PB
310 192 186 340 150 323 7
NE300-4T0300G/0370P
NE300-4T0370G/0450P
425 270 200 450 200 430 7
NE300-4T0450G/0550P
NE300-4T0550G/0750P
535
320
248 560 240 540 9
NE300-4T0750G/0900P
NE300-4T0900G/1100P
NE300-4T1100G/1320P
640 380 248 665 240 640 9
