NE200&300 Quick Start Guide
11
3. Product Installation
3.1 NE200 Product Outline, Mounting Dimension
（
Unit
：
mm
）

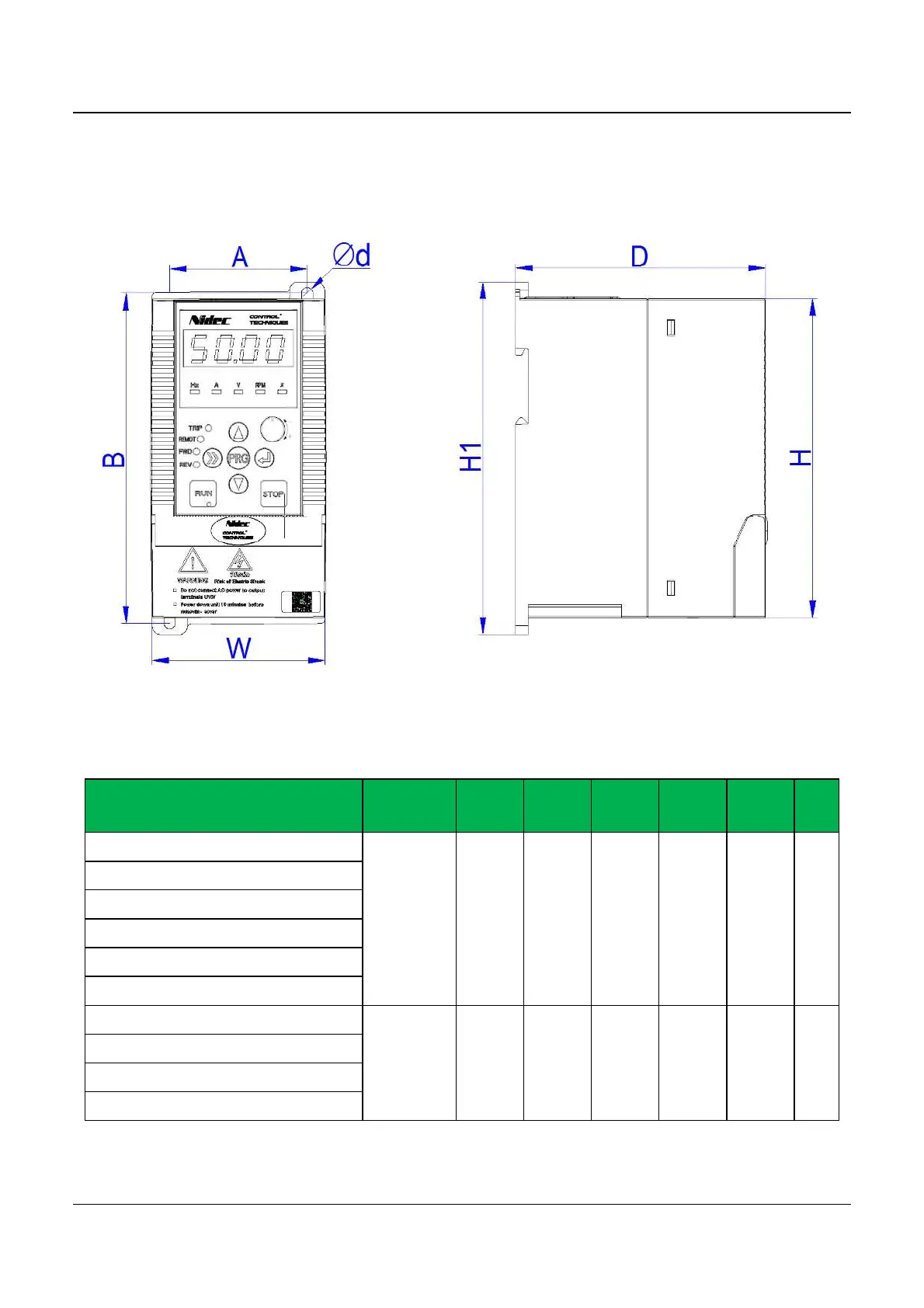

Fig.3-1 Product Outline, Mounting Dimension Schematic diagram
Note: NE200 series support 35mm DIN-rail mounting.
Inverter Model H W D H1
A B d
NE200-2S0004GB
150 83 120
166
65 153
5
NE200-2S0007GB
NE200-2S0015GB
NE200-4T0007G/0015PB
NE200-4T0015G/0022PB
NE200-4T0022GB-M
NE200-2S0022GB
200 120
140
215
98 202
5
NE200-4T0022G/0040PB
NE200-4T0040G/0055PB
NE200-2S0004GB
Note：
-M means compact model
