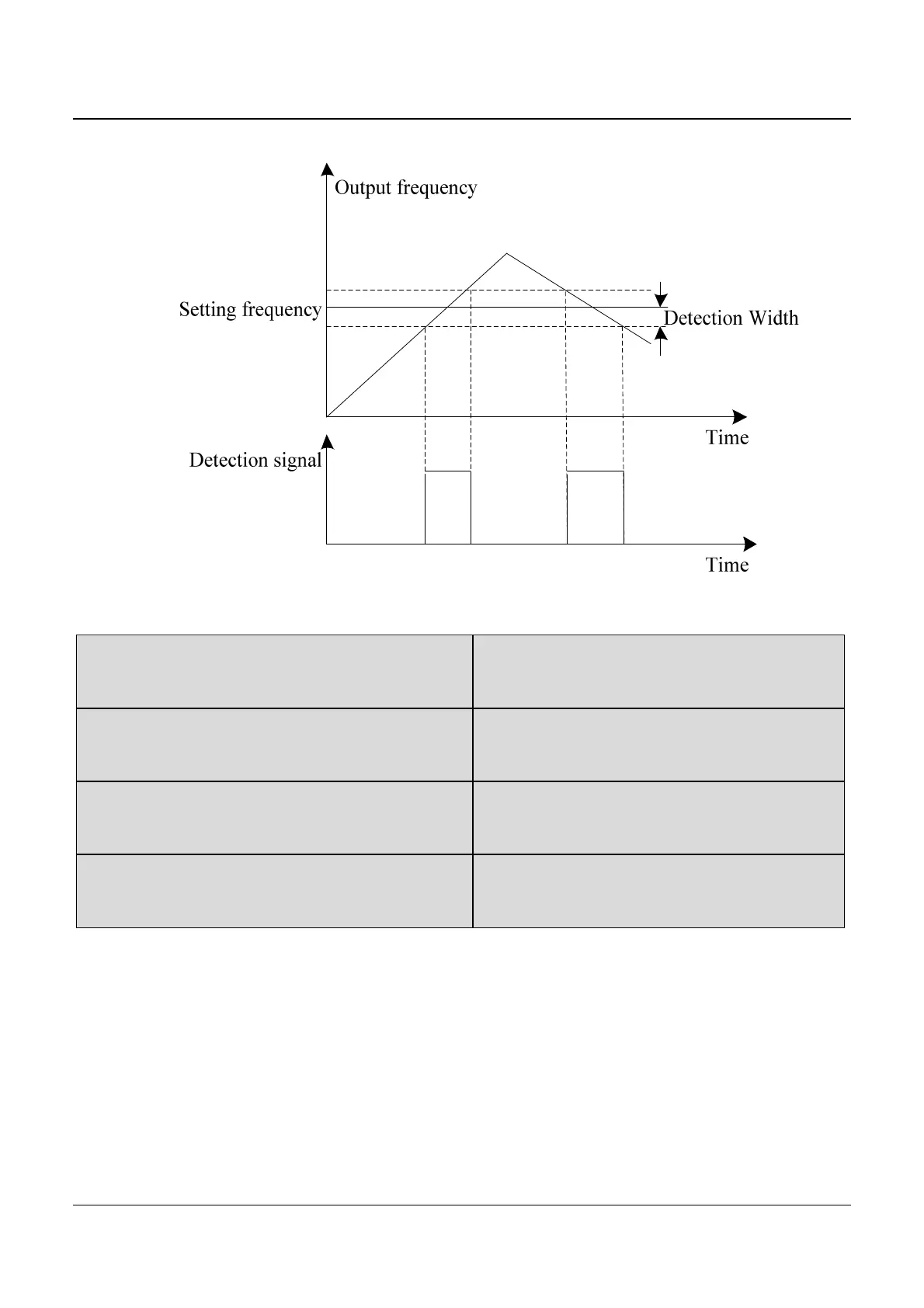

Fig.6-20 FAR detection diagram
F7.06 Frequency detection value 1
(FDT1 level)
Range: 0.00～600.0Hz【5.00Hz】
F7.07 Frequency detection lag
1(FDT1-lag)
Range: 0.00～10.0Hz【1.00Hz】
F7.08 Frequency detection value 2
(FDT2 level)
Range:0.00~300.0Hz
【 ② 5Hz/ ③ 25.00Hz】
F7.09 Frequency detection lag
2(FDT2-lag)
Range: 0.00～10.0Hz【1.00Hz】
The setting of 2 frequency arrival detection values and the action relief
lag value are shown as Fig.6-21 below.
