Combination Acc/Dec time Direction
4r r：Reverse

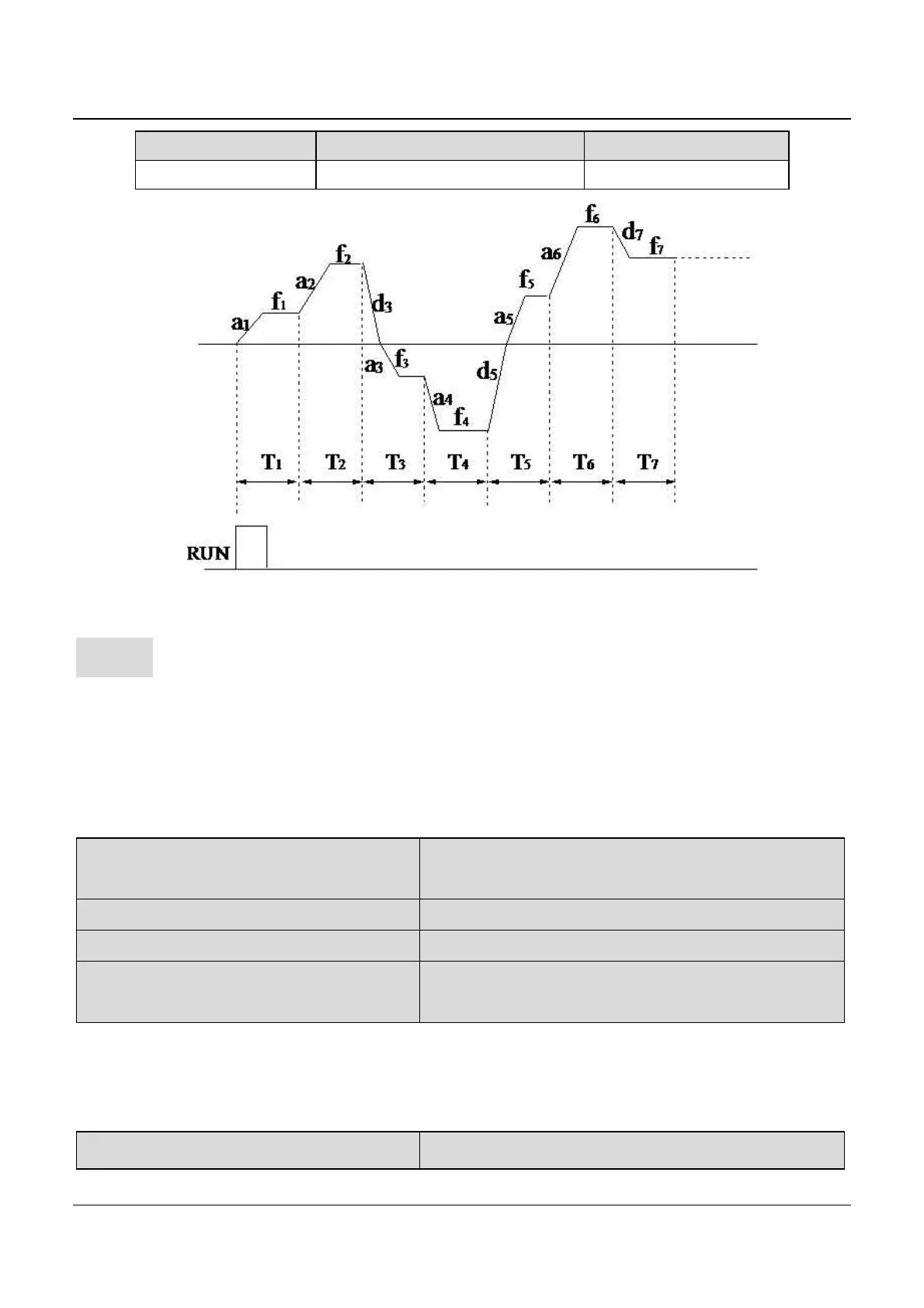

Fig.6-25 Simple PLC running
Note：
In Fig.6-25, f1～f7, a1～a7, d1～d7 and T1～T7 respectively correspond
to step frequency, Acc Time, Dec Time and running time.
F9.25
②
Current step running
time
Range: 0.0～3600【0】
F9.25
③
Current running step Range: 1～7【0】
F9.26
②
Current running step Range: 1～7【0】
F9.26
③
Current step running
time
Range: 0.0～3600【0】
Records the step that the PLC currently operating at.
Records the operating time of the step that the PLC currently running at.
F9.27 Multi-step freq. 8 Range: 0.00 ～ Max frequency
