NE200/300 Series Drive User Manual
40 Chapter 3 Wiring of Drive
Type
Termina
Terminal function Technical specification
GND Analog grounding
Relay
output
TA/TB/
TC
Relay output 1
TA － TB ： NC; TA － TC ： NO
Contact capacity ： 250VAC/1A ，
30VDC/1A
RS485
485+ 485 differential positive Rate:
1200/2400/4800/9600/19200/384
00bps;
Max. parallel 127 No.s; SW3
select adapted resistor; Max.
Length 500m. (twisted shielding
cable)
485- 485 differential negative
GND 486 shielding grounding Internal isolated with COM

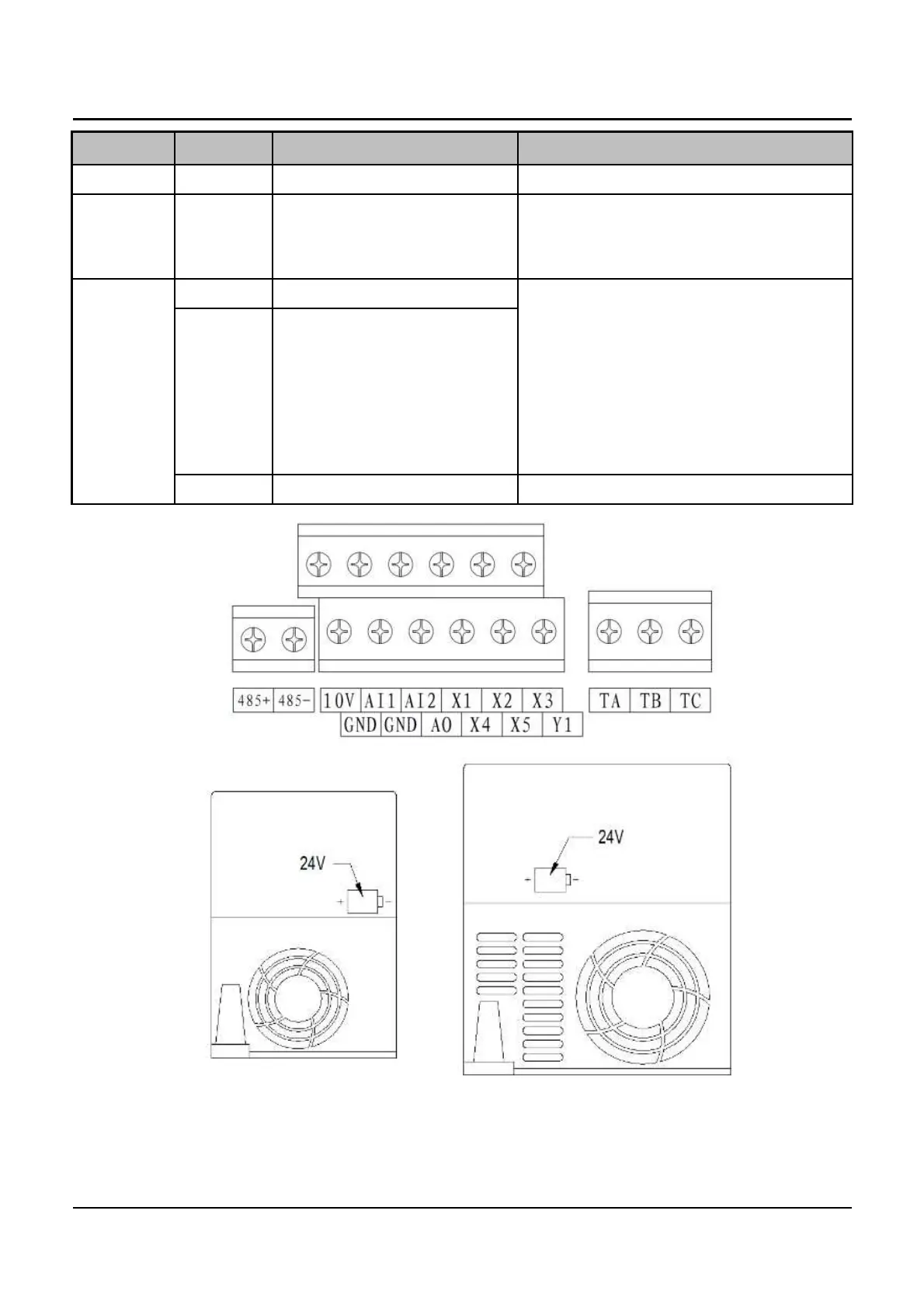

Fig.3-13 Arrangement of Control Circuit Terminals
NE200
-
2S0004GB~
NE200-4T0022GB-M
NE200
-
2S0022GB~
NE200-4T0040G/0055PB
