NE200/300 Series Drive User Manual
50 Chapter 3 Wiring of Drive
10V, AI1, AI2, AO1, GND
485+, 485-
M3 0.5 ～ 0.6 0.75
Twisted pair
Shielded
cable
24V, X1, X2, X3, X4, X5,
COM, Y1, DO, COM, TA,
TB, TC
M3 0.5 ～ 0.6 0.75 Shielded cable
3.8.2.2 NE300 DIP switch setting instruction

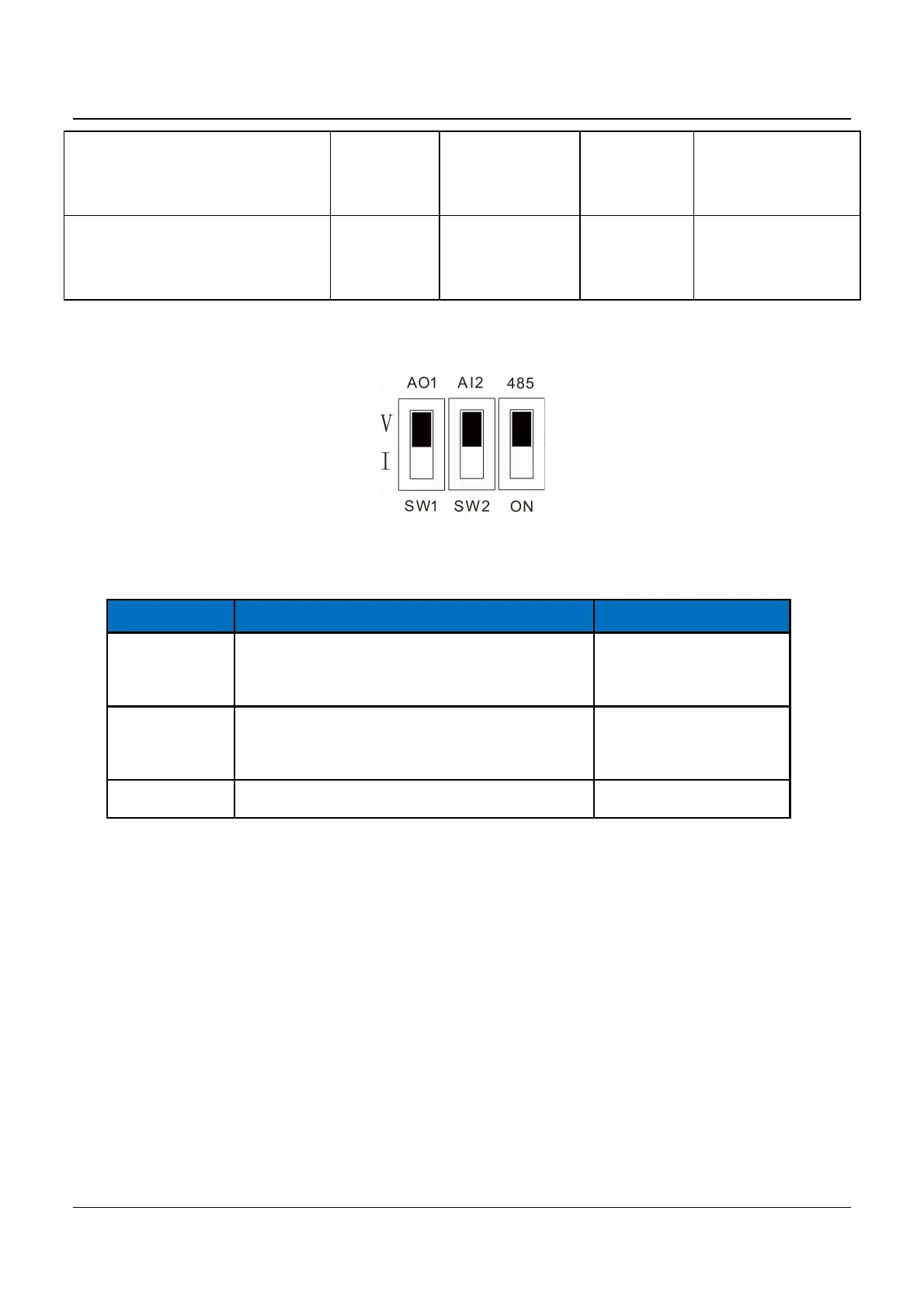

Fig.3-29 NE300 DIP switch setting
Terminal
Function
Default
AI2
I for current input(0/4~20mA);
V for voltage input (0～10V)
0～10V
AO1
I for current output(0/4~20mA);
V for voltage output (0～10V)
0～10V
RS485 User selected resistor ON
