Chapter 3 Individual Operations
142
Individual
Operations

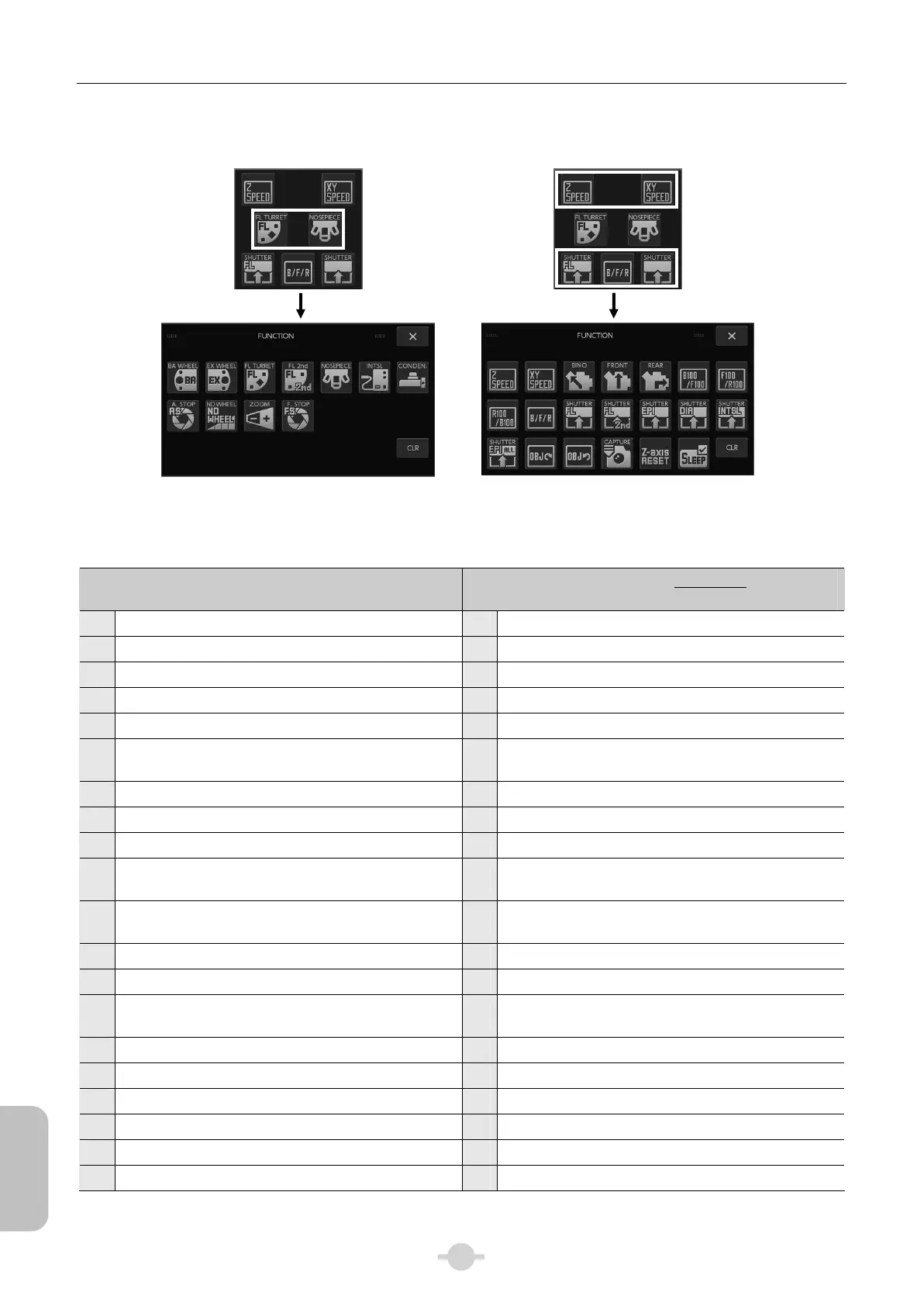

Using [FUNC SET] of the ergo controller on the DS-L3 [MICROSCOPE SETUP] screen allows you to change the default
setting of the operation button function.
Function Allocated to the CW/CCW
Button
Function Allocated to a Switch Other Than
the CW/CCW Button
Functions Allocatable to the CW/CCW Button and Other Buttons/Switches
Function Allocated to the CW/CCW Button Function Allocated to a Switch Other Than the CW/CCW
Button
Operate barrier filter wheel Switch Z speed (focus knob operation mode)
Operate excitation filter wheel Switch XY speed (stage knob operation mode)
Rotate epi-fluorescence cube turret on the 1st layer Switch optical path (BINO: 100% to binocular)
Rotate epi-fluorescence cube turret on the 2nd layer Switch optical path (FRONT: 100% to tube adapter)
Rotate nosepiece Switch optical path (REAR: 100% to rear port)
Switch ND filter value in the HG precentered fiber
illuminator
Switch optical path (B100/F100)
Rotate condenser turret Switch optical path (F100/R100)
Adjust aperture diaphragm on the condenser Switch optical path (R100/B100)
Operate motorized ND filter wheel Switch optical path (B/F/R)
Operate DSC optical zoom
Open/close shutter of epi-fluorescence cube turret on
the 1st layer
Adjust DIA field diaphragm
Open/close shutter of epi-fluorescence cube turret on
the 2nd layer
Operate EPI motorized shutter
Operate DIA motorized shutter
Open/close shutter in the HG precentered fiber
illuminator
Open all EPI side shutters
Rotate nosepiece
Rotate nosepiece reversely
Capture
Reset Z-axis coordinate
Reduce noise (SLEEP mode)
