Nikon Labophot Repair Manual

R-4106.A

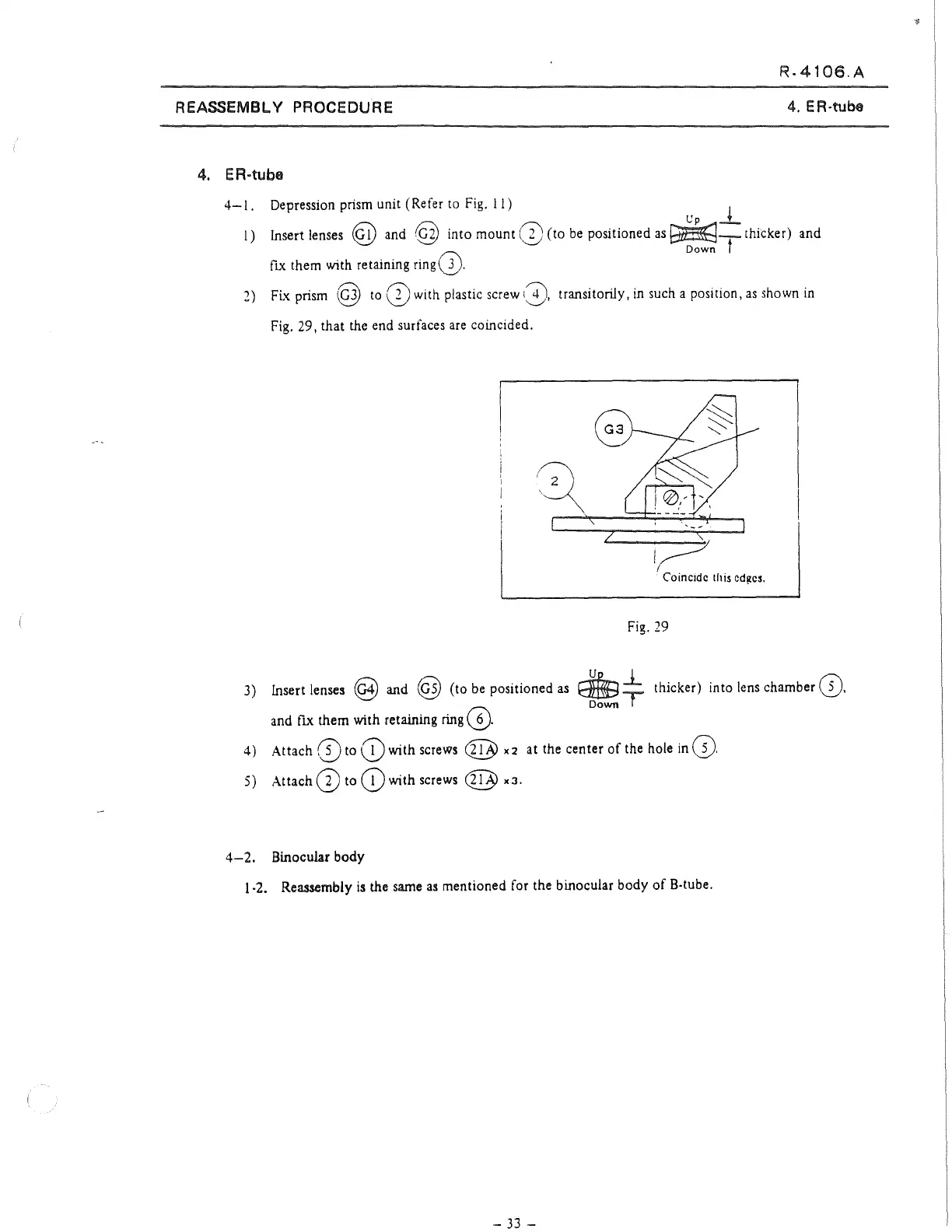

REASSEMBL Y PROCEDURE
4. ER·tube
4. ER·tube
4-1.
Depression prism unit (Refer to Fig. 11)
1
t.:p _+_
l) lnsert lenses @ and i@ into mount (D (to be positioned as r;aJ- thicker) and
(";"\ Down t
ftx them with retaining ring\_:J.
2) FLx prism @ to G) with plastic screw (~). transitorily, in such a position, as shown in
Fig. 29, that the end surfaces are coincided.
J) lnsert lenses @ and @ (to be positioned as
and
ftx them with retaining ring@.
1?
Coincide tltis cd~cs.
Fig. 29
GiE@T_l_ thicker) into lens chamber(D,
Down
4) Attach (D to G) with screws @ x 2 at the center of the hole in (D.
5) Attach(D to G)with screws @xJ.
4-2. Binocular body
l ·2. Reassembly is the sarne as mentioned for the binocular body of B-tube.
- 33 -

Nikon Labophot Specifications

General

Illumination	Built-in transmitted light, halogen lamp
Stage	Mechanical stage with coaxial controls
Focus	Coarse and fine focus knobs
Observation Methods	Brightfield, Phase Contrast
Condenser	Abbe condenser
Power Supply	AC 100-240V, 50/60Hz
