Nikon Labophot Repair Manual

R-4104.A

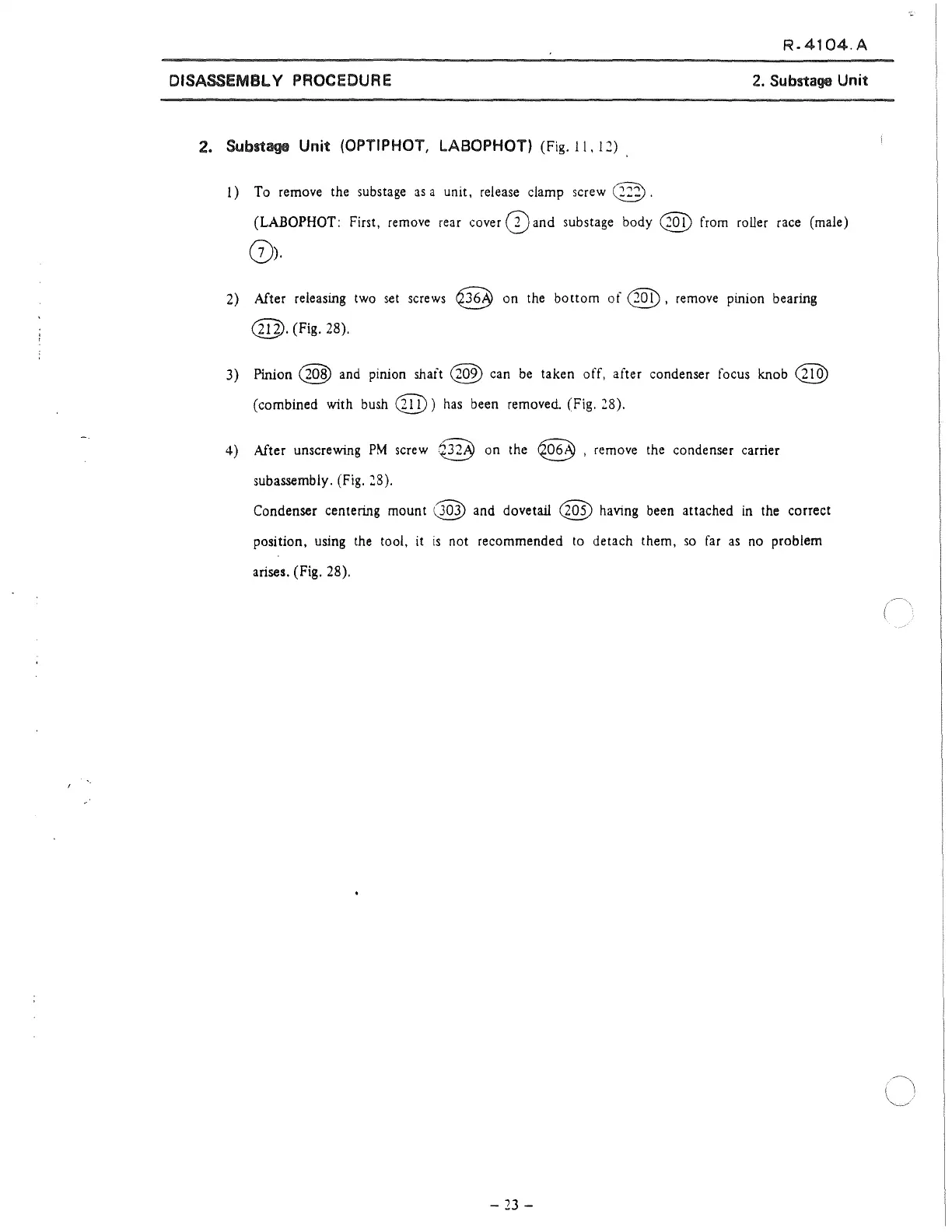

DISASSEMBL Y PROCEDURE 2. Subrtage Unit
2. Subrtage Unit (OPTIPHOT, LABOPHOT) (Fig. 11. 12)
l) To remove the substage as a unit, release clamp screw @ .
(LABOPHOT: First. remove rear e o ver 0 and substage body @ from rotler race (mal e)
(j)).
2) After releasing two set screws @ on the bottom of @, remove pinion bearing
@.(Fig. 28).
3) Pinion
ª and pinion shait @ can be taken off, after condenser focus knob @
(combined with bush @) has been removed. (Fig. 28).
4) After unscrewing PM screw '® on the @ , remove the condenser carrier
subassembly.
(Fig. 28).
Condenser centering mount @ and dovetail @ having been attached in the correct
position, using the tool, it is not recommended to detach them, so far as no problem
arises. (Fig. 28).
- 23-

Nikon Labophot Specifications

General

Illumination	Built-in transmitted light, halogen lamp
Stage	Mechanical stage with coaxial controls
Focus	Coarse and fine focus knobs
Observation Methods	Brightfield, Phase Contrast
Condenser	Abbe condenser
Power Supply	AC 100-240V, 50/60Hz
