Nikon Labophot Repair Manual

·~·
R-4106.A

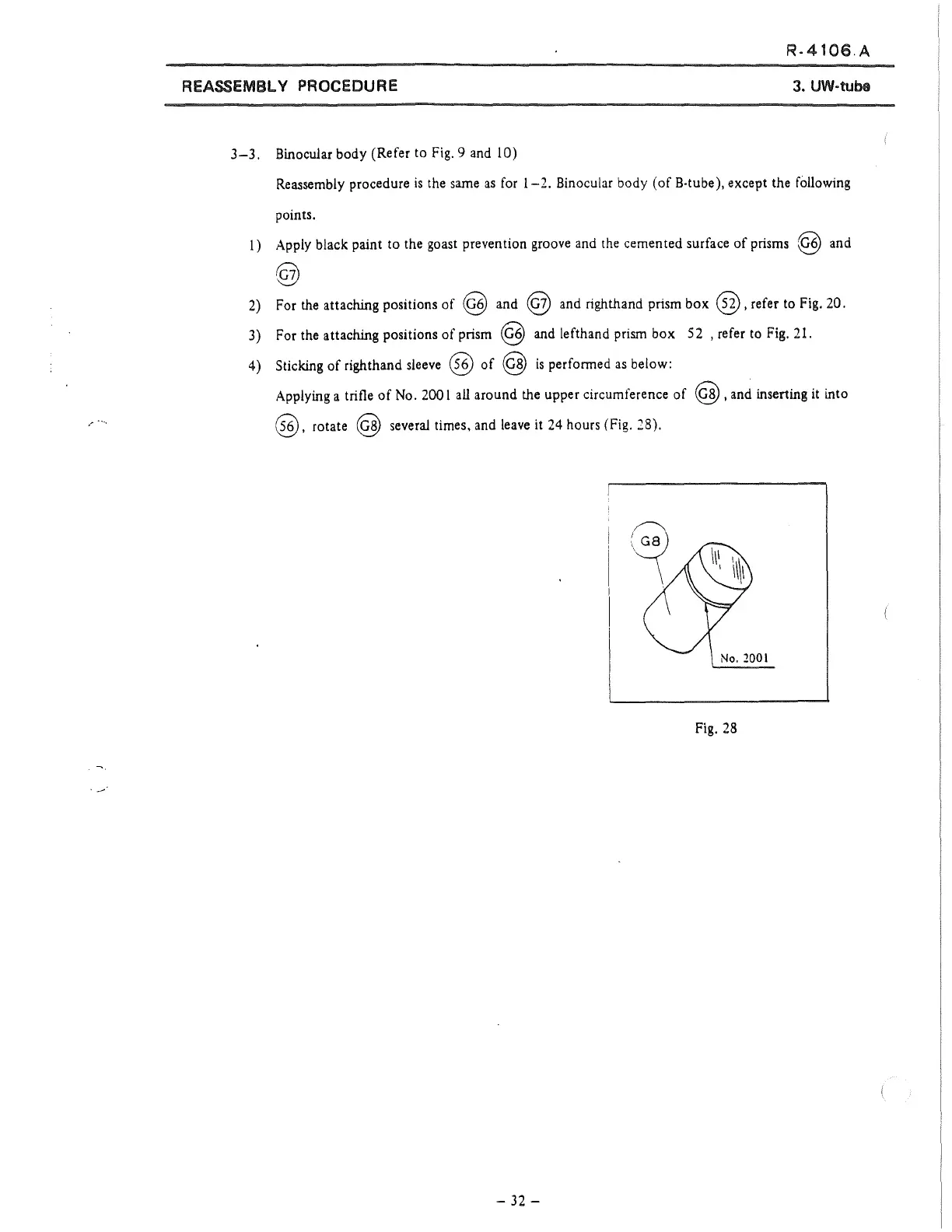

REASSEMBL Y PROCEDURE 3. UW·tuoo
3-3. Binocular body (Refer to Fig. 9 and 10)
Reassembly procedure is the sarne as for 1-2. Binocular body ( of B-tube ), except the following
points.
1) Apply black paint to the goast prevention groove and the cemented surface of prisms @ and
@
2) For the attaching positions of @ and @ and righthand prism box @, refer to Fig. 20.
3) For the attaching positions of prism @ and lefthand prism box 5 2 , refer to Fig. 21.
4) Sticking of righthand sleeve @ of @ is performed as below:
Applying a trifle of No. 2001 all around the upper circumference of @ , and ínserting it into
@, rotate @ severa! times, and leave it 24 hours (Fig. 28).
Fig. 28
- 32 -

Nikon Labophot Specifications

General

Illumination	Built-in transmitted light, halogen lamp
Stage	Mechanical stage with coaxial controls
Focus	Coarse and fine focus knobs
Observation Methods	Brightfield, Phase Contrast
Condenser	Abbe condenser
Power Supply	AC 100-240V, 50/60Hz
