Nikon Labophot Repair Manual

R-4108.A

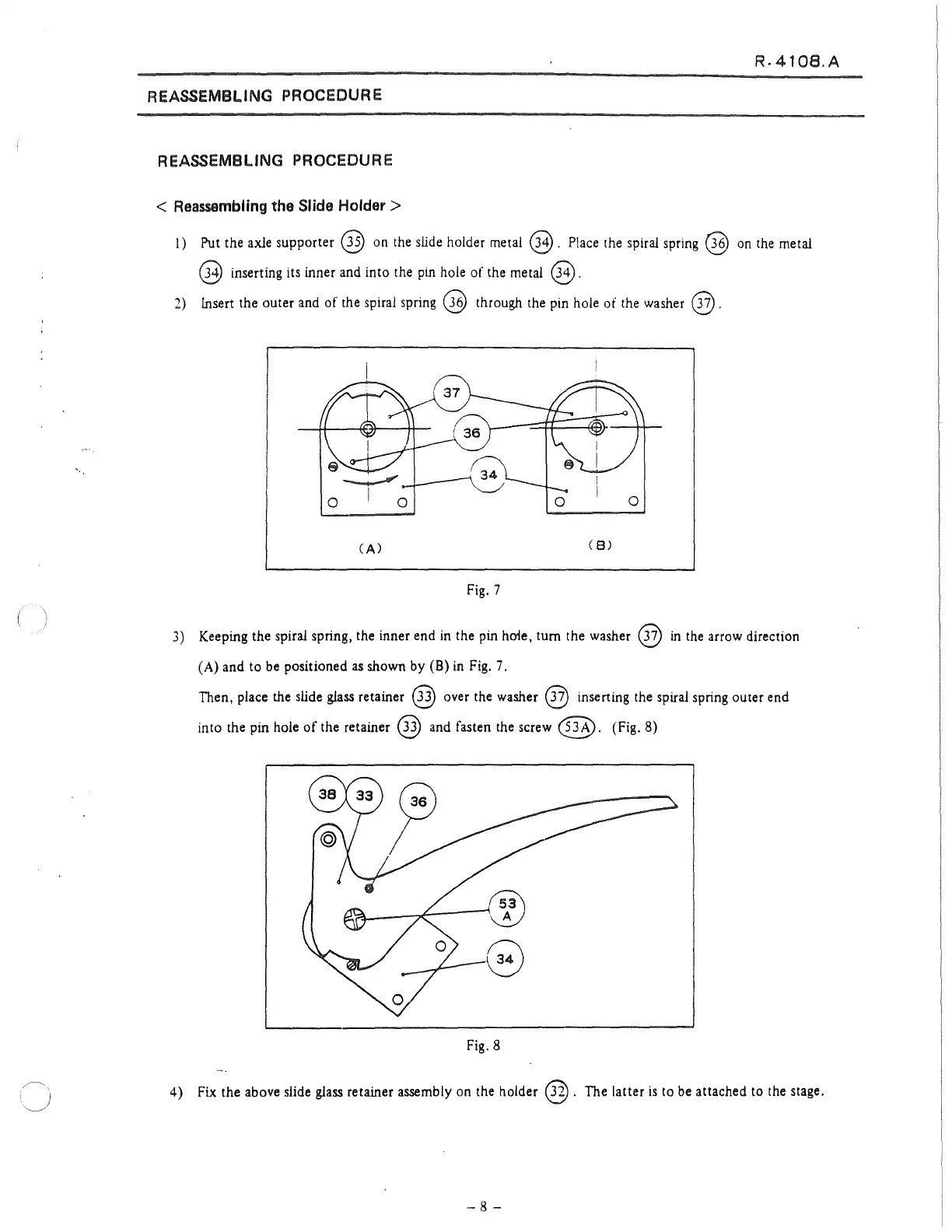

REASSEMBLING PROCEDURE
REASSEMBLING PROCEDURE
< Reassembling the Slide Holder >
1) Put the axle supporter @ on the slide holder metal @ . Place the spiral spring @ on the metal
@ inserting its inner and into the pin hole of the metal @.
2) Insert the outer and of the spiral spring @ through the pin hole of the washer @.
C A)
( 8)
Fig. 7
3) Keeping the spiral spring, the inner end in the pin hoie, tum the washer @ in the arrow direction
(A) and to be positioned as shown by (B) in Fig. 7.
Then, place the slide glass retainer @ over the washer @ inserting the spiral spring outer end
into the pin hole
of the retainer @ and fasten the screw @. (Fig. 8)
Fig. 8
4) Fix the above slide glass retainer assembly on the holder @. The latter is to be attached to the stage.
-8-

Nikon Labophot Specifications

General

Illumination	Built-in transmitted light, halogen lamp
Stage	Mechanical stage with coaxial controls
Focus	Coarse and fine focus knobs
Observation Methods	Brightfield, Phase Contrast
Condenser	Abbe condenser
Power Supply	AC 100-240V, 50/60Hz
