Nikon Labophot Repair Manual

_./
R-4104 A
DISASSEMBL Y PROCEDURE
4. Base Unit
< Removing mirrar @ and mirrar holder @ >
l O) After removing brightness indicator holder ( only for OPTIPHOT), take off retaining ring
@.(Fig. 35).

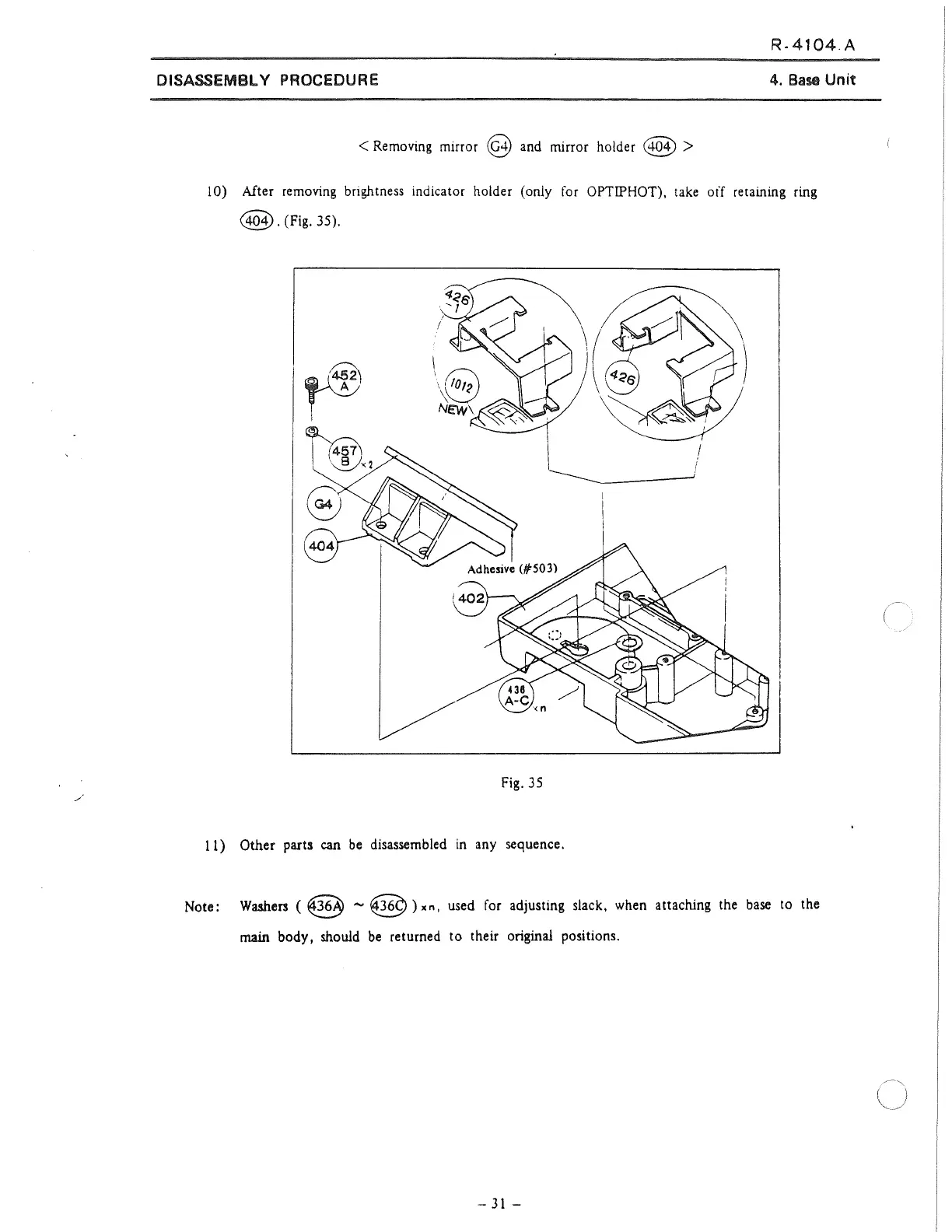

Fig. 35
11) Other parts can be disassembled in any sequence.
Note: Washers (@ - @> xn, used for adjusting slack, when attaching the base to the
main body, should be returned to their original positions.
-31-
