ADJUSTMENT
6. Centering of Optical System in the Microscope Base
6) If the field díaphragm does not come to the center, incorrect positioning of the mirrar
or filament is conceivable.
ln this case, correct their positions, and proceed to 3) and 6) again.
7) Check the minimum (less than lmm4') and maximum (more than 35.9mm4') díameters of
the field diaphragm.
J 25146
125146
~
~)'~
4221
~ '-;/
.___/
11
_1j

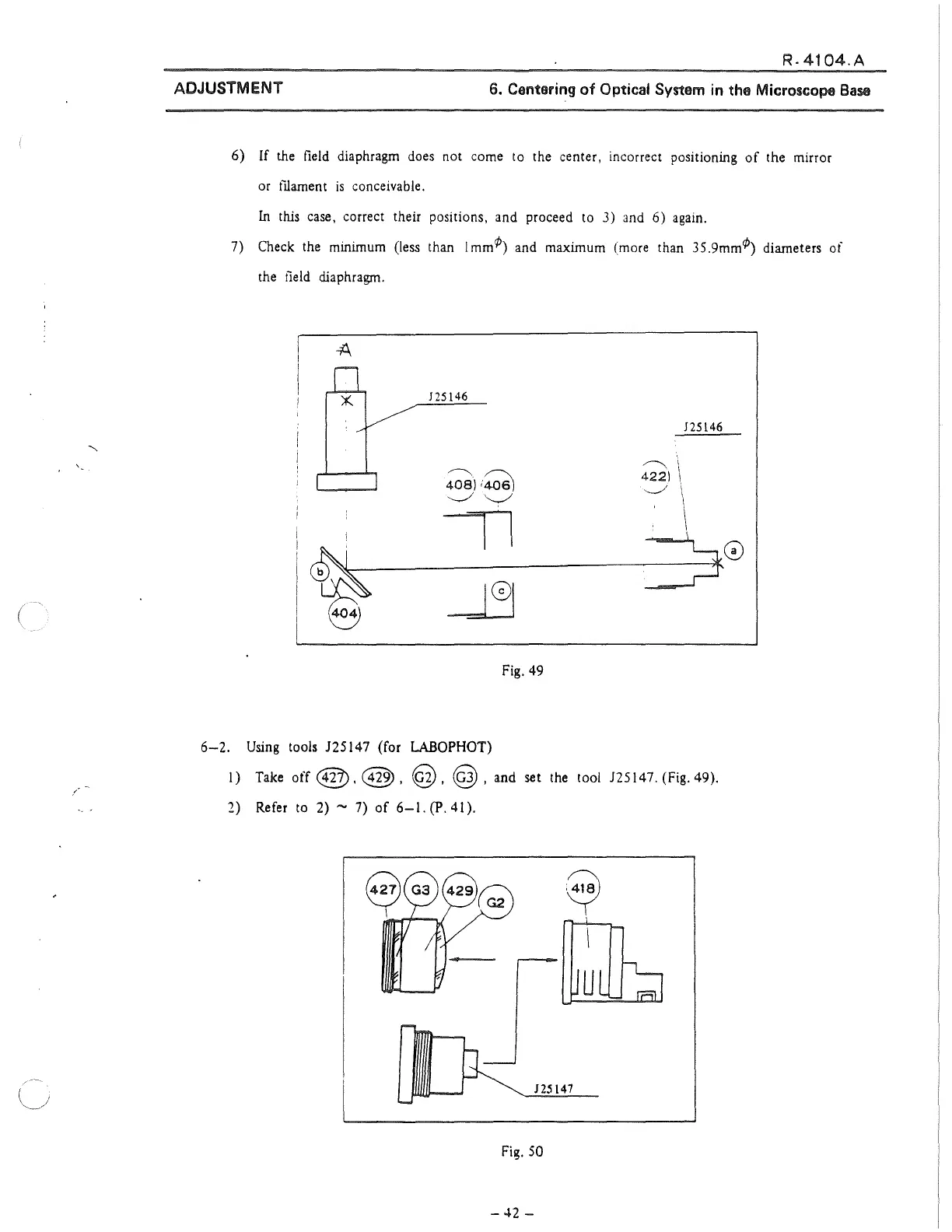

Fig. 49
6-2. Using tools 125147 (for LABOPHOT)
!) Take off @. @, @, @, and set the tool 125147. (Fig. 49).
2) Refer to 2) - 7) of 6-1. (P. 41 ).
125147
Fig. 50
