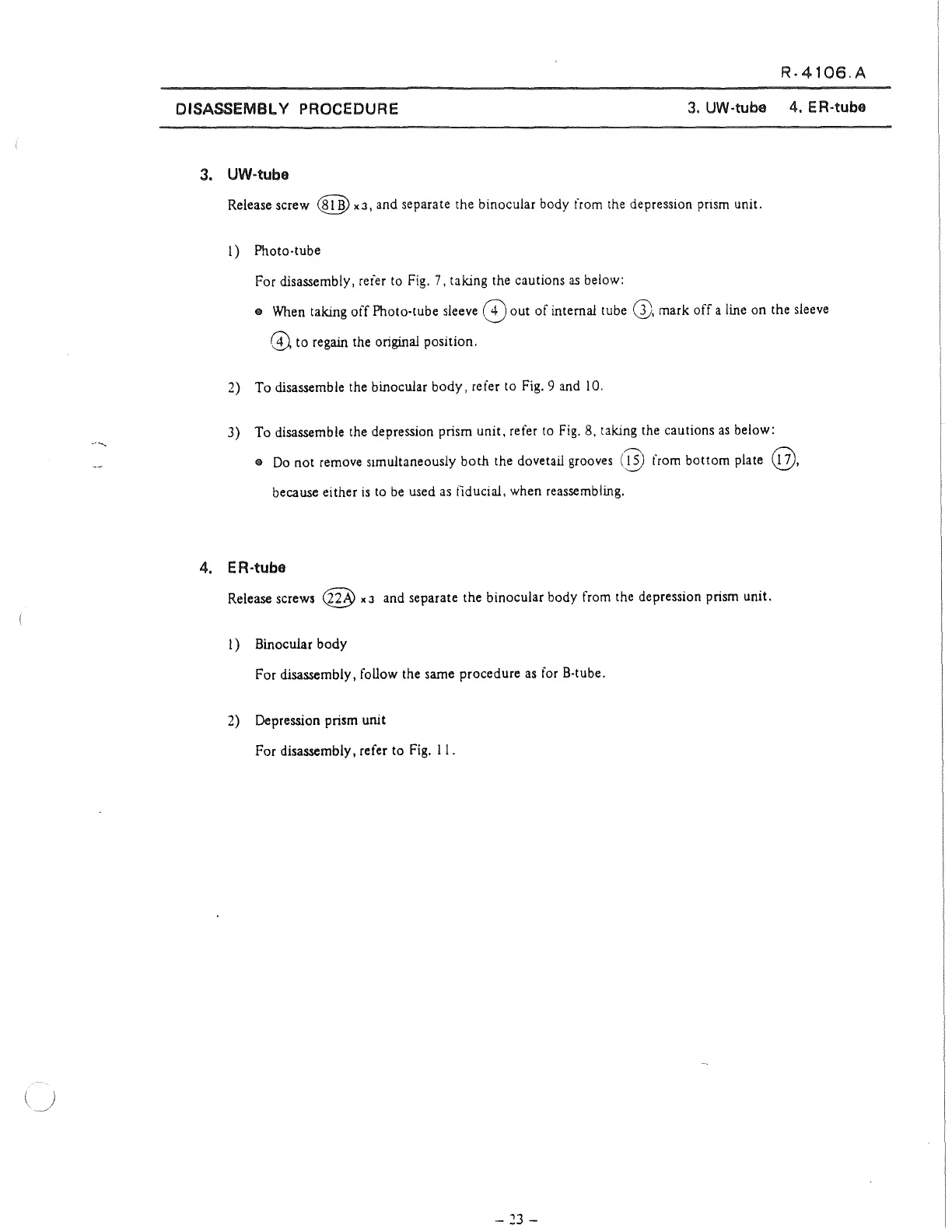

R-4106.A
DISASSEMBL Y PROCEDURE
3.
UW·tube
4.
ER·tube
3.
UW·tube
Release screw
~
xJ,
and separate the binocular body from the depression pnsm unit.
1)
Photo·tube
For disassembly, refer
to
Fig.
7,
taking the cautions
as
below:
•
When
taking off Photo·tube sleeve
e±)
out of interna! tube
G),
mark off a line on the sleeve
©to
regain the original position.
2)
To
disassemble the binocular body, refer to
Fig.
9
and
1
O.
3)
To
disassemble the depression prism unit, refer
to
Fig.
8, taking the cautions
as
below:
•
Do
not remove s1multaneously both the dovetail grooves (!I) from bottom plate
@,
because either
is
to
be
used
as
fiducial, when reassembling.
4.
ER·tube
Release screws @ x J and separa te the binocular body
from
the depression prism unit.
1)
Binocular body
For disassembly, follow the sarne procedure
as
for
B·tube.
2)
Depression prism unit
For
disassembly, refer to
Fig.
11
.
-
23
-
