Nikon Labophot Repair Manual

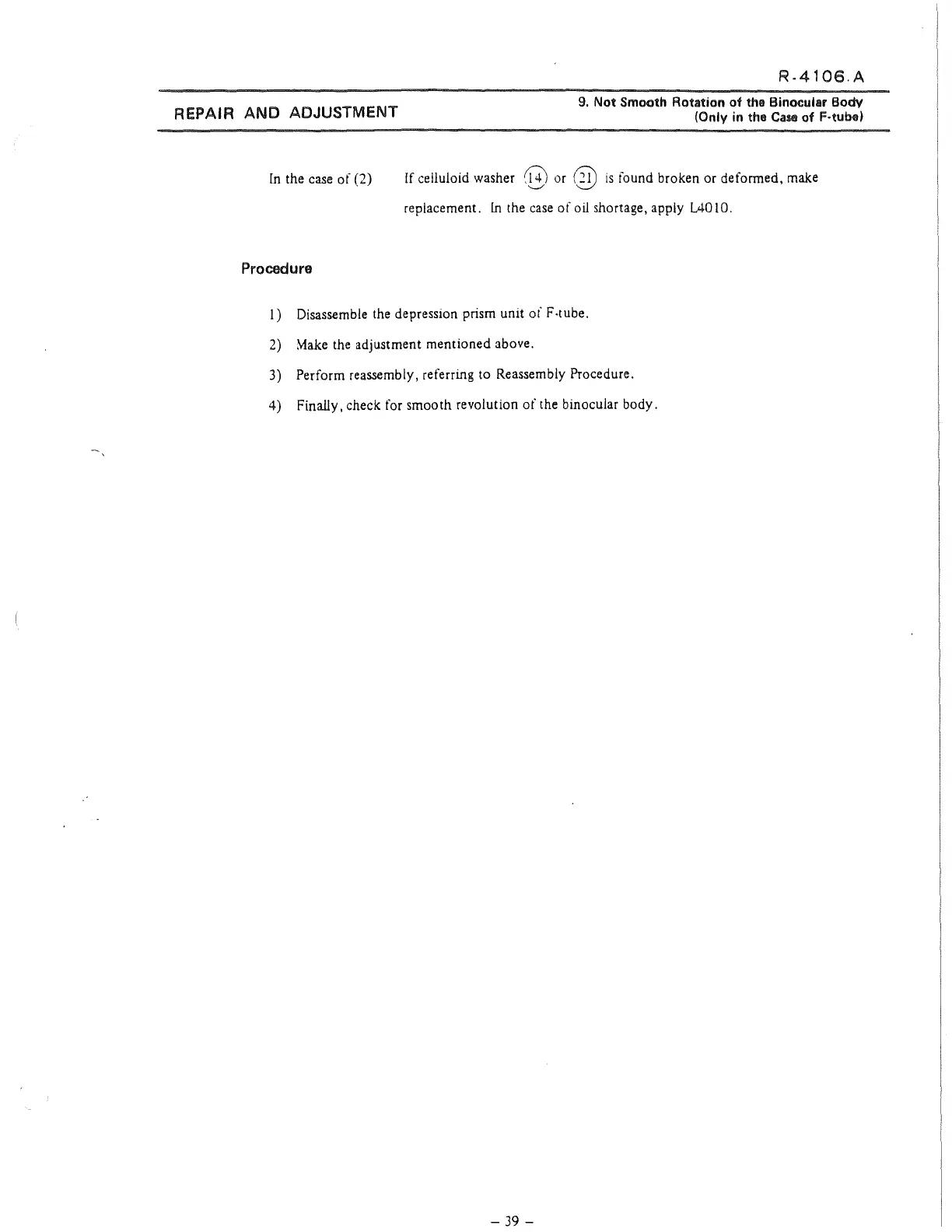

REPAIR ANO ADJUSTMENT
In the case of (2)
Procedure
R-4106.A
9. Not Smooth Rotation of the Binocul11r Body
(Only in the Case of F-tube)
lf celluloid washer @ or @ is found broken or defonned, make
replacement.
ln the case of oil shortage, apply L4010.
l) Disassemble the depression prism unit of F-tube.
2) Make the adjustment mentioned above.
3)
Perform reassembly, referring to Reassembly Procedure.
4) Finally, check
for smooth revolution of the binocular body.
-
39 -
