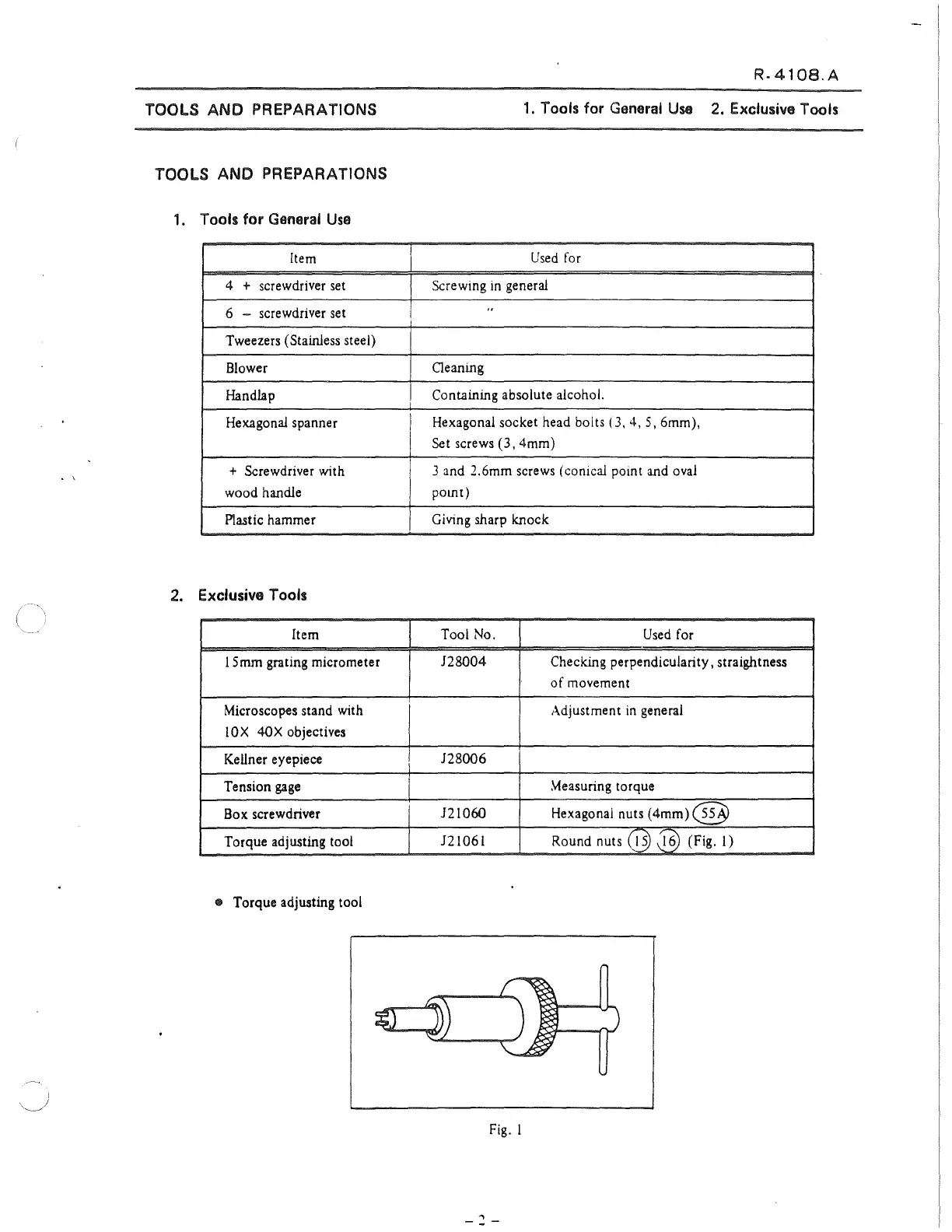

Nikon Labophot Repair Manual

R-4108.A
TOOLS ANO PREPARATIONS
1. Toais for General Use 2. Exclusive Toais
TOOLS ANO PREPARATIONS
1. Tools for General Use
Item
Used for
4 + screwdriver set Screwing in general
6
- screwdriver set
1
"
Tweezers (Stainless steel)
Blower
Oeaning
Handlap
Containing absolute alcohol.
Hexagonal spanner
Hexagonal socket head bolts (
3, 4, 5, 6mm),
Set screws
(3, 4mm)
+ Screwdriver with
3 and 2.6mm screws ( conical
pomt and oval
wood handle
potnt)
Plastic hammer
Giving sharp knock
2. Exclusive Tools
Item Tool No. Used for
l
Smm grating micrometer
128004 Checking perpendicularity, straightness
of movement
Microscopes stand with
Adjustment
in general
IOX 40X objectives
Kellner eyepiece
128006
Tension
gage
Measuring torque
Box screwdriver
121060
Hexagonal nuts (4mm)@
Torque adjusting too!
121061
Round nuts ( 15) \ 16) (Fig. 1)
• Torque adjusting tool
Fig. 1
