Nikon Labophot Repair Manual

R-4108.A
DISASSEMBLING PROCEDURE
12) Remove the beirin washer @ .

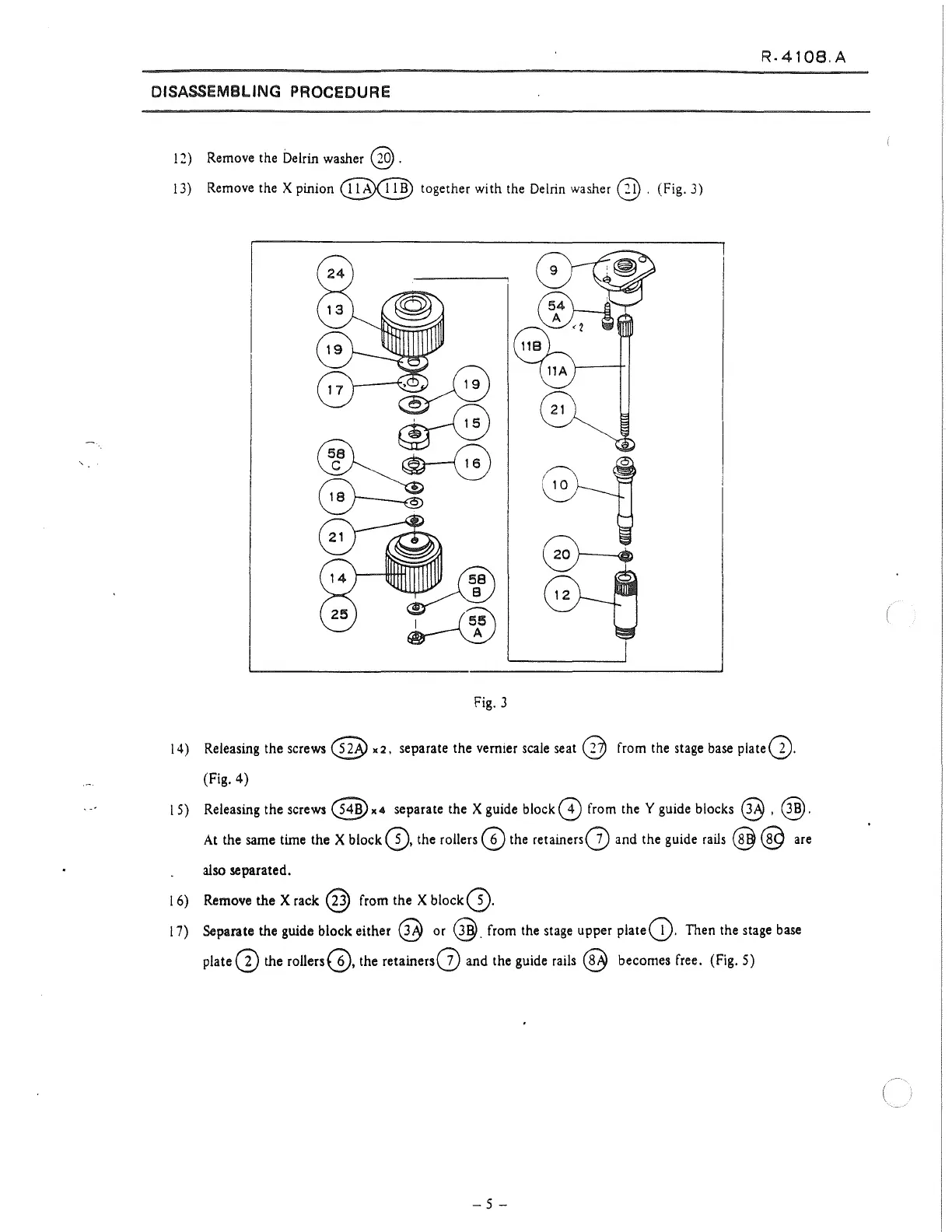

13) Remove the X pinion@@ together with the Delrin washer@ . (Fig. 3)
Fig. 3
14) Releasing the screws@x2, separate the vernier scale seat@ from the stage base plate(3).
(Fig. 4)
15) Releasing the screws @x4 separate the X guide block@ from the Y guide blocks @ , @.
At the sarne time the X block (D. the rollers@ the retainers(V and the guide rails @@ are
also separated.
16) Remove the X
rack@ from the X block(D.
17) Separa te the guide block either @ or @. from the stage upper pia te G). Then the stage base
plate
0 the rollers@, the retainers(Z) and the guide rails @ becomes free. (Fig. 5)
-5-
