Nikon Labophot Repair Manual

R-4108.A

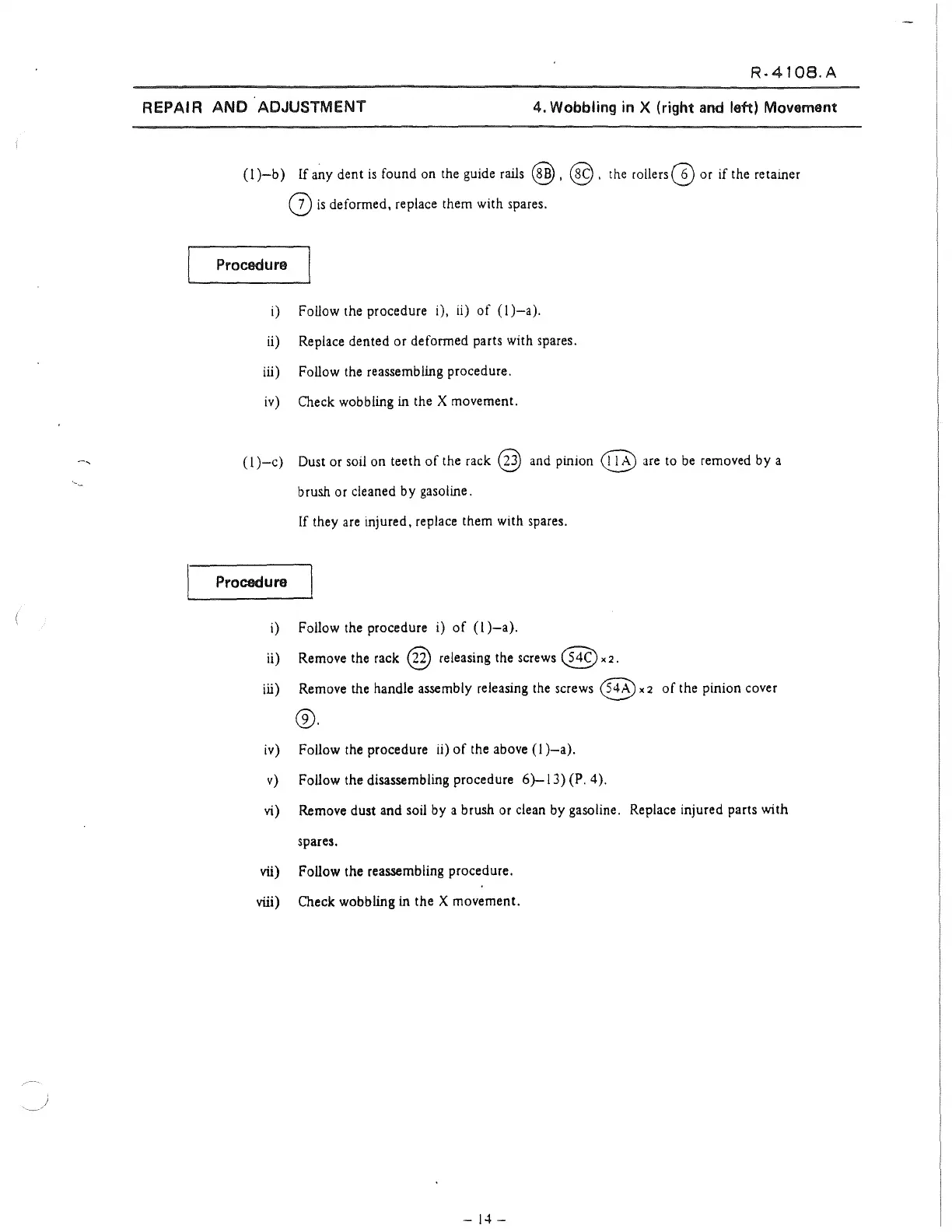

REPAIR ANO ADJUSTMENT 4. Wobbling in X (right and left) Movement
(1 )-b) If a~y dent is found on the guide rails @ , @ , the rollers@ or if the retainer
(}) is deformed, replace them with spares.
Procadure
i) Foilow the procedure i), ii) of (1)-a).
ii) Replace dented or deformed parts with spares.
ili) Follow the reassembling procedure.
iv) Check wobbling in the X movement.
(i)-c) Dust or soil on teeth of the rack @ and pinion e@ are to be removed by a
brush or cleaned by gasoline.
lf they are ínjured, replace them with spares.
Procedure
í) Follow the procedure i) of ( 1 )-a).
ii) Remove the rack @ releasing the screws @ x 2.
iii) Remove the handle assembly releasing the screws c@x 2 of the pinion cover
®·
iv) Follow the procedure ii) of the above ( 1 )-a).
v) Follow the disassembling procedure 6)-13) (P. 4).
vi) Remove dust and soil by a brush or clean by gasoline. Replace injured parts with
spares.
vii) Follow the reassembling procedure.
viii) Check wobbling in the X movement.
- 14-

Nikon Labophot Specifications

General

Illumination	Built-in transmitted light, halogen lamp
Stage	Mechanical stage with coaxial controls
Focus	Coarse and fine focus knobs
Observation Methods	Brightfield, Phase Contrast
Condenser	Abbe condenser
Power Supply	AC 100-240V, 50/60Hz
