Nikon SB-600 - Speedlight parts and their functions

10

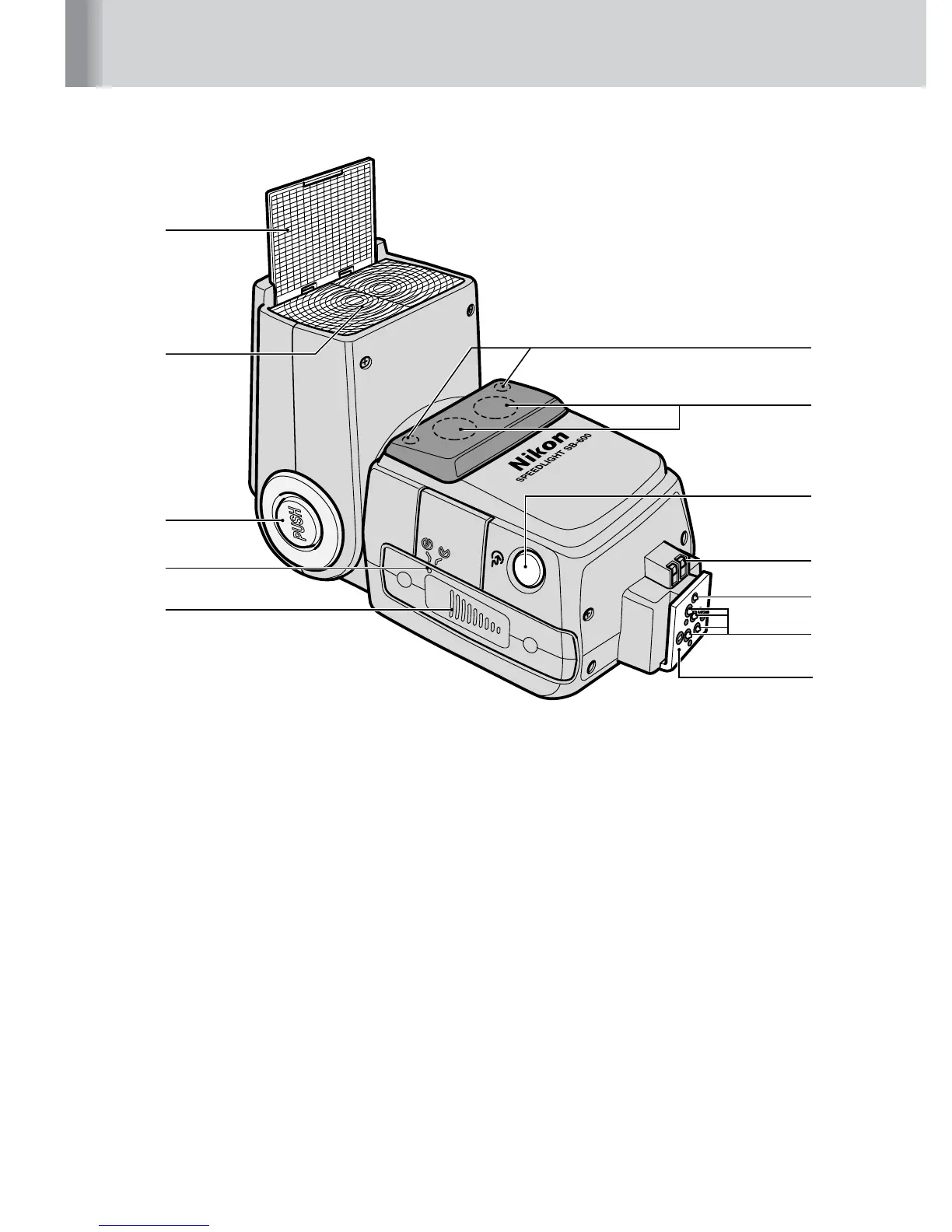

Speedlight parts and their functions
1 Built-in wide-flash adapter (p. 74)
Increases the angle of coverage to match a
14 mm lens.
2 Flash head (p. 72)
Can be tilted from 0° to 90° and rotated
horizontally 180° to the left and 90° to the right.
3 Flash head tilting/rotating lock-
release button
(p. 22)
4 Battery chamber lid open-close
index
(p. 18)
5 Battery chamber lid (p. 18)
6Auxiliary ready-light (p. 65)
Works as a ready-light when the SB-600 is used
as a wireless remote flash unit.
7 Wide-area AF-assist illuminator
(p. 50)
Automatically turns on for autofocus operation
when the light is dim.
8 Light sensor window for wireless
remote flash
(p. 58)
9External AF-assist illuminator
contacts
Accepts optional TTL Remote Cord SC-29
10 Mount pin
11 Hot-shoe contacts
12 Mounting foot
5
6
3
4
1
2
11
10
9
7
12
8
