166Service Manual – SC5000 24 - Electrical System

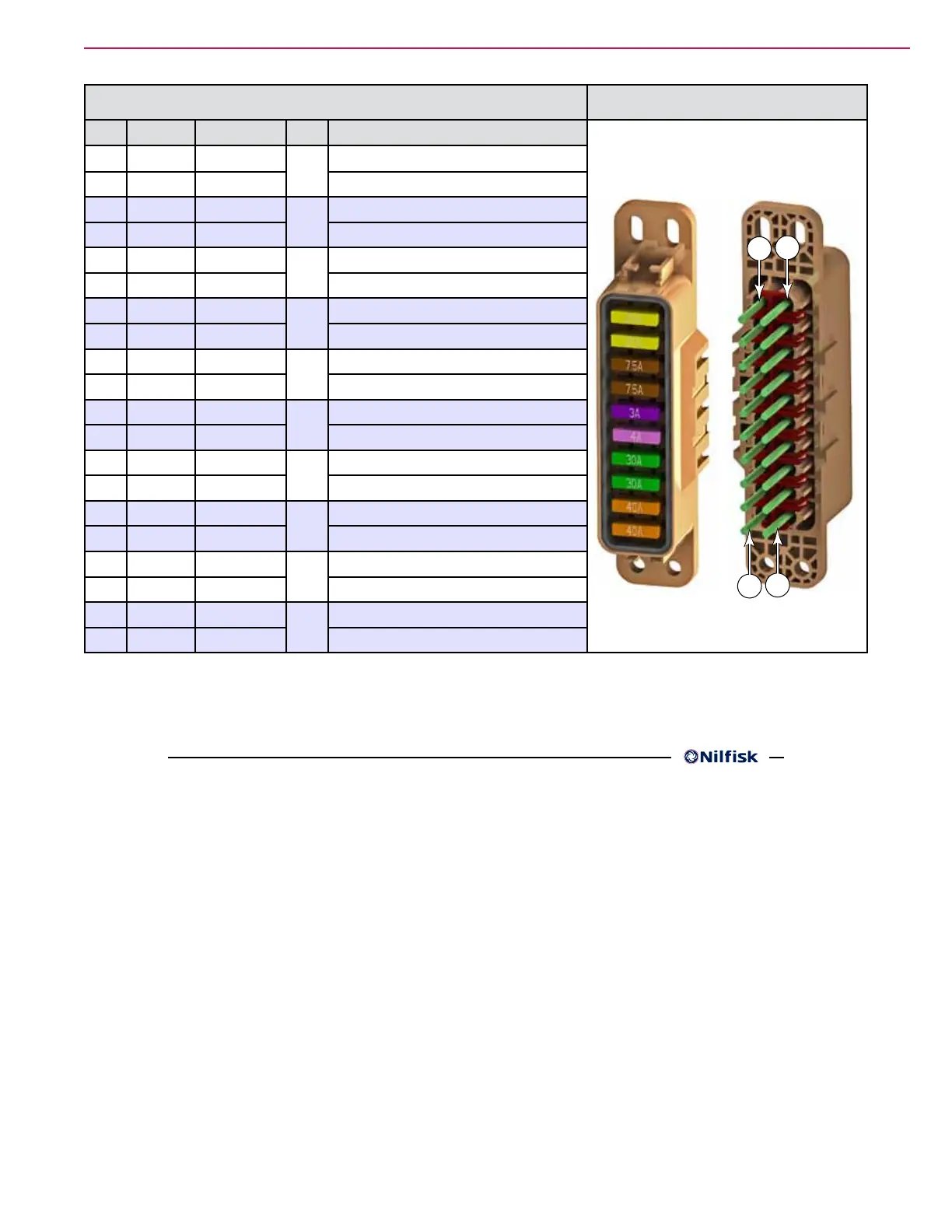

X220 Fuse Block 2-794617-4
Pin# Wire Color Fuse Function
1 W217AF BRN-GRY
F3
40A
In: Left Disk Motor
10
1
J
A
A W217A BRN-GRY 40A Out: Left Disk Motor
2 W216AF BRN-GRY
F4
40A
In: Right Disk Motor
B W216A BRN-GRY 40A Out: Right Disk Motor
3 W218F GRN-GRY
F5
25A
In: M4 Vacuum Motor 1
C W218 GRN-GRY 25A Out: M4 Vacuum Motor 1
4 W219F GRN-GRY
F6
25A
In: M5 Vacuum Motor 2
D W219 GRN-GRY 25A Out: M5 Vacuum Motor 2
5 W233F BLU-RED
F7
5A
In: M10 Wash Pump
E W233 BLU-RED 5A Out: M10 Wash Pump
6 W222F BRN-WHT
F8
10A
In: M3 Side Sweep
F W222 BRN-WHT 5A Out: M3 Side Sweep
7 W229F GRN-RED
F9
10A
In: M6 Squeegee Actuator
G W229 GRN-RED 10A Out: M6 Squeegee Actuator
8 W231F GRN-RED
F10
10A
In: M7 Deck Actuator
H W231 GRN-RED 10A Out: M7 Deck Actuator
9 W217BF BRN-GRY
F11
30A
In: Rear Cyl Motor
I W217B BRN-GRY 30A Out: Rear Cyl Motor
10 W216BF BRN-GRY
F12
30A
In: Front Cyl Motor
J W216B BRN-GRY 30A Out: Front Cyl Motor
To Next Page
