59Service Manual – SC5000 04 - Control System
2-046 M6 Squeegee Act Mtr Overcurrent
Description
The power module has detected squeegee actuator motor current above 25 amps,
which exceeds the limitations of the power module.
Setting
Conditions
Same
When Monitored
Always
Possible Causes
• Failed actuator motor
• Short between the motor windings.
Initial Action None
Troubleshooting Steps

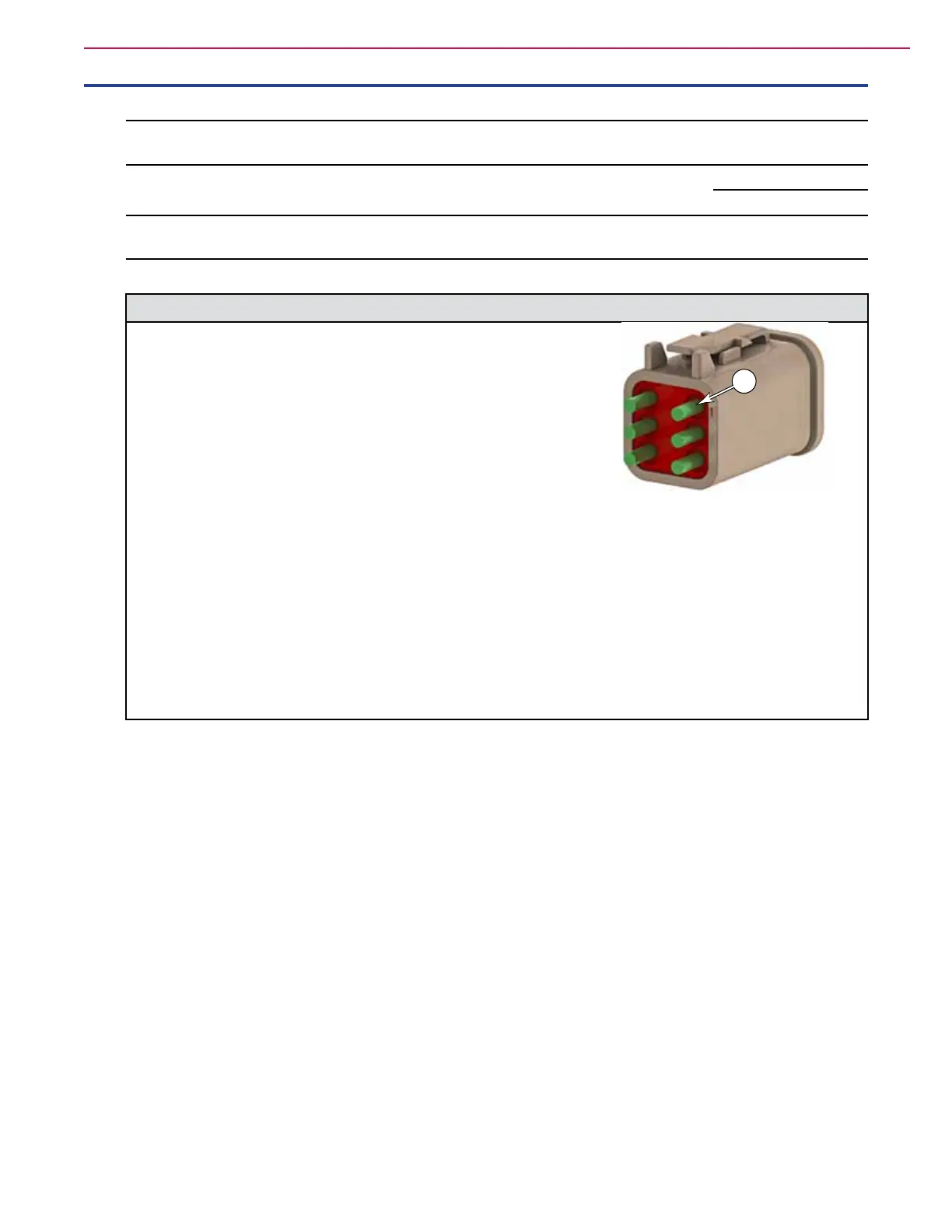

1. Measure the actuator motor resistance.
a. Disconnect the actuator connector.
b. Measure the resistance between contacts 1 and 2 of the
actuator connector.
• Make sure to check resistance in both forward and reverse
polarity, in case the actuator is stopped at a limit switch.
– If the resistance is less than 250 ohms, replace the actuator.
– If the resistance is greater than 250 ohms, continue.
2. Test the harness.
a. With the actuator still disconnected, power up the machine with Service mode access.
b. Navigate to the Output Test menu and command the M6 Squeegee Actuator to operate in one
direction, and then the other. Clear any errors as necessary to continue.
– If the motor overcurrent error occurs in both directions of travel, the motor wires (BLU/GRY &
ORN/GRY) are shorted to one another.
– If the error occurs in the UP direction but not the DN direction, either BLU/GRY shorted to
B-negative, or ORN/GRY shorted to B-positive.
– If the error occurs in the DN direction but not the UP direction, either BLU/GRY shorted to
B-positive, or ORN/GRY shorted to B-negative.
• Repair or replace the harness as appropriate.
1
