Driving wheel unit disassembly/assembly (continued)
Assembly

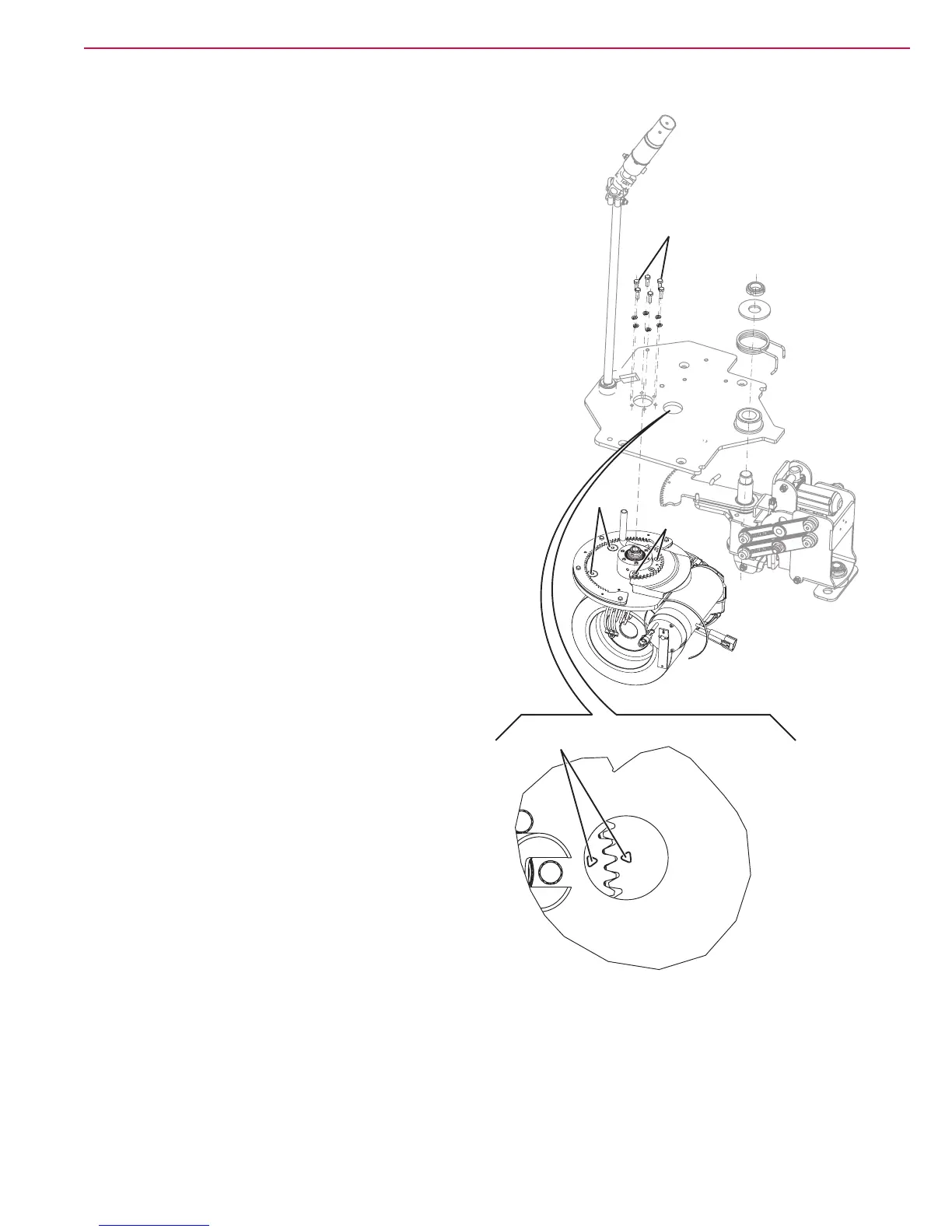

12. Assemble the components in the reverse order of
disassembly, and note the following:
◦ Tighten the screws (H) at 16 Nm.
◦ (Only for machines with disc brushes deck):
when installing the driving wheel assembly,
the gears must be coupled with the straight
wheel and the arrows (J) aligned as shown in
thegure.
◦ Tighten the screws (F, C and A) at 22 Nm.
J
F
C
A
