Driving Wheel System 129Service Manual – SC3000
Electromagnetic Brake Disassembly/Assembly
Disassembly
1. Place the machine on a hoisting system (if available), then lift it. Otherwise, drive the machine on a
leveloor.
2. Lower the brush deck.
3. Turn the ignition key to “0” and disconnect the batteries.
4. Turn the steering wheel to reach the electromagnetic brake.

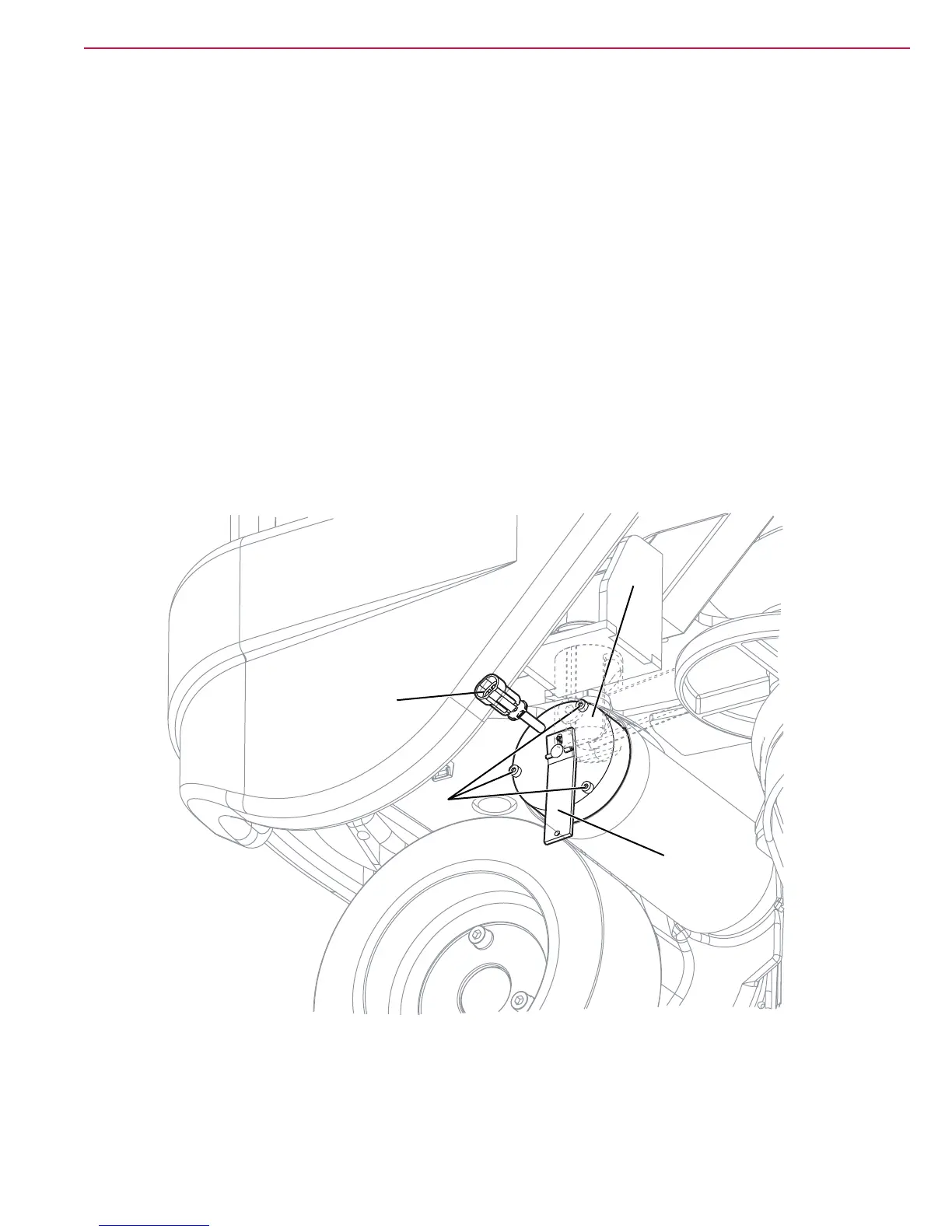

5. On the left side of the machine, remove the screws (A) and disconnect the connector (B).
6. Remove the electromagnetic brake (C).
Assembly
7. Assemble the components in the reverse order of disassembly, and note the following:
◦ Before installing the electromagnetic brake (C) clean it with compressed air.
◦ Install the electromagnetic brake with the lever (D) downwards.
8. After installing the electromagnetic brake check the parking brake.
A
D
C
B
P100388
