Connectors (continued)
M2 M1
J7A
J7B
J8
J9
J1
J3
J4
J2
J5
J6
VA-
VA+

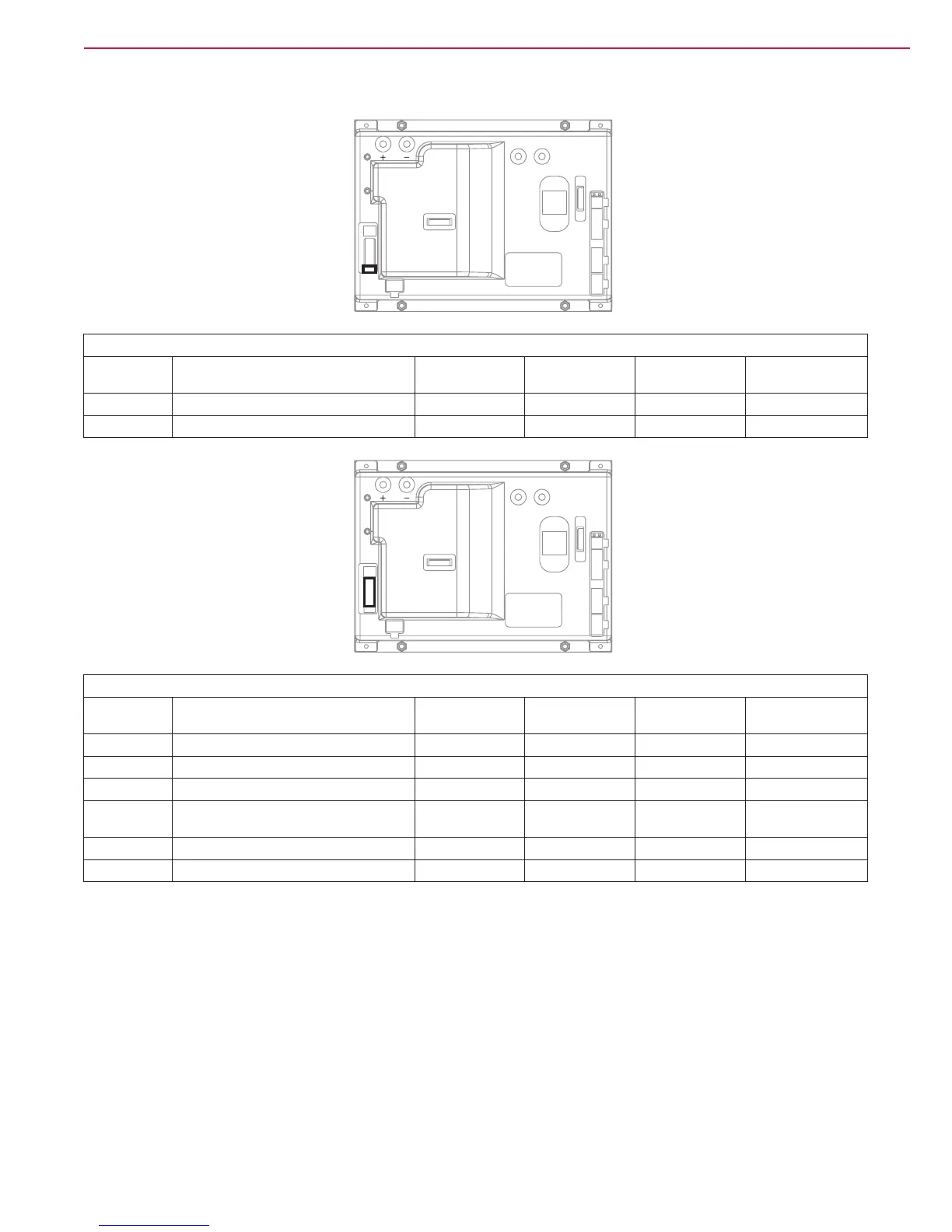

J5: MOLEX MINIFIT type, 2-ways vertical
PIN Description
Electronic board
in/out
V ref. I max. Connected to
1 Driving wheel brake power supply + out 24V 1A BRK
2 Driving wheel brake power supply - out 0V 1A BRK
M2 M1
J7A
J7B
J8
J9
J1
J3
J4
J2
J5
J6
VA-
VA+
J6: TYCO MODU1 type, 6-ways vertical
PIN Description
Electronic board
in/out
V ref. I max. Connected to
1 Squeegee actuator power supply +/- out 0/24V 8A M6
2 Squeegee actuator power supply -/+ out 0/24V 8A M6
3 Flashing light power supply + out 24V <1A BE
4
Lamp / seat microswitch / oat power
supply -
out 0V <1A BE / SW1,2
5 Return from driver's seat microswitch in 0V <1A SW1
6 Return from oat in 0V <1A SW2
