Nilfisk-Advance SC3000 Service Manual

Control System 42Service Manual – SC3000

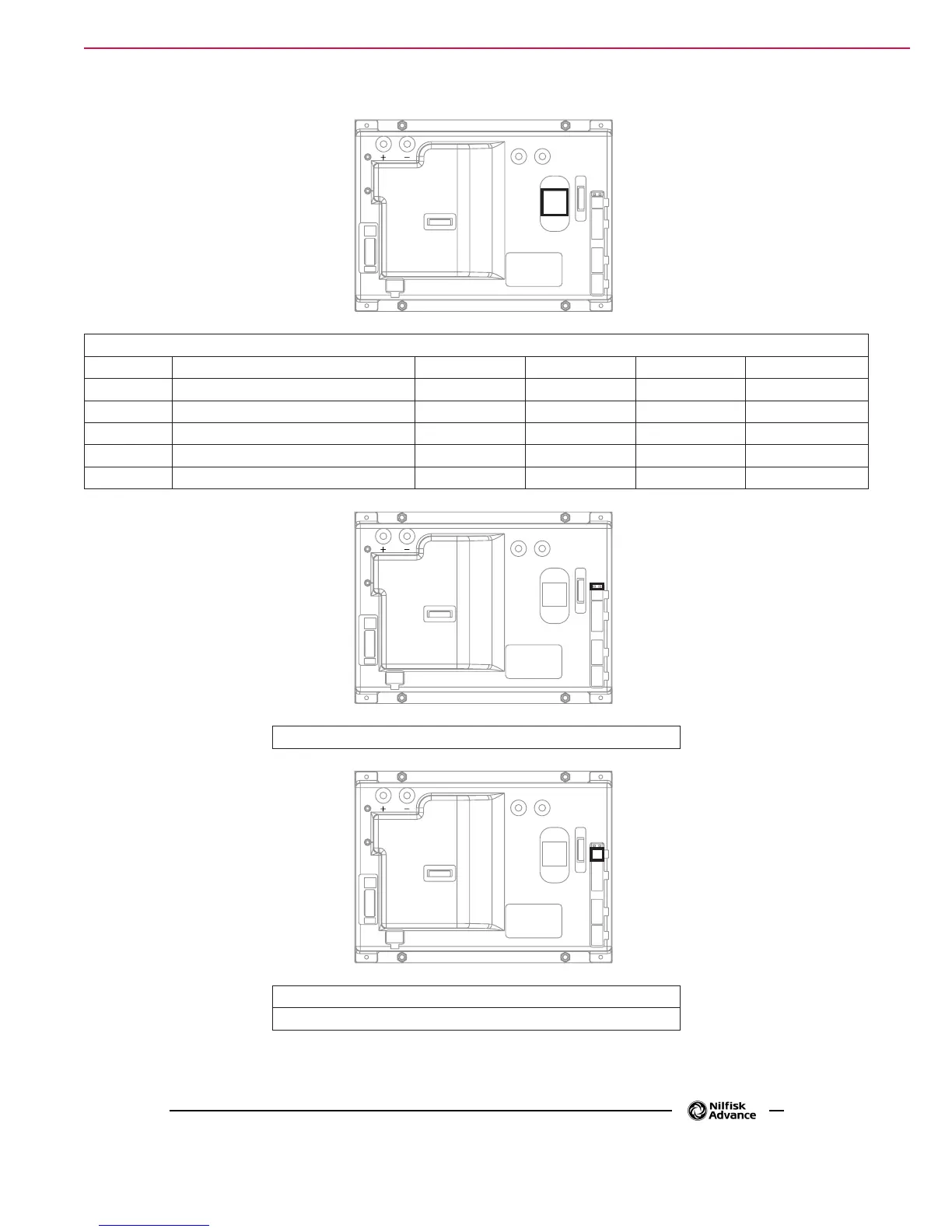

Connectors (continued)
M2 M1
J7A
J7B
J8
J9
J1
J3
J4
J2
J5
J6
VA-
VA+
J7: PRESSURE SWITCH connector, Berger type, 3+3-ways vertical ( )
A1 Pressure switch power supply + out 5V <1A Press.A1
A2 Pressure switch power supply - out 0V <1A Press.A2
A3 - - - - Press.A3
B1 - - - - Press.B1
B2 Pressure switch signal + in 0-5V <1A Press.B2
B3 Pressure switch signal - in 0V <1A Press.B3
M2 M1
J7A
J7B
J8
J9
J1
J3
J4
J2
J5
J6
VA-
VA+
J8: JUMPER, 2-ways vertical
M2 M1
J7A
J7B
J8
J9
J1
J3
J4
J2
J5
J6
VA-
VA+
J9: MOLEX MINIFIT type, 4-ways vertical
Connector for parameter programming
