Scrub System, Cylindrical 73Service Manual – SC3000
Brush Motor Disassembly/Assembly
Disassembly
1. Remove the cylindrical brush deck (see the procedure in “Cylindrical Brush Deck Disassembly/
Assembly” paragraph).
2. On the machine side where the brush motor has to be removed, unscrew the knobs and remove the side
skirt assembly.

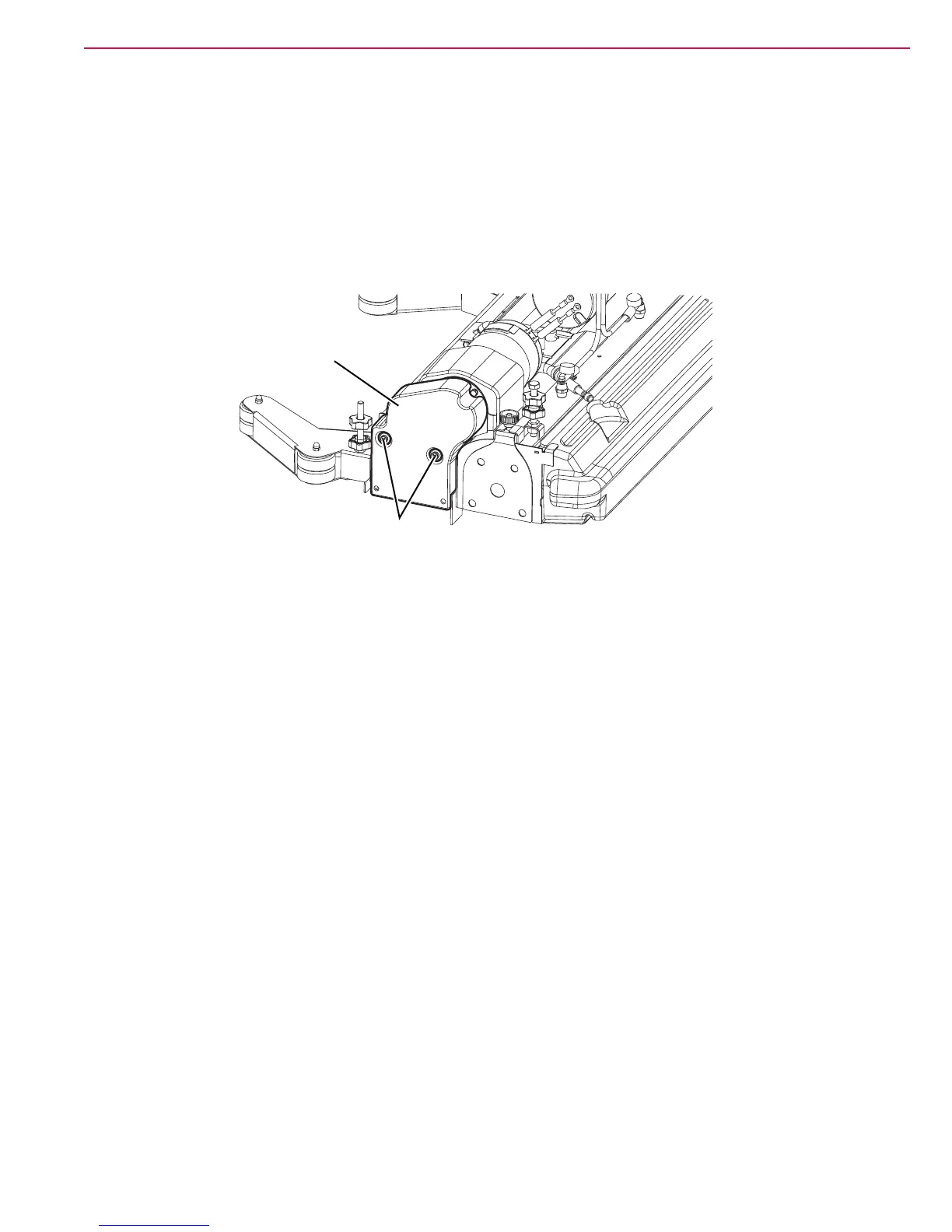

3. Remove the screws (A) and remove the case (B).
A
B
P100379
