Scrub System, Cylindrical 74Service Manual – SC3000
Brush Motor Disassembly/Assembly (continued)
5. Remove the guard (C).
6. Loosen the nut (D) and move the pulley (E) to loosen the belt (F).
7. Remove the belt (F).
8. Remove the screws (G).
9. Remove the motor (H).
Assembly
10. Assemble the components in the reverse order of disassembly, and note the following:
◦ The electrical connections (L) of the motor (H) must be turned to the rear side of the cylindrical brush
deck.
◦ The connection (J) of the carbon brush protection clamps (I) must be positioned as shown in the g-
ure.
◦ Install the belt (F) and tension it properly (see the procedure in the relevant paragraph).
Note: For further information on deck components see the Parts List.
D
C
E
H
I
J
F
E
G
L

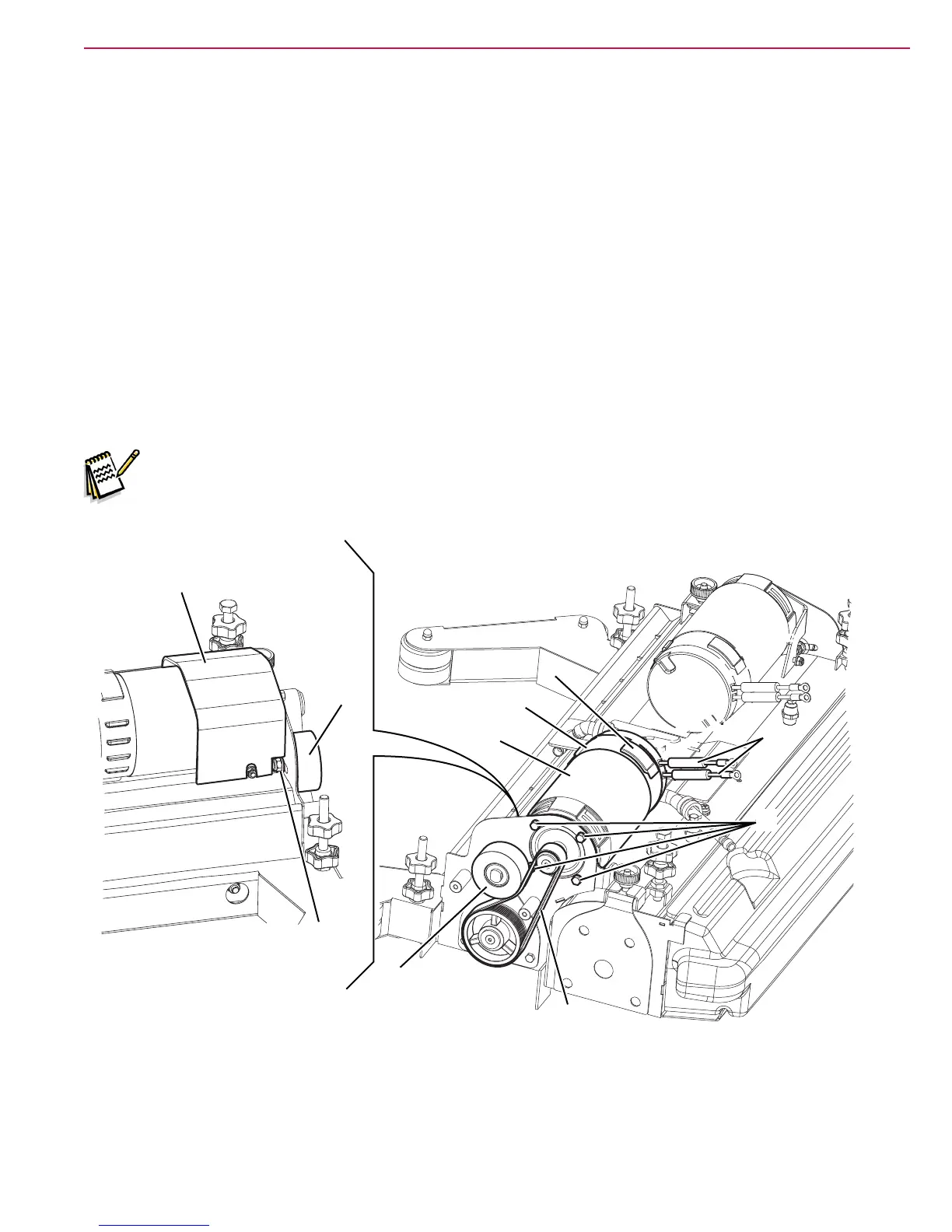

P100379
