167Service Manual – SC401, SCRUBTEC 344 40 - Recovery System
Container and Vacuum Motor Disassembly/Assembly (continues)

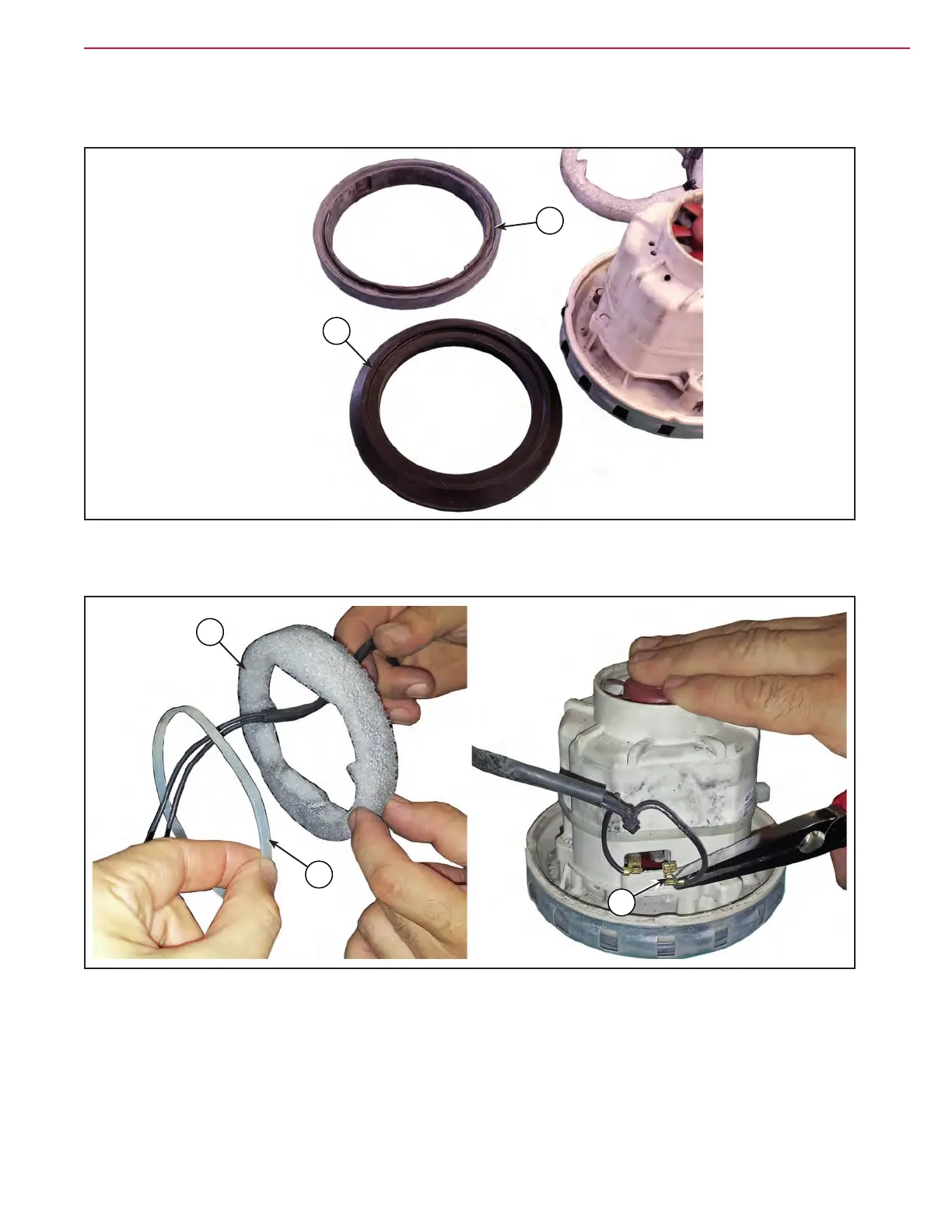

10. Save the gaskets (L) and (M).
Figure 10:
M
L
11. Remove the save the clamp (N) and the dividing sponge (O), then disconnect the connections (P).
P
Figure 11:
O
N
12. Clean the inside of the containers to remove any dirt which has accumulated, and check all gaskets for
wear; replace if necessary.
