Recovery System - Cable Version 54Service Manual – SC450
Recovery System - Cable Version
Functional Description
The water recovery system removes the dirty water
from the oor and pipes it to a recovery tank. When
the machine is running, the dirty water on the oor is
collected by the squeegee blades and collected through
the slots in the same, piped through the vacuum hose
and into the tank by the airow created by vacuum
motor (M2). The dirty water is piped into the recovery
tank, while the airow continues to the vacuum fan.
The vacuum system motor (M2) is supplied by the
switch (SW2).
The automatic oat in the vacuum grid stops vacuum
system motor (M2) from collecting any liquids.
When the automatic oat closes and shuts down the
vacuum system, the vacuum system motor noise will
increase and the oor will not be dried.
When the recovery tank is full it can be emptied
through the drain hose.

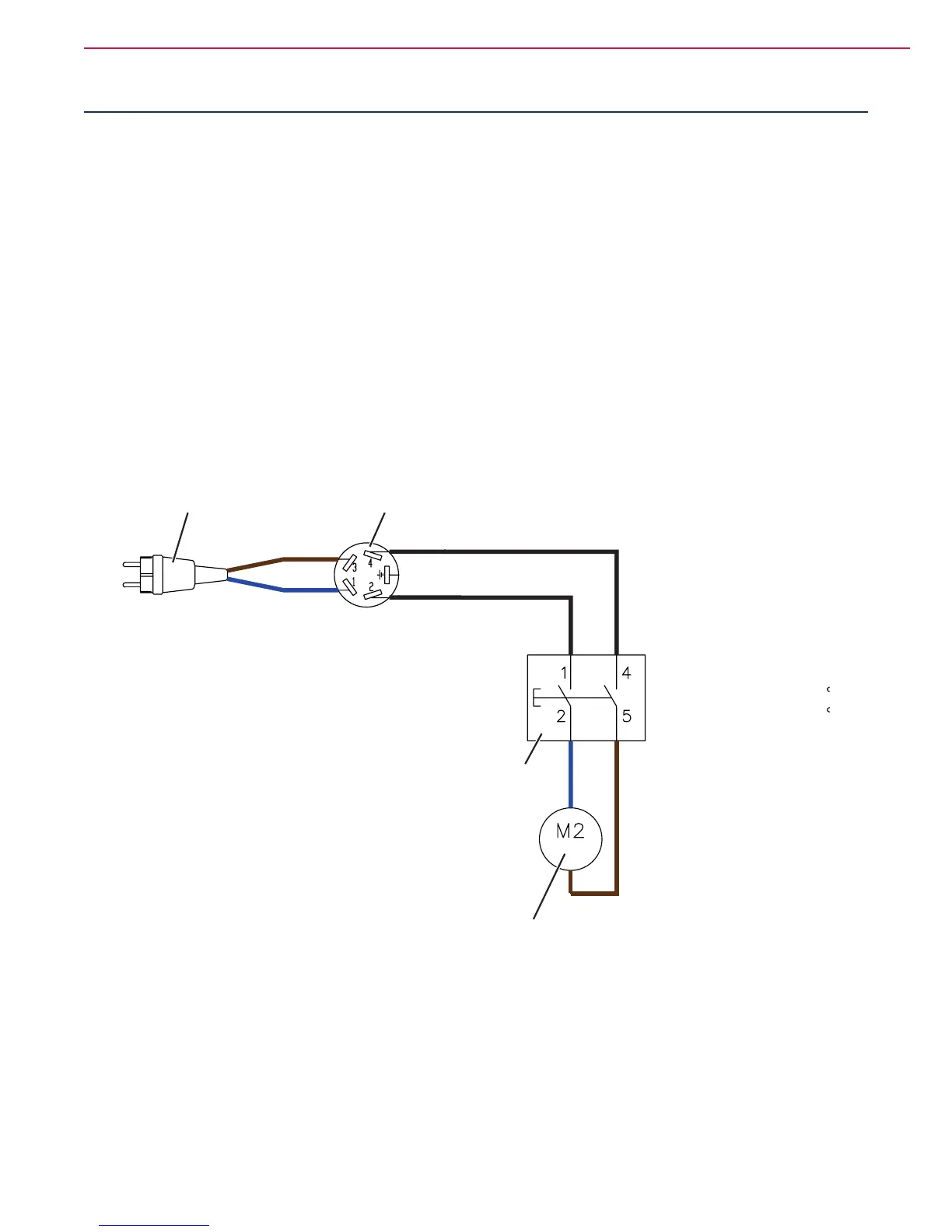

Wiring Diagram
MAINS FILTER (FL1)
VACUUM MOTOR (M2)
MAINS PLUG (PL)
VACUUM SWITCH (SW2)
P200017C
