Nilfisk-Advance SC450 Service Manual

Solution System - Cable Version 88Service Manual – SC450
Maintenance and Adjustments
Solution Filter Cleaning
1. Drain the solution tank.
2. Drive the machine on a level oor. Make sure that the machine cannot move independently.
3. Check that the control panel switches are turned to “0”. Disconnect the battery connector (red).

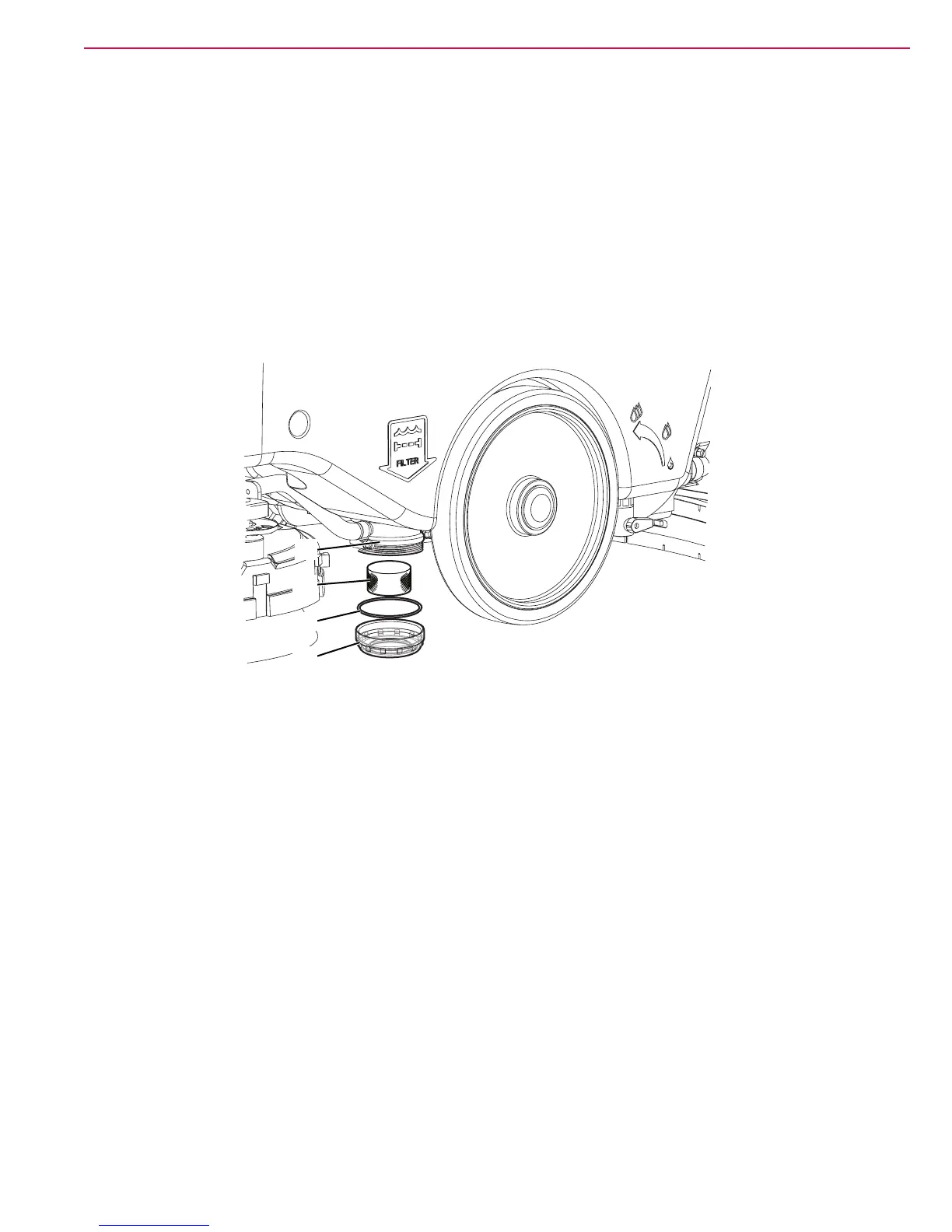

4. On the machine lower side, in front of the left centre wheel, unscrew the transparent cover (A) with the
gasket (B), then remove the lter strainer (C). Clean and install them on the support (D); install the
gasket (B) and the lter strainer (C) properly on the cover (A) and on the support (D).
5. Connect the battery connector (red).
A
B
C
D
P200035

Nilfisk-Advance SC450 Specifications

General

Model	SC450
Type	Walk-behind scrubber
Power Source	Battery
Voltage	24 V
Cleaning Width	450 mm
Squeegee Width	450 mm
Brush Motor Power	550 W
Machine Width	450 mm
Machine Length	850 mm
Machine Height	850 mm
