Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 112
Squeegee System
Functional Description
The squeegee collects the water so that the recovery system vacuum can suck it up o the oor and store it in the recov-
ery tank. The squeegee support is spring loaded downward to push the squeegee against the oor, and has a pivot point
that allows the squeegee to “swing” around corners. The squeegee tool rides along the oor on two small wheels and
is raised and lowered with a hand operated lever. To prevent damage to the squeegee tool in the event that the tool is
caught by an obstacle, it is mounted to the support frame in sloed holes and is fastened by two hand ghtened “wing
nuts”. The squeegee angle can be adjusted for opmum oor wiping. The squeegee tool has a front and a rear blade.
Each blade has 4 working edges that can be used before the blade is replaced. The front squeegee blade has slots along
the boom edge to allow the necessary air ow to carry the water. The rear squeegee blade edge is at.

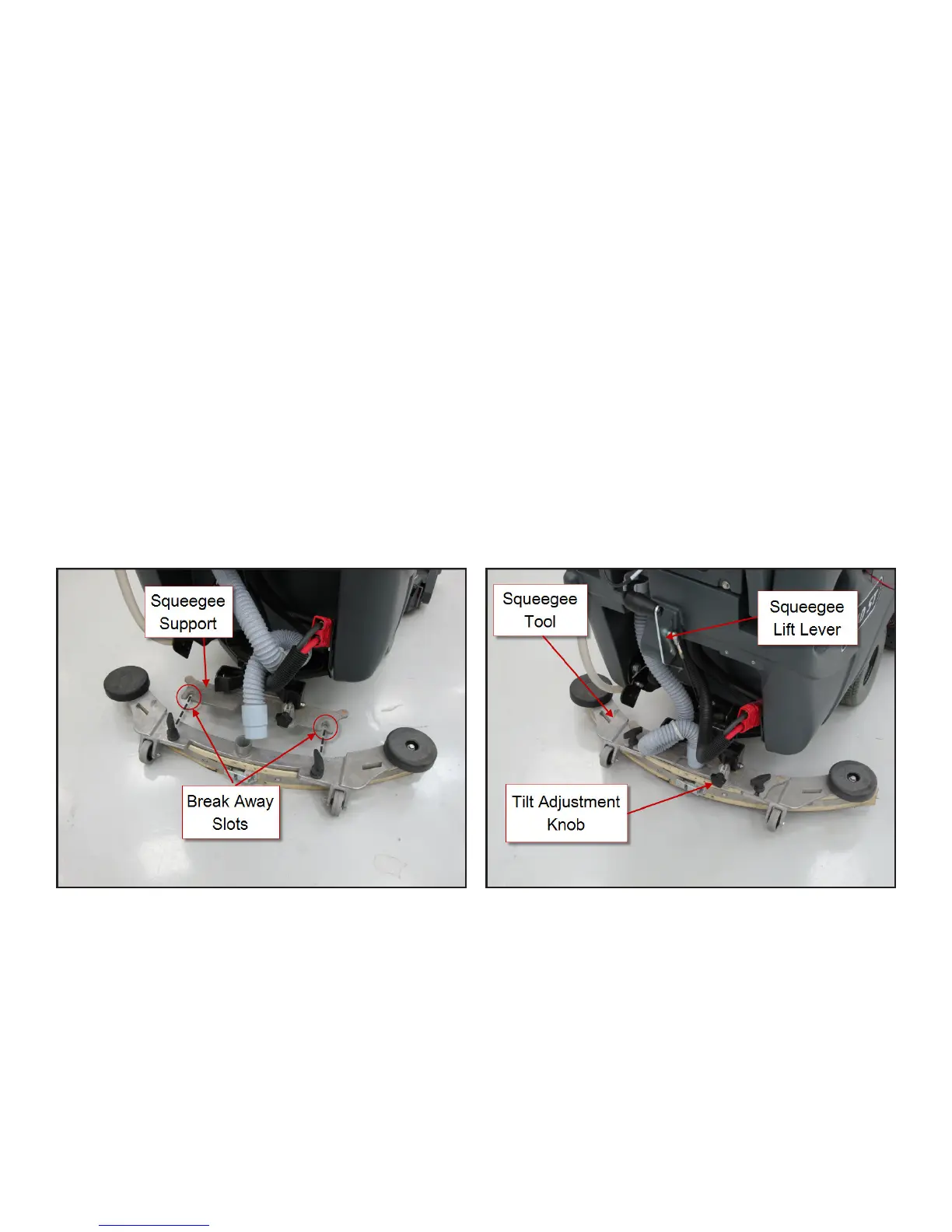

Component Locations
• Squeegee Support
• Squeegee Tool
• Squeegee Li Lever
• Break Away Slots
• Tilt Adjustment Knob
