Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 17
Chassis System
Functional Description

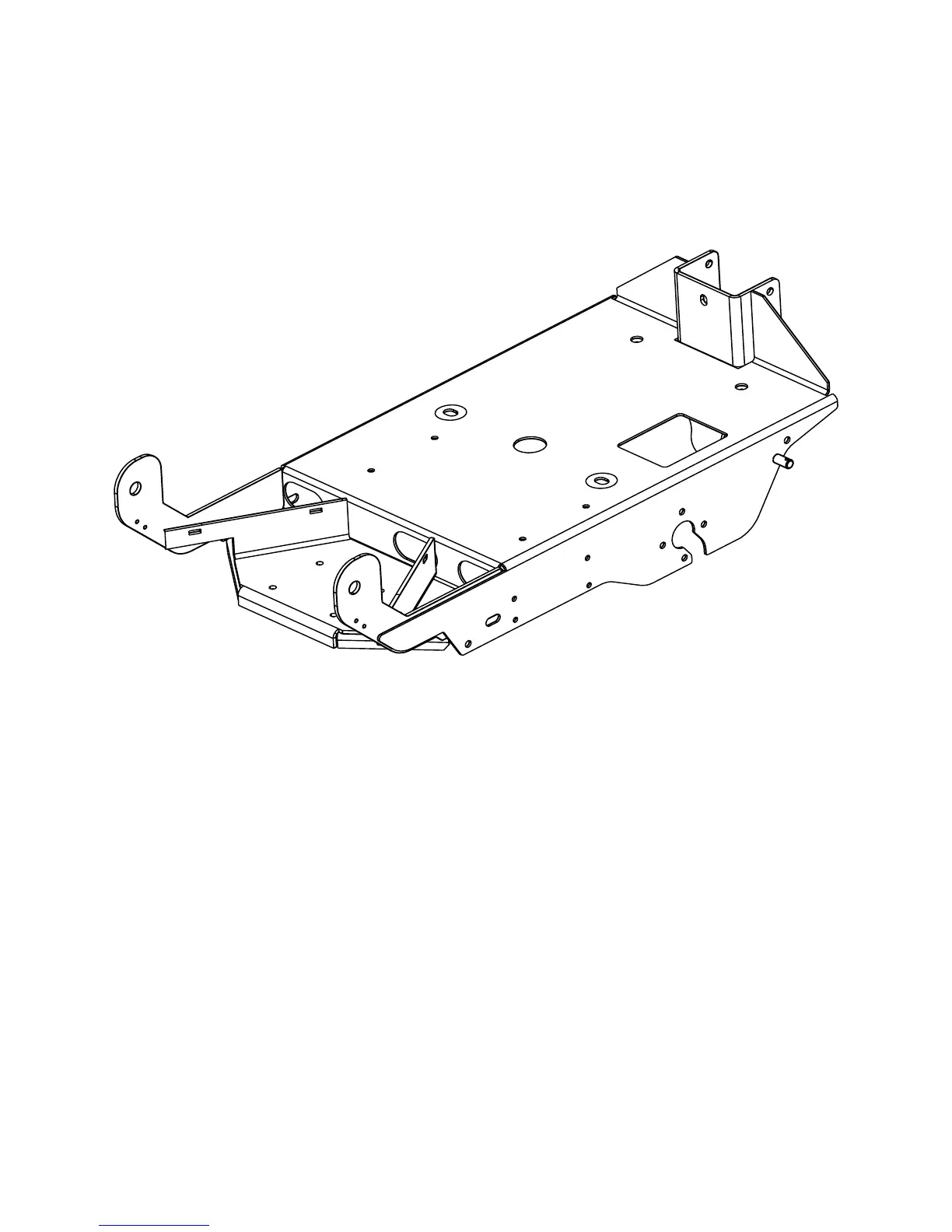

The chassis is made up of heavy gauge steel and supports the drive transaxle, caster wheel, brush deck, squeegee assem-
bly and machine body.
