Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 16
Lubricating the Machine

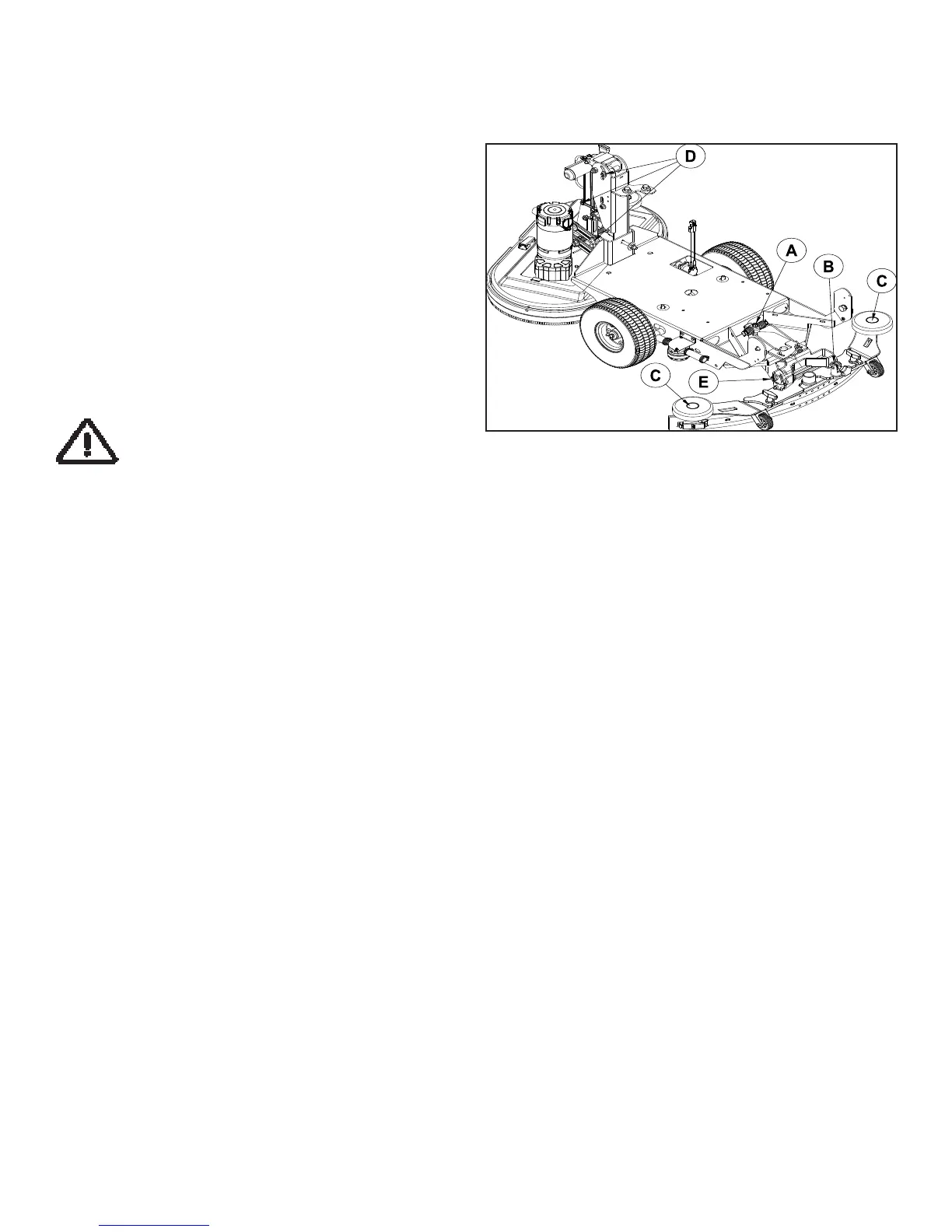

Once a month, apply light machine oil to lubricate the:
• General Pivot Points for the Squeegee Linkage (A).
• Squeegee mount angle adjustment knob threads (B).
• Squeegee Tool end wheels (C).
• General Pivot Points for the Brush Linkage (D).
• Scrub deck bumper wheels.
Once per quarter, grease the following
• Rear Caster Wheel Swivels (E).
WARNING!
Turn the key switch o and disconnect the baeries before servicing the machine.
