Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 116
Wheel System Non-Traction
Functional Description
A single caster wheel mounted to the back of the frame allows the machine to pivot easily. The wheel is aached with 4
bolts that are screwed into threaded holes in the frame.
Component Locations

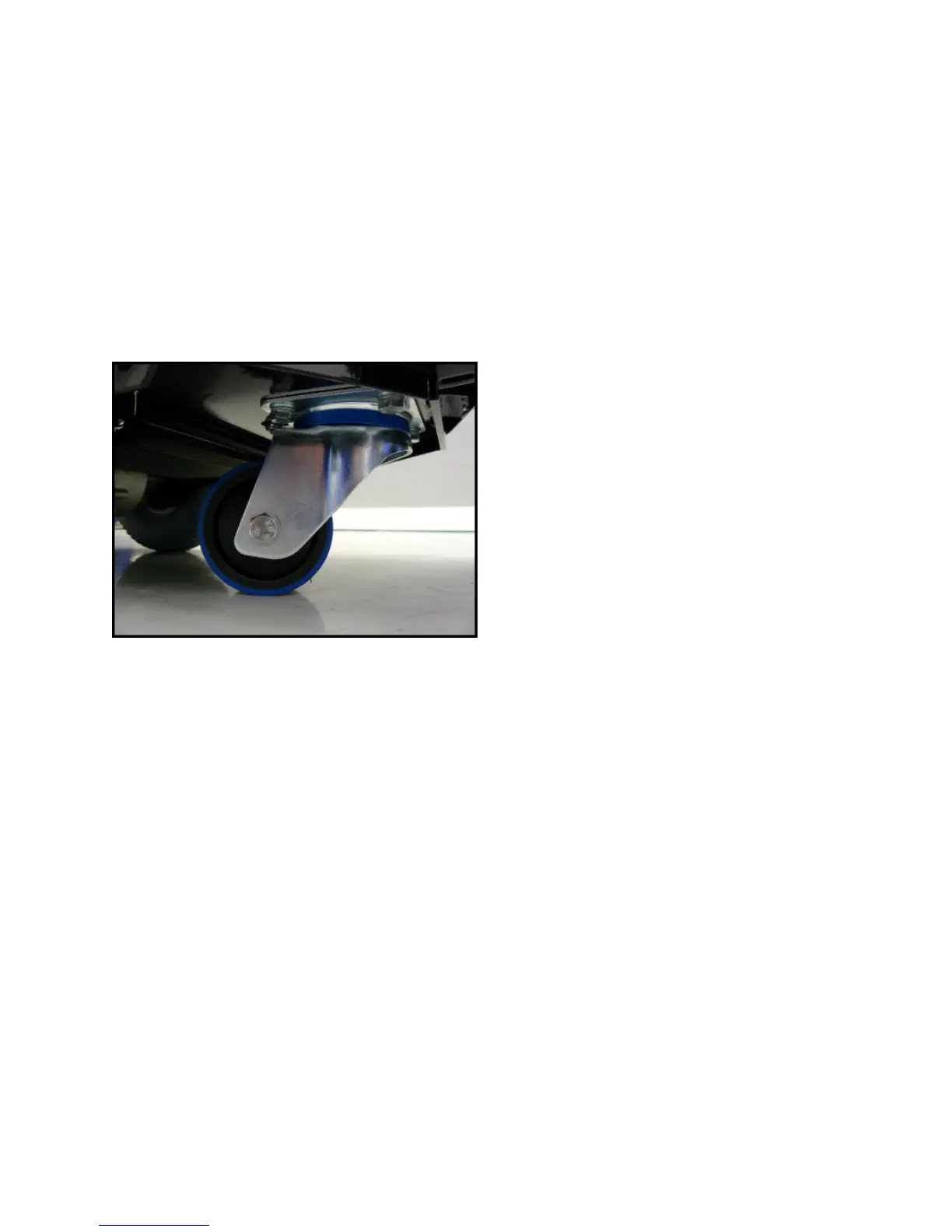

• Caster Wheel
