Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 113
Maintenance and Adjustments
Adjusting Squeegee Tilt
The lt of the squeegee causes the rear blade to rise up in the center or on the ends, depending on which direcon the
lt is changed.
1. Park the machine on a at, even surface and lower the squeegee.

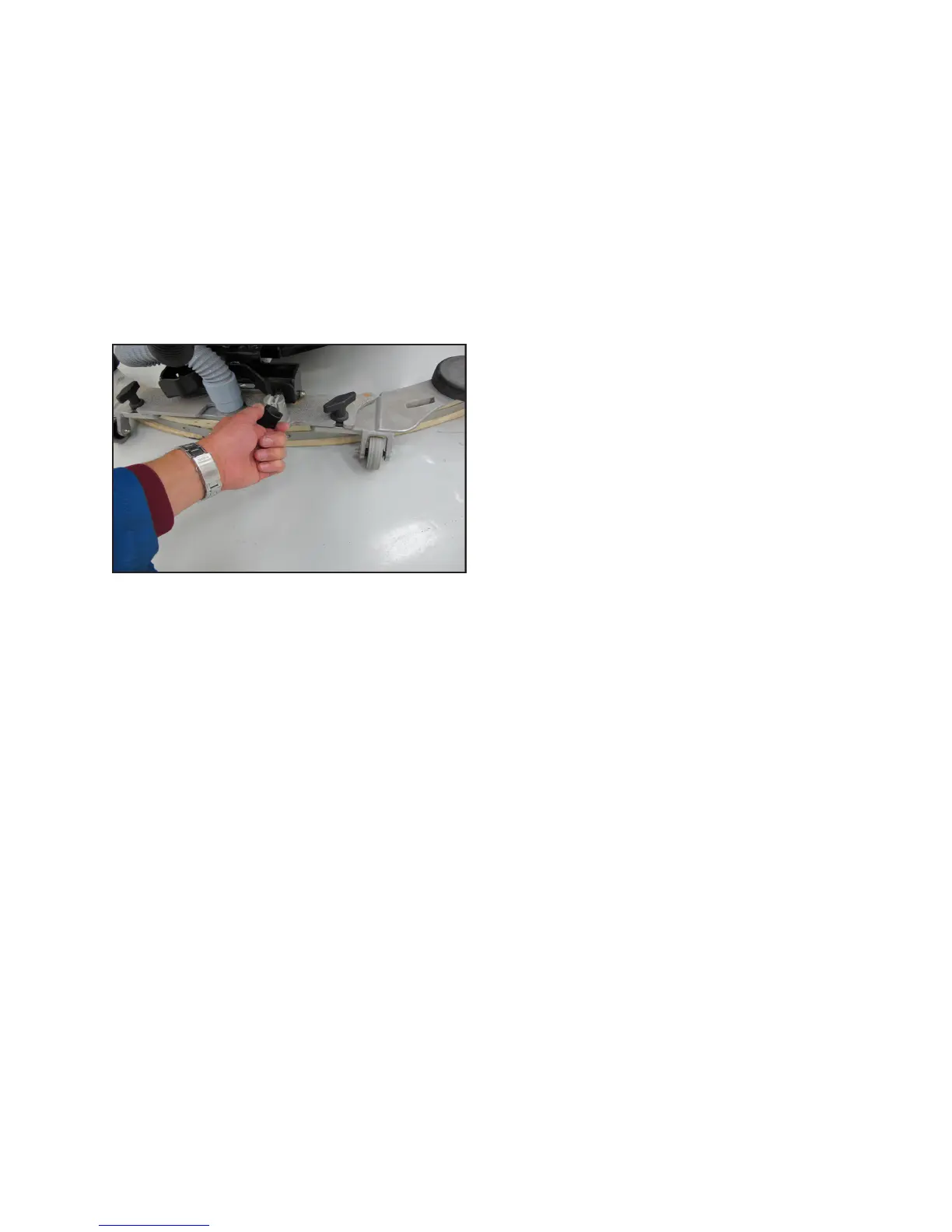

2. While moving the machine forward slowly, turn the Squeegee Tilt Adjustment Knob unl the rear squeegee
blade ares evenly across the enre width of the squeegee.
Troubleshooting
Leaving Streaks on the Floor
Possible Causes
• Debris between squeegee blade and oor
• Squeegee blade edges are torn or worn
• Incorrect squeegee lt
• Broken squeegee springs
• Bent squeegee support
Removal and Installation
Squeegee Tool
1. Remove vacuum hose from tool.
2. Loosen both wing nuts.
3. Remove squeegee tool.
4. Reassemble in reverse order. Note: Over-ghtening the wing nuts can lead to damaging the squeegee tool by
