defeang the breakaway feature.
Squeegee Support
1. Remove squeegee tool.
2. Remove squeegee li cable from support.

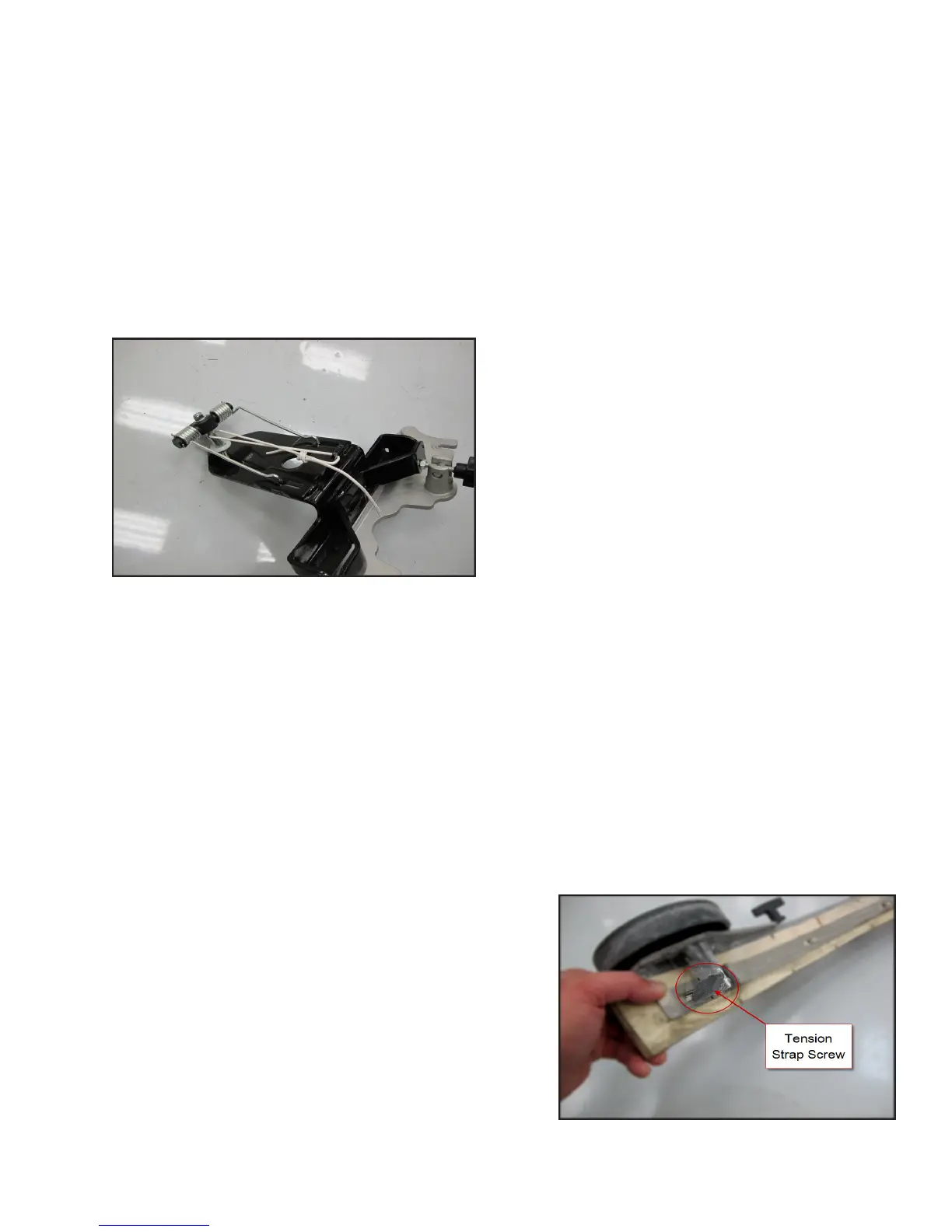

3. Service Tip: The force of the springs against the pivot bolt causes it to p backwards and makes it dicult to get
the assembly removed and back into place. Neutralize the spring force by liing the support up a bit against the
spring tension and e it up with a wire. See photo.
4. Remove the lower pivot mounng nut.
5. Remove squeegee support assembly.
6. Reassemble in reverse order.
a. Cut wire used to hold spring tension.
Squeegee Blades
Squeegee blades have 4 working edges. As an edge becomes worn, the blade should be removed and rotated so that a
new edge is against the oor facing forward.
Front Squeegee Blade
1. Remove squeegee tool.
2. Loosen the tension strap screw
3. Remove the tension strap.
4. Remove the blade.
5. Install blade on tool being careful to match the alignment
slots.
6. Install the tension strap.
