Noble UH30-E - Rinse Manifold

07610-004-45-09-D
44

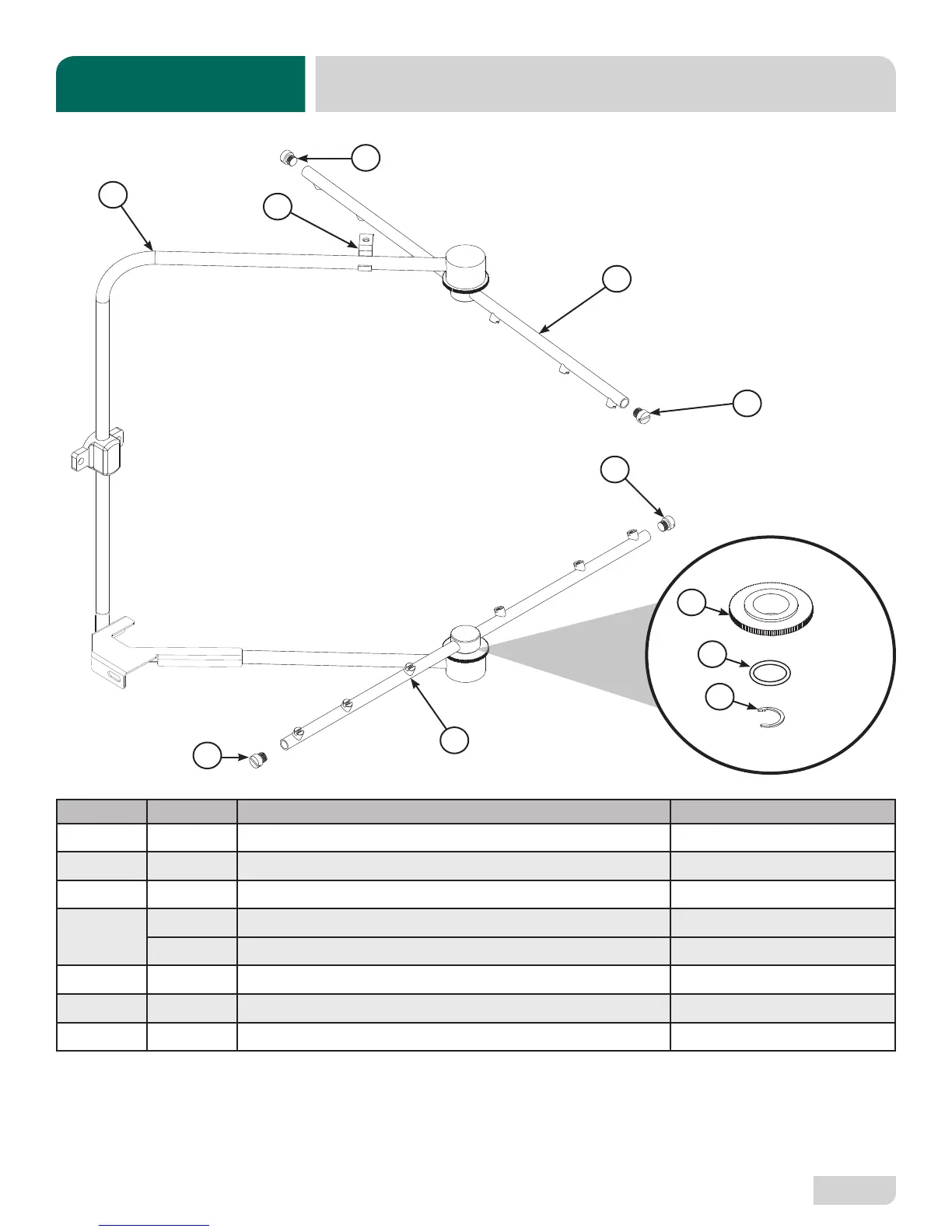

RINSE MANIFOLD
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Complete Rinse Manifold Assembly 05700-004-40-58
2 1 Pipe Clamp 05700-000-35-06
3 4 Rinse Arm End-cap 04730-111-60-41
4
2 Complete Rinse Arm Assembly 05700-004-39-39
2 Rinse Arm 05700-004-38-75
5 2 Bearing Assembly, Rinse Arm 05700-004-54-71
6 2 O-ring (included in item #5) 05330-002-60-69
7 2 Retaining Ring 05340-112-01-11
Rinse Arm Bearing Kit
06401-004-57-50
1
2
3
4
3
3
3
4
5
7
6
