07610-004-45-09-D
40

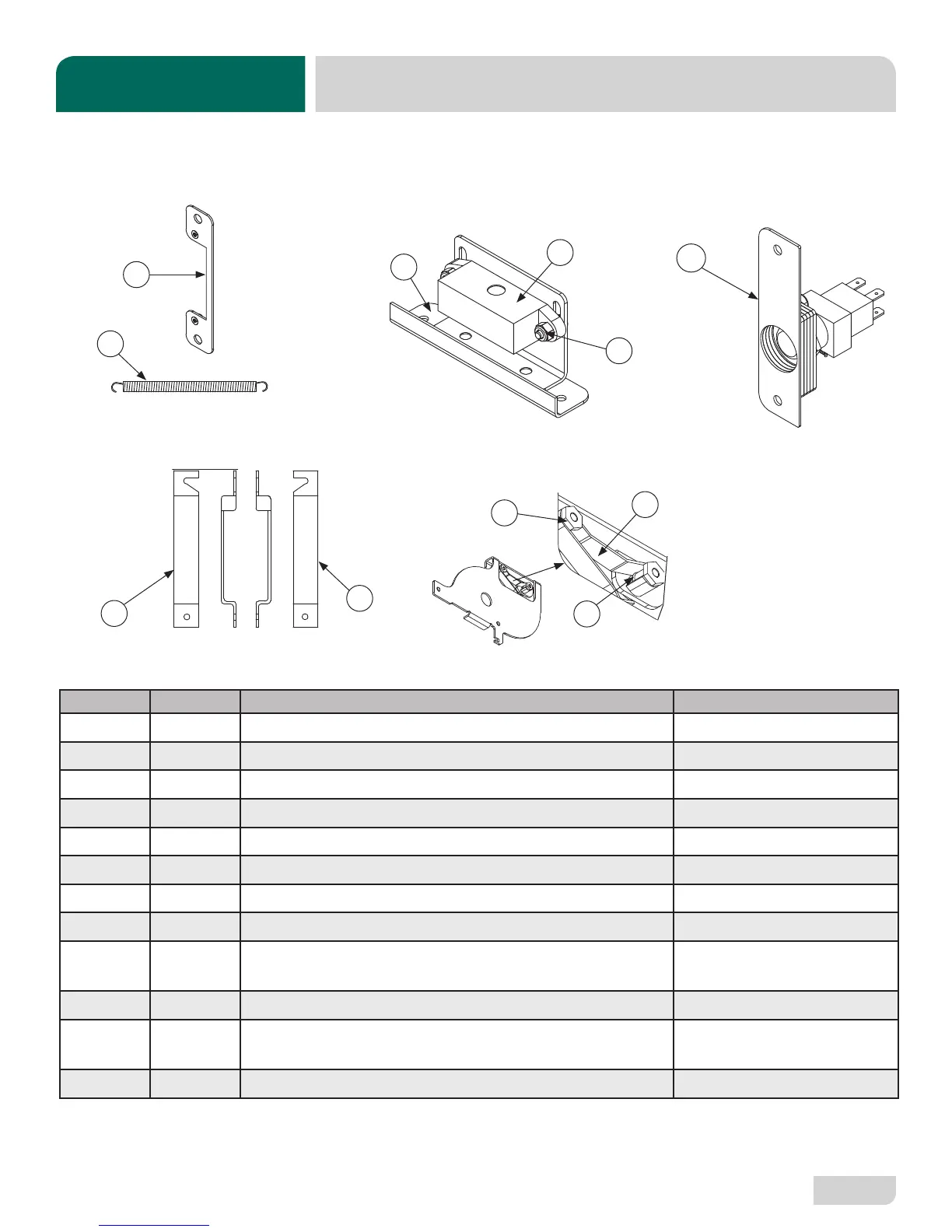

MISCELLANEOUS DOOR COMPONENTS
PARTS
5
Parts are not shown to scale in relation to each other.
4
3
2
1
7
6
8
9
10
11
ITEM QTY DESCRIPTION PART NUMBER
1 1 Switch Mounting Plate Assembly 05700-003-33-54
2 1 Door Spring 05700-003-32-85
3 1 Cover, Left Hinge Weldment 05700-004-36-80
4 1 Cover, Right Hinge Weldment 05700-004-36-81
Hinges secured with Locknut, 1/4-20 Hex with Nylon Insert 05310-374-01-00
5 2 O-ring 05330-003-32-34
6 1 Latch Spring 05700-003-32-32
7 2 Latch Nut 05700-003-32-33
8
2
2
Locknut, 6-32 Hex with Nylon Insert
Screw, 6-32 x 1/4”
05310-373-03-00
05305-171-01-00
9 1 Door Switch 05930-003-31-44
10
1
1
Door Switch Bracket
Door Switch & Bracket Assembly
05700-003-31-43
05700-003-32-21
11 1 Complete Switch Mount Assembly 06401-004-47-76
To Next Page
