MISCELLANEOUS PARTS
PARTS
1
2
3
4

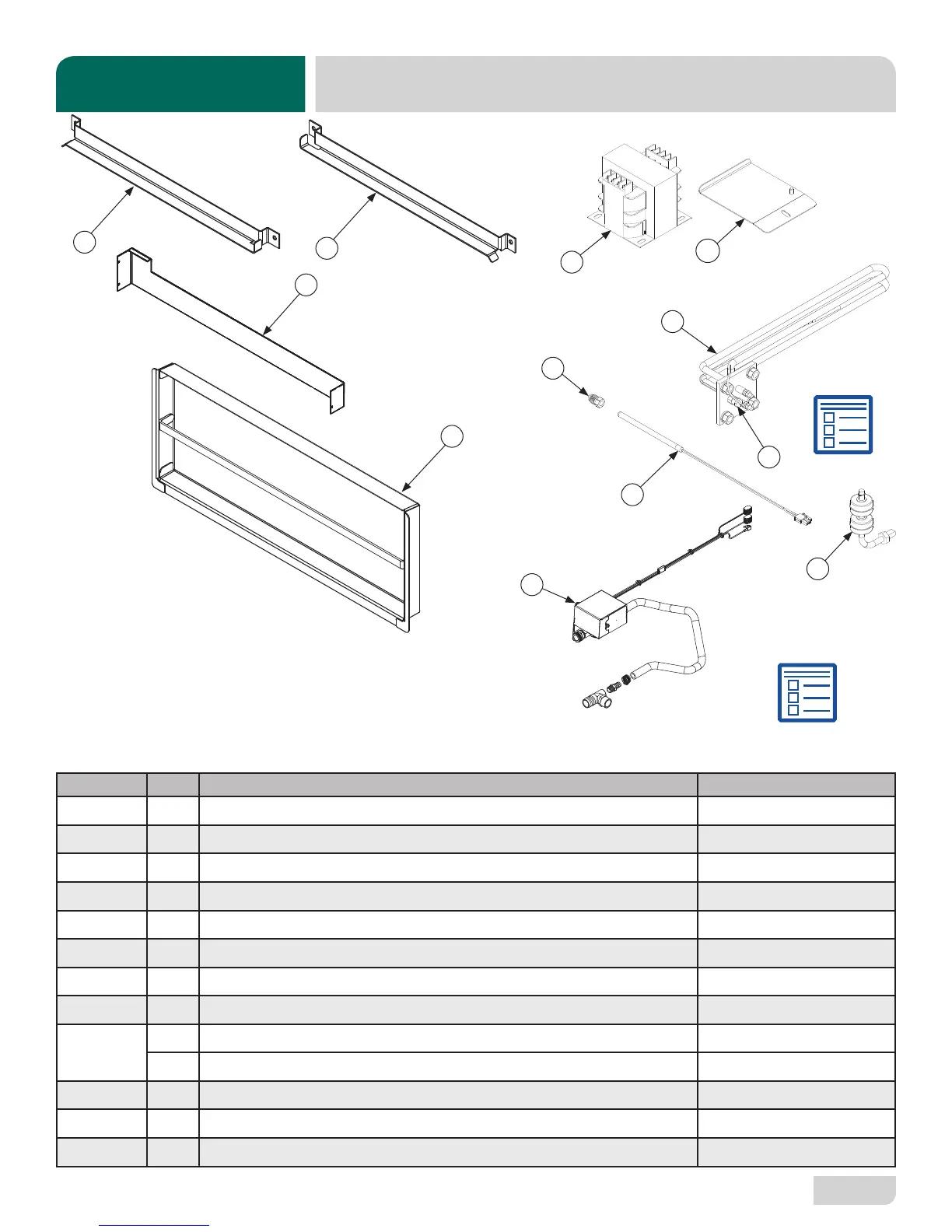

ITEM QTY DESCRIPTION PART NUMBER
1 1 Rail, Left Rack 05700-031-37-88
2 1 Rail, Right Rack 05700-031-37-88
3 1 Splash Shield 05700-003-33-51
4 1 Strainer 05700-004-09-43
5 1 Drain Water Tempering Kit, 208-230 V 06401-004-60-64
6 1 Dual Float Switch 06680-121-70-16
7 1 Thermistor Probe, 4" with 18" Cable 06685-004-34-58
8 1 Probe Fitting, 1/4" Brass 05310-924-02-05
9
1 Wash Heater, 4 kW, 208-230 V 04540-003-99-44
1 Wash Heater, 4 kW, 460 V 04540-004-12-29
10 1 Thermostat, Wash Tank High-limit with Compression Fitting 05930-004-33-15
11 1 Transformer, 460 V 05950-011-50-70
12 1 Transformer Bracket, 460 V 05700-004-44-55
Parts are not shown
to scale in relation
to each other.
6
7
8
9
10
11
12
5
208-230 V Drain Water Tempering
Kit Install Instructions
Wash Heater
Replacement
Instructions


