Noble UH30-E - Stands and Miscellaneous Parts

07610-004-45-09-D
56

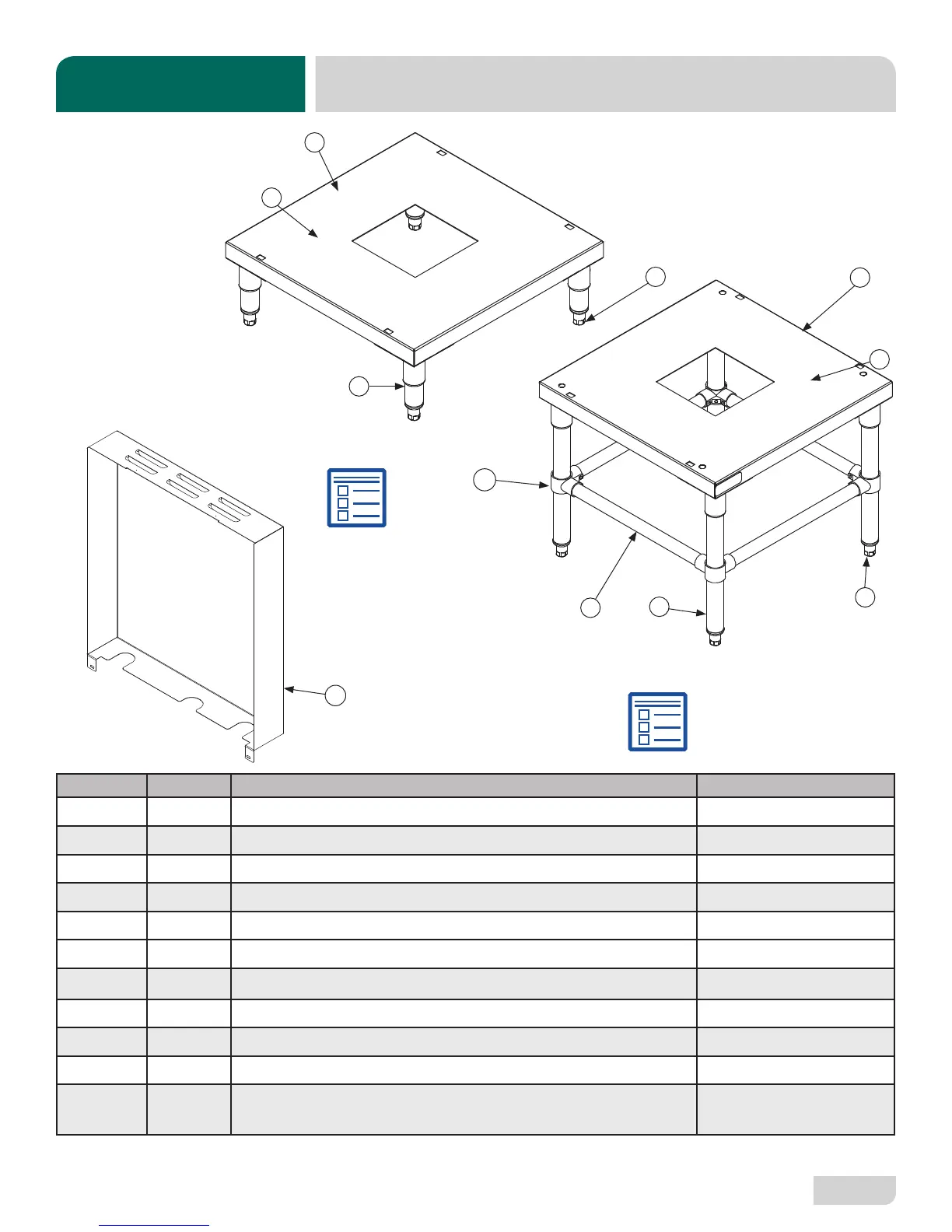

STANDS & PANELS
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 6” Stand Assembly 05700-003-34-24
2 1 Stand 05700-002-88-82
3 4 6” Leg 05700-021-61-10
4 4 Bullet Foot 05340-108-01-03
5 1 18” Stand Assembly 05700-003-34-25
6 1 Stand 05700-002-88-82
7 4 Bullet Foot 05340-108-01-03
8 4 18” Leg 05700-002-89-47
9 4 Cross Brace 05700-003-25-90
10 4 Cross Member Bracket 04730-003-25-89
11
11a
1
3
Back Panel
Edge Guard, Back Panel (Not Shown)
05700-004-58-14
05330-002-83-04
1
2
3
4
5
10
9
8
7
6
6" Stand
Install Instructions

18" Stand
Install Instructions

11
