Noble UH30-E - UH30-E-SEER Plumbing

07610-004-45-09-D
48

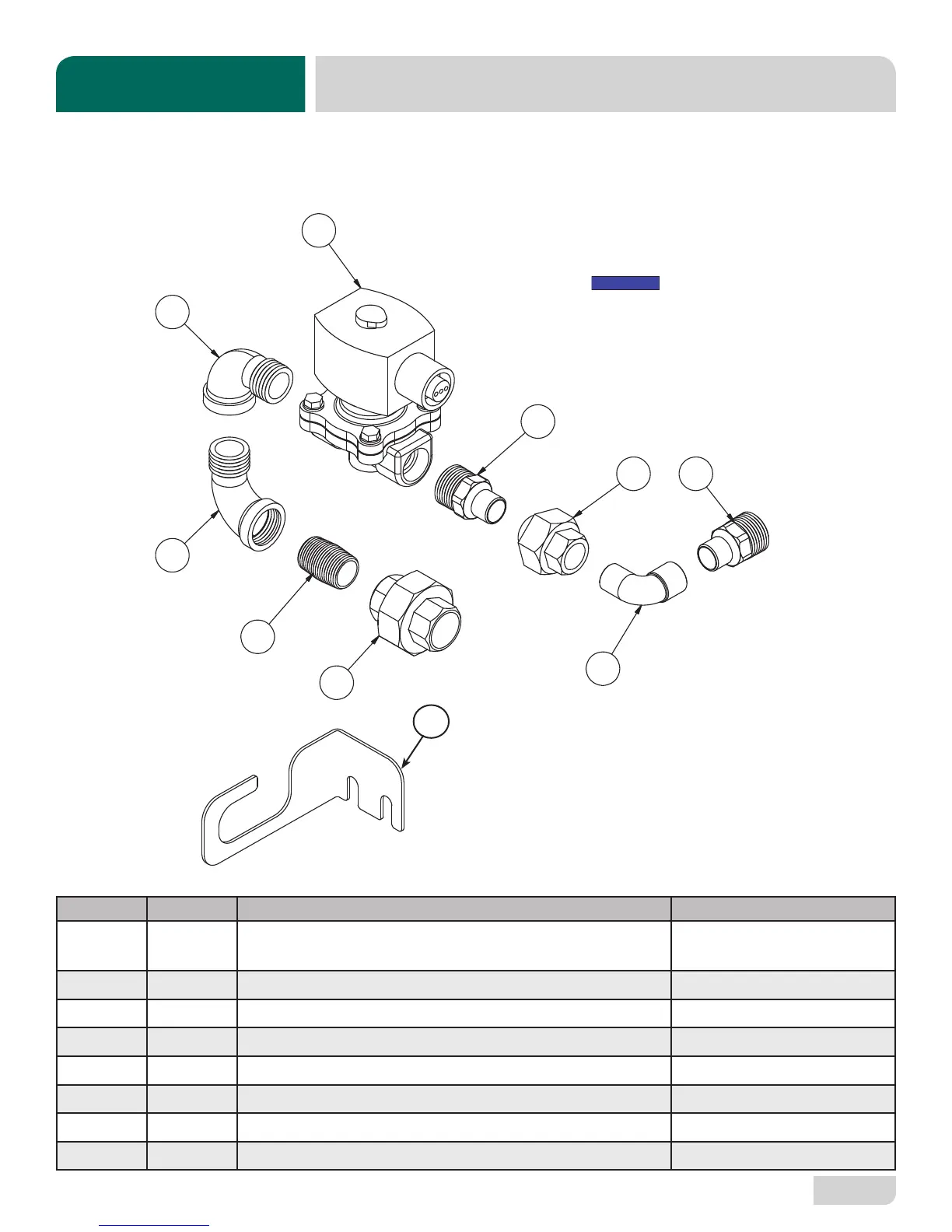

UH30-E-SEER PLUMBING
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1
Valve, 1/2", 208/230 V
Valve, 1/2", 115 V (for 460 V Machine)
04810-003-71-56
04810-003-71-55
2 2 Elbow, 90-Degree, 1/2" Street Brass 04730-206-08-00
3 2 Adapter, 1/2" 04730-011-59-53
4 1 Elbow, 1/2" 04730-406-31-01
5 1 Union, 1/2" 04730-412-05-01
6 1 Nipple, 1/2" Close Brass 04730-207-15-00
7 1 Union, 1/2" x 1/2" Brass 04730-003-62-44
8* 1 Bracket, Plumbing Support 05700-004-56-19
For water connection point, see
next page, item B on the
UH30-E-SEER Dimensions
page, and item #27 on the
SEER System page.
NOTICE
Complete SEER Plumbing Assembly, 208/230 V
05700-004-53-98
Complete SEER System Assembly, 460 V
05700-004-51-94









8*
*Item not included in part number of complete SEER
plumbing assembly and must be ordered separately.
