System Overview
30
7210 SAS-M CHASSIS INSTALLATION GUIDE
3HE 10089 AAAA TQZZA Edition 01 Issue: 07

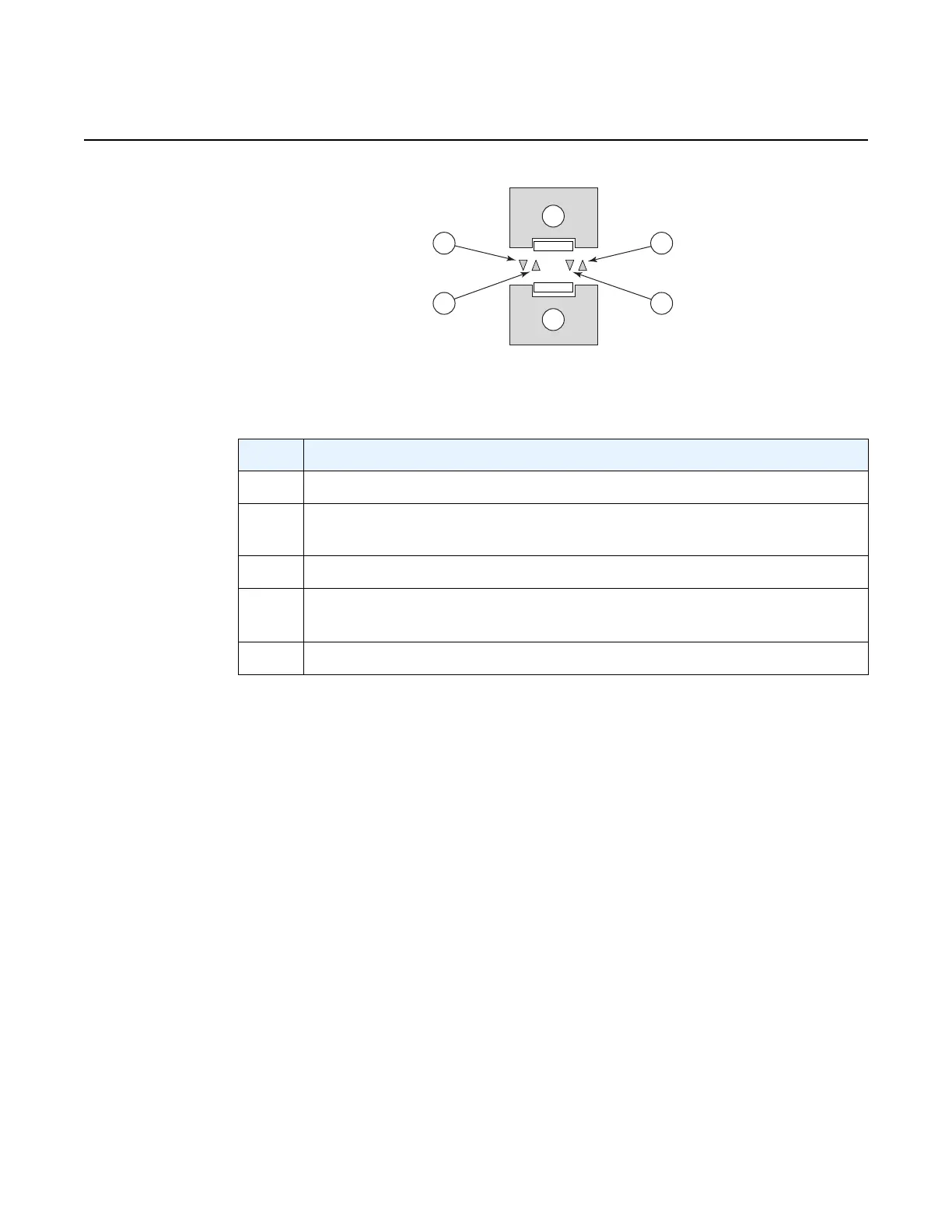

Figure 9 SFP Port LEDs
Table 9 Port LED Key Descriptions
Key Description
1Reserved
2 LED that indicates status for an odd-numbered port. Odd-numbered ports
are in the top row.
3Reserved
4 LED that indicates status for an even numbered port. Even-numbered
ports are in the bottom row.
5SFP slots
1
2
3
4
5
5
SR72007
