Nokia 7210 SAS-M Series User Manual

System Overview
28
7210 SAS-M CHASSIS INSTALLATION GUIDE
3HE 10089 AAAA TQZZA Edition 01 Issue: 07
2.4.7 System LEDs and Buttons
The LEDs are located on the front panel and the power module trays. See Figure 8
for the location of the system LEDs and buttons, Table 6 for key descriptions, and
Table 7 for alarm descriptions.

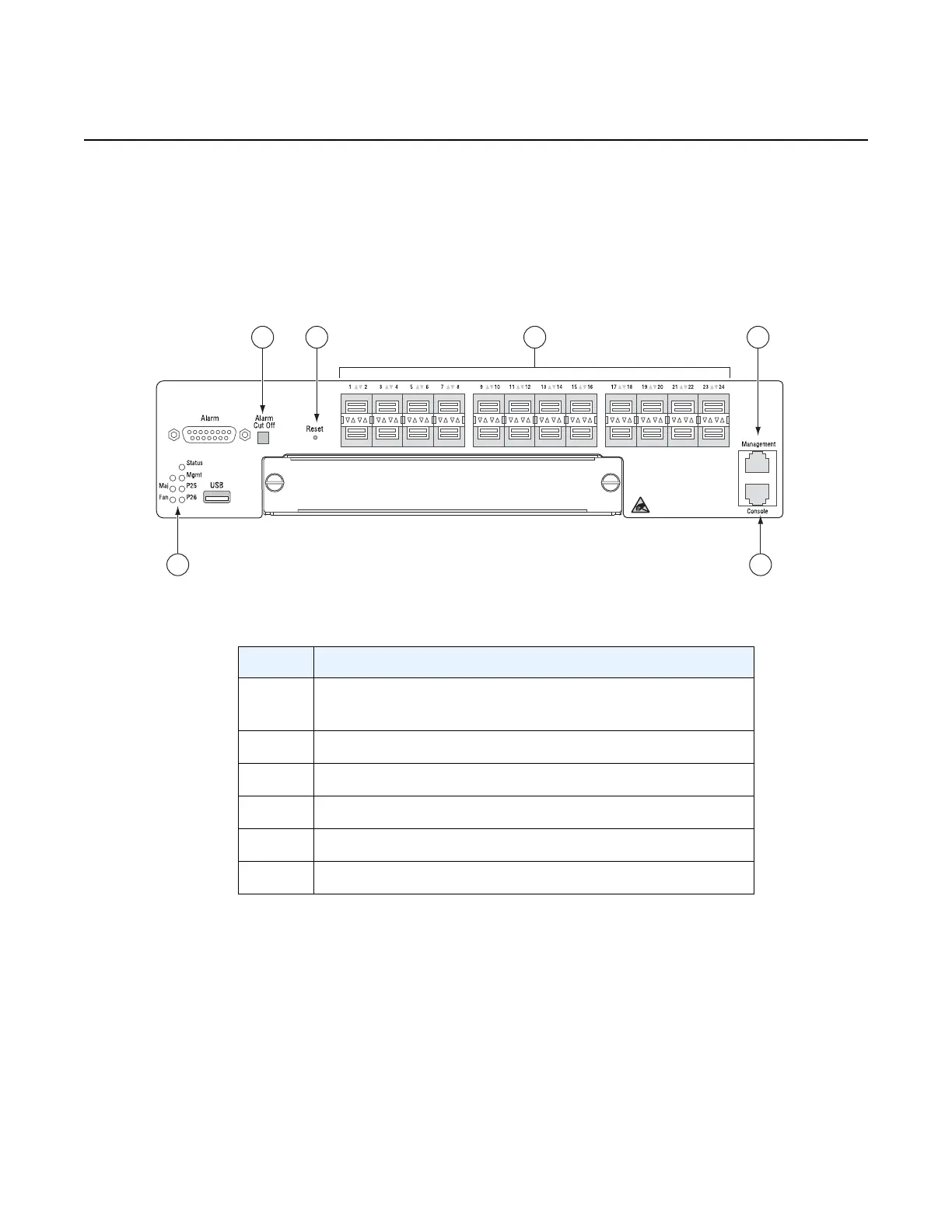

Figure 8 System LEDs and Buttons
Crit
32 54
1 6
SR72025
Table 6 7210 SAS-M System LEDs and Buttons
Key Description
1 Alarm LEDs and 10G port LEDs for 7210 SAS-M 24F
2XFP and 7210 SAS-M 24F 2XFP ETR only
2 Alarm Cut Off button
3 Reset button
4 100/1000 SFP port LEDs
5 Management port
6 Console port
