To inspect and remove your air filter, see Figure 7 and perform the following steps:
Step 1. Loosen the captive screws on the fan tray (Figure 7 item 1).
Step 2. Carefully remove the fan tray from the router chassis and remove the air
filter (Figure 7 item 2) to inspect it and replace it (3HE06340AA), if
necessary.
Step 3. After inspecting and replacing the air filter, replace it in the fan tray so that
the edge of the air filter is flush with the rear of the fan tray.
Step 4. Replace the fan tray and tighten the captive screws.

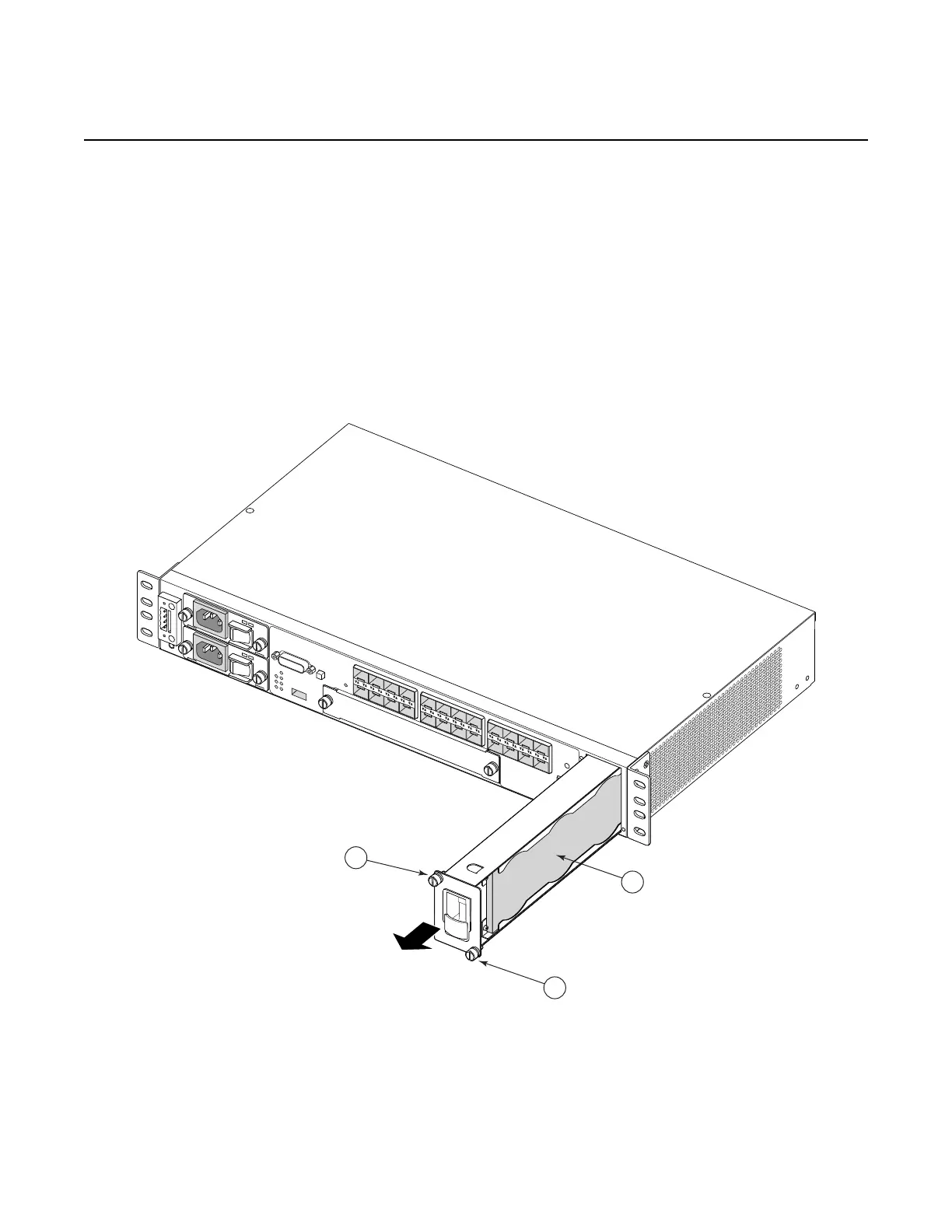

Figure 7 Removing and Replacing the Fan Tray and Air Filter
SR72027
1
1
2
