System Overview
14
7210 SAS-M CHASSIS INSTALLATION GUIDE
3HE 10089 AAAA TQZZA Edition 01 Issue: 07
2.1 7210 SAS-M Introduction and Features
The 7210 SAS-M is a multilayer service-aware MPLS-capable switch. The switch is
available as two variants, as follows:
• 7210 SAS-M 24F with support for up to 24 100/1000 SFP ports; see Figure 1
• 7210 SAS-M 24F 2XFP and 7210 SAS-M 24F 2XFP ETR with support for up
to 24 100/1000 SFP ports and up to two XFP (10G) ports; see Figure 2
The 7210 SAS-M and its variants have one 10/100 Base-Tx management port for
dedicated management access.

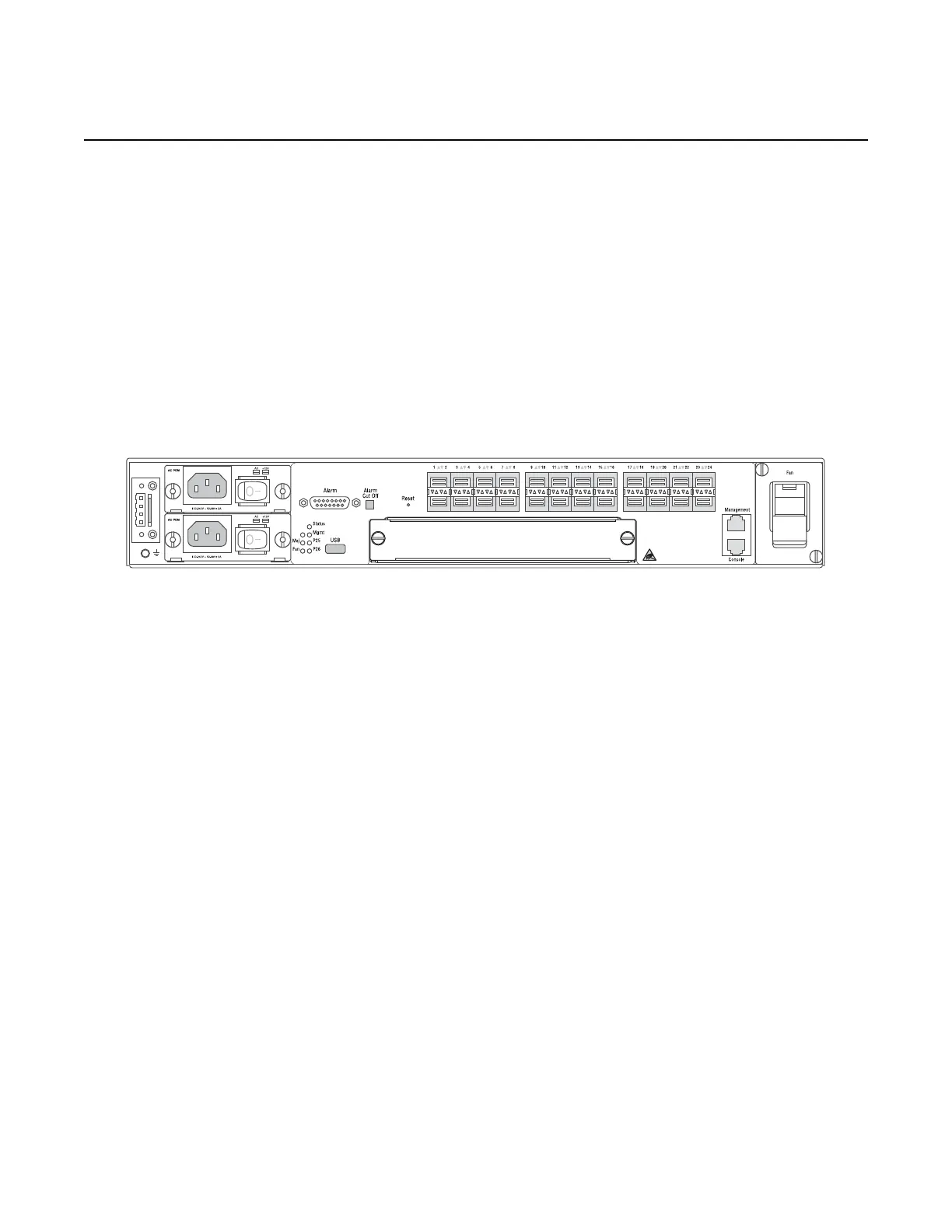

Figure 1 7210 SAS-M 24F Front Panel
The 7210 SAS-M 24F includes the following features:
• 24 100/1000 SFP ports
• one RJ-45 management port for firmware upgrade or system management
• one RJ-45 console (RS-232 interface) connector for device management
• embedded SR OS
• compact size: 1.5 RU height, 19 in. (48.26 cm) rack-mountable metal
enclosure, 10 in. (25.4 cm) depth (ETSI)
