Nordmann DC4 - Page 13

13

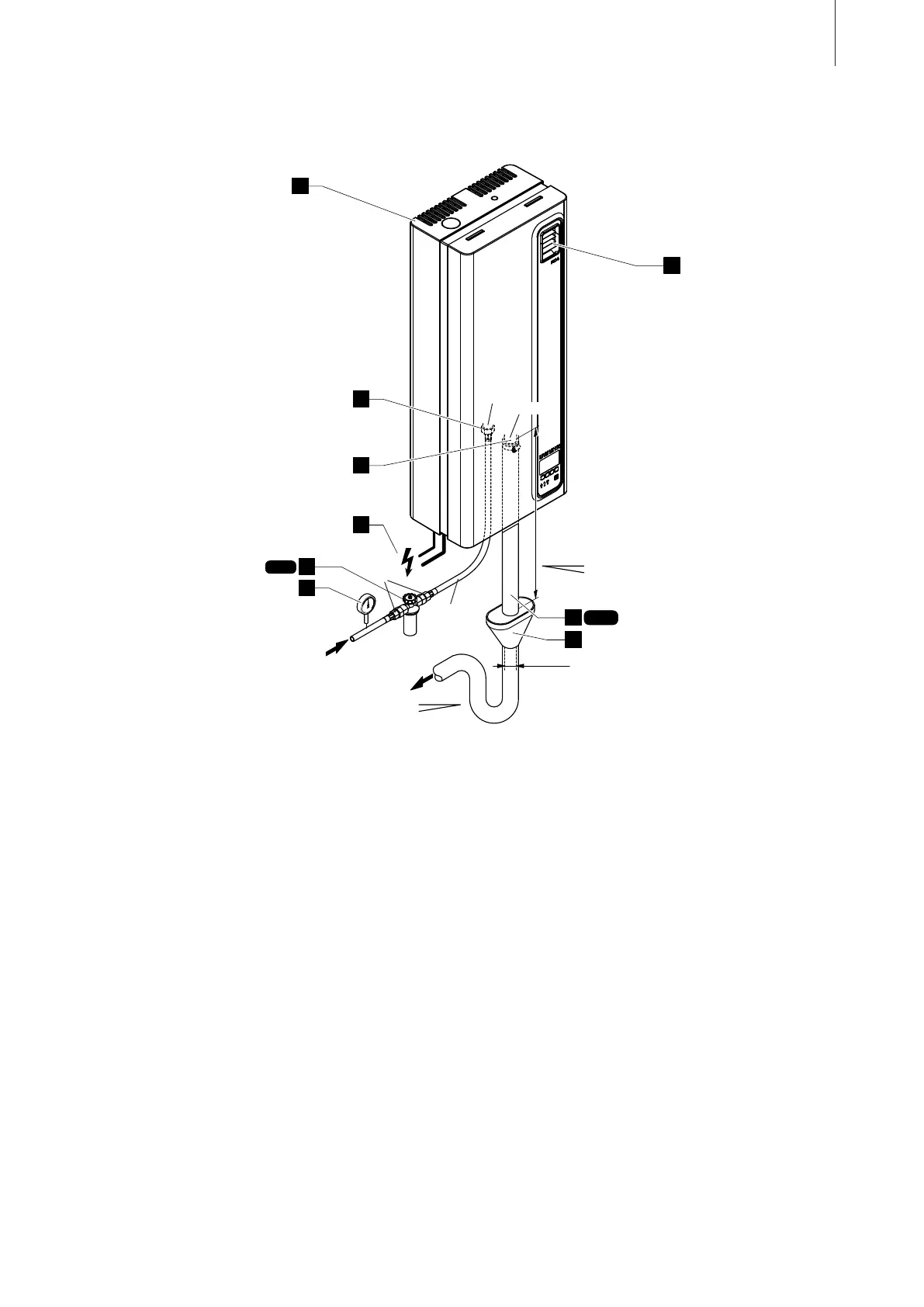

System overview Nordmann RC4
1 Steam humidier
2 Ventilation unit
3 Water supply connector
4 Water drain connector
5 Filter valve (accessory “Z261”)
6 Manometer (installation recommended)
7 Funnel with siphon (building side)
8 Water drain hose (accessory “DS22”)
9 Connecting cables
–
–
DS22
8
7
1
2
3
4
6
Z261
9
5
125...1250µS/cm
1...10 bar
1...40 °C
min. 10 %
min. 10 %
≥ 40 mm
min. 50 cm
ø22 mm
G 3/4"
G 3/8"
ø10/8 mm
