5.3 Removing and installing parts for maintenance
5.3.1 Removal and installation of the steam cylinder

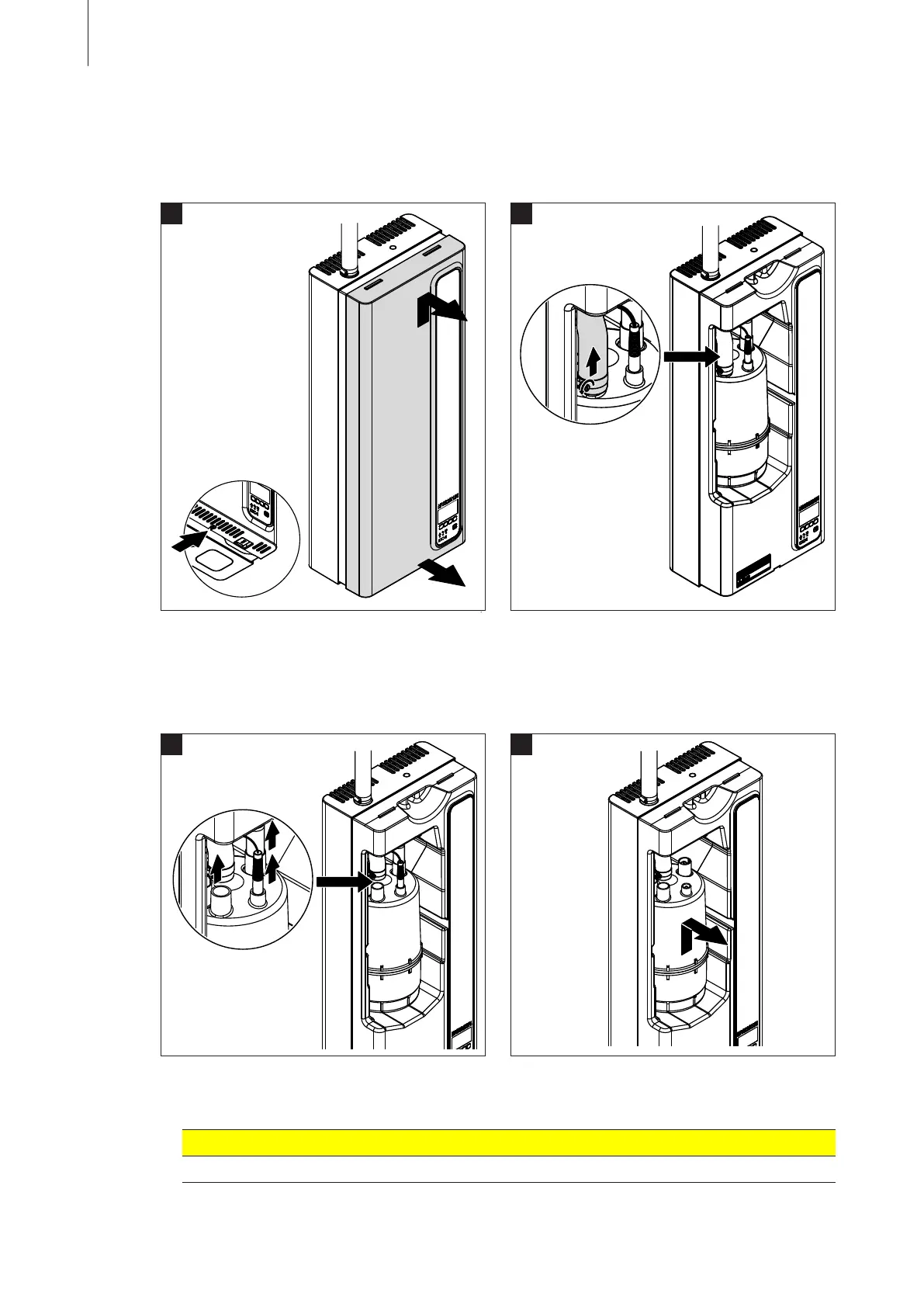

1. Loosen the xing screw of the front cover on the bottom side of the intermediate panel a few turns.
Pull the lower part of the front cover to the front, then push the cover upward and remove it.
2. Release the hose clamp on the steam connector of the steam cylinder, then detach the steam
hose from the steam connector.
1 2
3 4
3. Remove the plugs from the electrodes and from the level sensor.
4. Carefully lift steam cylinder out of the cylinder receptacle, then remove it to the front.
CAUTION!
Put steam cylinder down carefully to avoid damage to the lower connection piece!
