39
Installation of the steam cylinder follows the reverse sequence. Observe the following:
–
Before installing the steam cylinder in the unit, check the O-ring of the cylinder receptacle for
damage and replace if necessary.
– Moisten the O-ring of the cylinder receptacle with water (do not use grease or oil), then insert
steam cylinder into the receptacle and push it down to the stop.

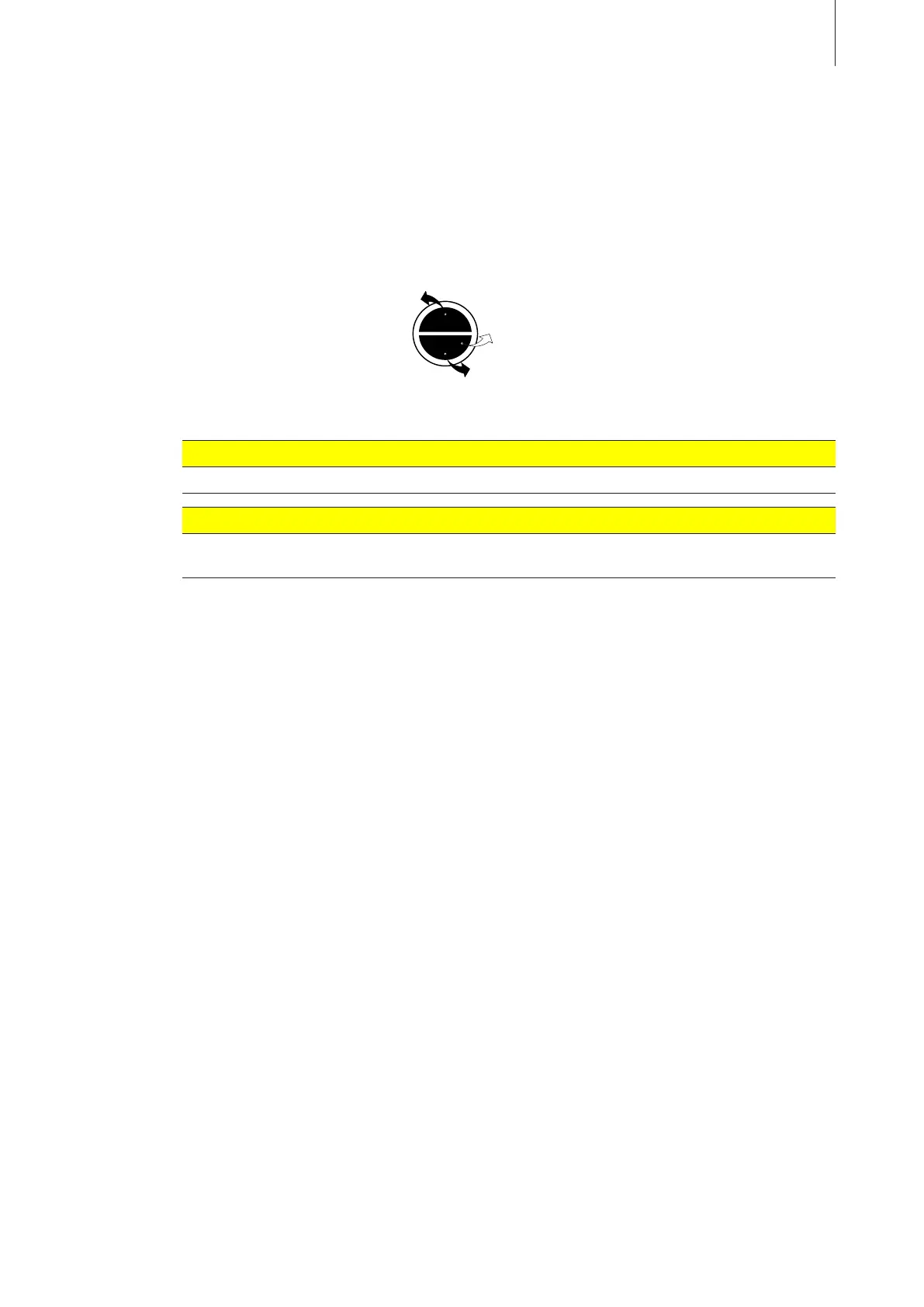

– Attach the electrode plugs and the level sensor plug to the respective electrode and sensor con-
nections according to the colour dots on the steam cylinder (see also following illustration).
– Fasten steam hose on the steam connector of the cylinder with hose clamps.
CAUTION!
A leaky steam hose can cause damage due to moisture inside the unit.
CAUTION!
The outlet connector of the steam cylinder is made of plastic. Do not overtighten the hose
clamp on the steam connector of the steam cylinder.
Sensor white
brown
black
