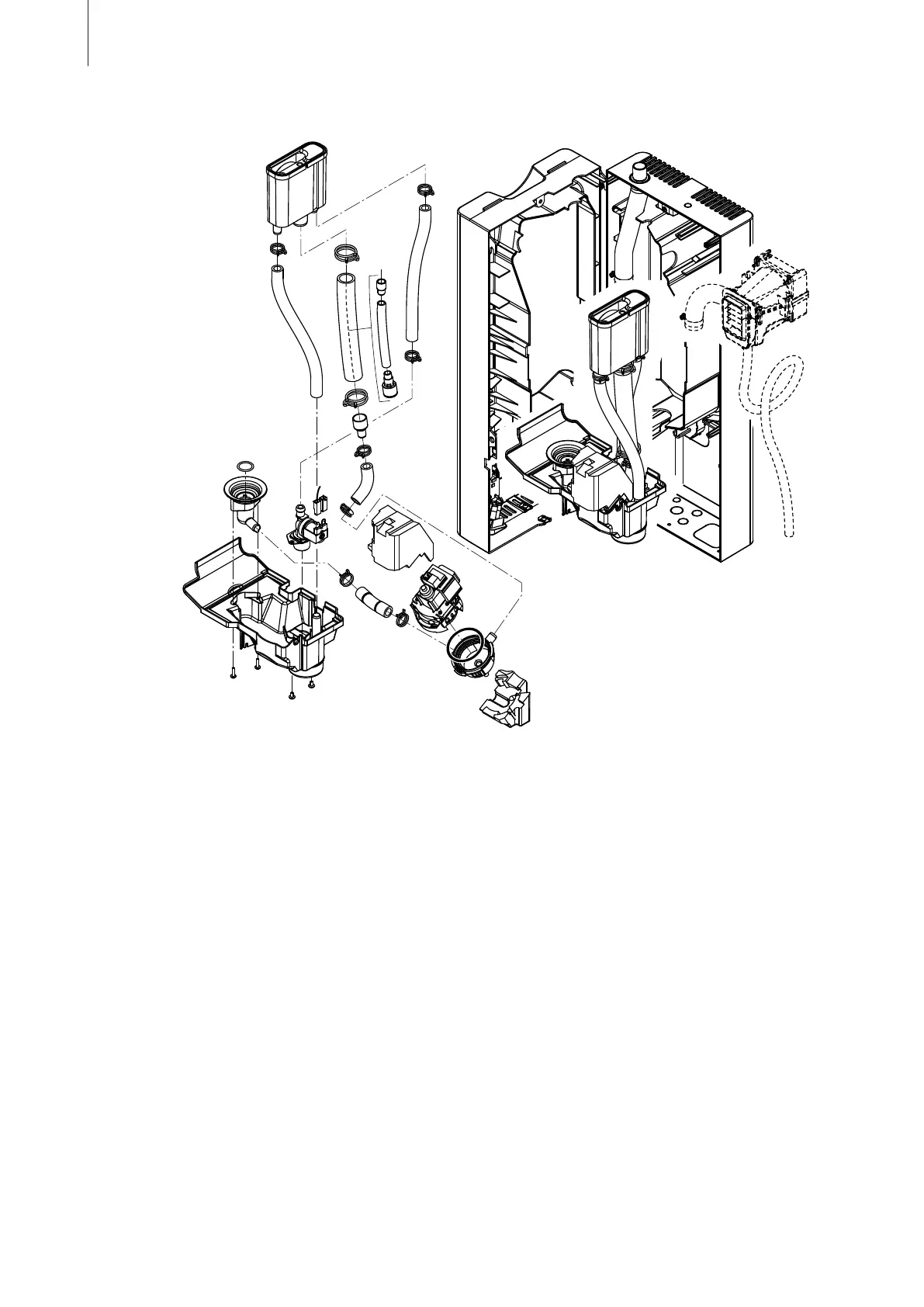

5.3.2 Disassembly and assembly of the components of the water system
To dismount the components of the water system proceed as follows:
1. Dismount the steam cylinder (see chapter 5.3.1).
2. Undo the two screws of the intermediate panel. Then, carefully remove the intermediate panel to
the front, swivel it to the left and hang it onto the pins of the back panel.
3. Undo water supply and water drain pipe.
4. Unit type RC4 only: Disconnect the electric cables, then remove the ventilation unit together with
the steam and condensate hose to the front.
5. Undo the attachment of the at ribbon cable on the tub (rubber band), then pull cable out of the
bracket.
6. Remove connecting cables from drain pump and inlet valve.
7. Release the xing clip of the water cup, then carefully pull out the water cup together with the
hoses and tub to the front. While pulling out the parts disconnect the electric cables from the
drain pump and the inlet valve as well as the ground cable from the corresponding connector in
the water drain.
8. Now, the individual components of the water system can be separated for inspection and clean-
ing.
The installation of the components of the water system follows the reverse sequence. Before xing
the water hoses to the connector using the hose clamps, align the hoses in a way that they are not
twisted. Make sure all electric cables are reconnected correctly.
