Nordmann DC4 - Humidification System Overview

12

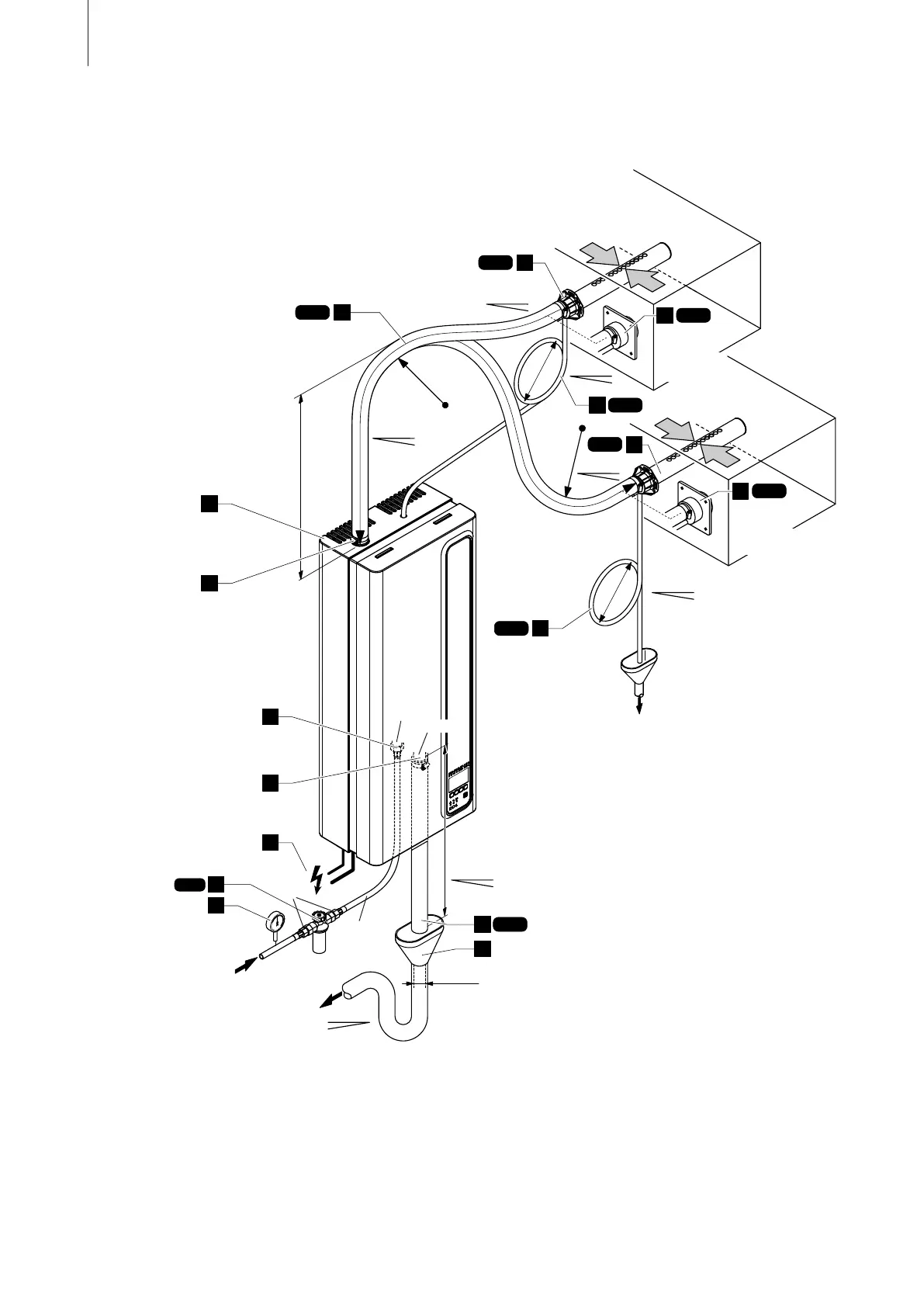

3.5 Humidication system overview
1 Steam humidier
2 Steam connector
3 Water supply connector
4 Water drain connector
5 Filter valve (accessory “Z261”)
6 Manometer (installation recommended)
7 Funnel with siphon (building side)
8 Water drain hose (accessory “DS22”)
9 Connecting cables
10 Steam hose (accessory “DS22”)
11 Condensate hose (accessory “KS10”)
12 Steam distribution pipe (accessory “41-...”)
13 Steam nozzle (accessory “W21”)
System overview Nordmann DC4
DS22
7
–
–
–
–
–
+
–
1
2
4
Z261
9
10
41-..
11
DS22
KS10
KS10
11
12
41-..
12
W21
13
W21
13
8
3
6
5
125...1250µS/cm
1...10 bar
1...40 °C
min. 10 %
min. 10 %
≥ 40 mm
min. 50 cm
ø22 mm
G 3/4"
G 3/8"
ø10/8 mm
min. 300 mm
min. 20 %
min. 10 %
min. 10 %
min. 5 %
min. 5 %
Rmin. 300 mm
Rmin. 300 mm
Ømin. 200 mm
Ømin. 200 mm
Pmax. 800 Pa
Pmin. -800 Pa
Pmax. 800 Pa
Pmin. -800 Pa
